Alpine BBX – T600 (Amplifier)
₹11,999.00

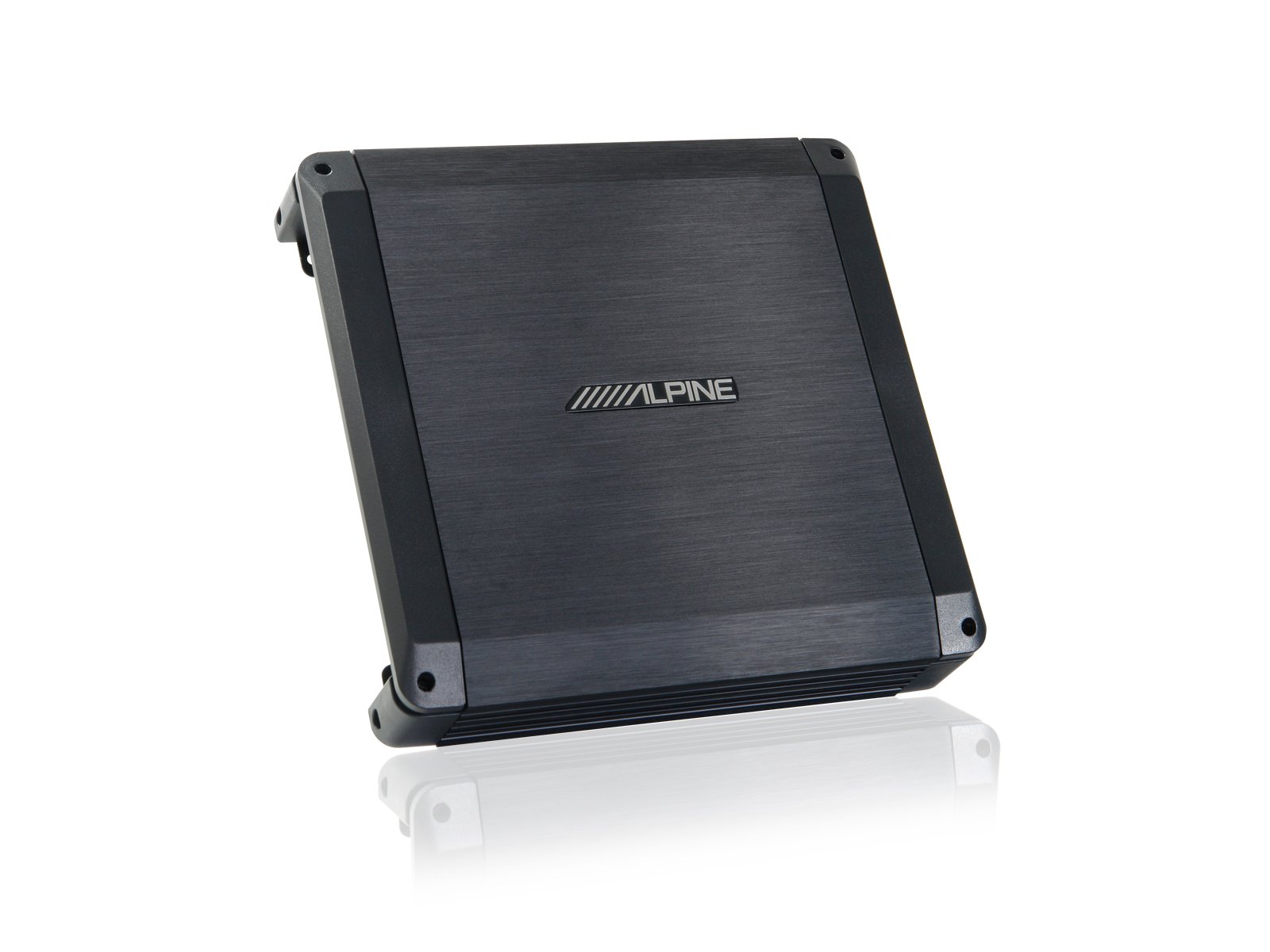

Alpine BBX-T600
2/1-Channel Class A/B Power Amplifier | Compact, Reliable, and Efficient
The Alpine BBX-T600 delivers reliable Class A/B performance in a compact 2/1-channel configuration—perfect for powering your car’s speakers or a dedicated subwoofer with clean, efficient power. Built for easy integration, this amp includes thoughtful design features and robust protection to ensure long-lasting performance.
Installation-Friendly Design
- Dual-Side Terminals: Connections available on both sides for flexible installation
- Secure Screw-Type Cable Fixing: Ensures solid electrical contact and cable retention
- Cable & Screw Clamps Cover: Provides a clean, professional finish
Technical Features
- Amplifier Type: Class A/B
- Channel Configuration: 2/1 Channel (Bridgeable)
- Power Supply Type: DC-DC PWM
- Power Supply Design: High-efficiency MOSFET Power Supply
Advanced Protection Circuitry
- Thermal Management Control
- Over-Current Protection
- Over-Voltage Protection
- Thermal Shutdown Protection
Audio Controls & Crossover
- Variable Low-Pass / High-Pass Filter for precise tuning
- Green/Red Status LED for easy diagnostics
Connectivity
- 1 Pair RCA Pre-Inputs
- 1 Pair RCA Pre-Outputs
Power & Sound tuning
Max Power Output Ratings
Total Max Power: 300W
RMS Power Ratings
- Per Channel into 4ohms (≤1%THD+N): 2 x 50W
- Per Channel into 2ohms (≤1%THD+N): 2 x 70W
- Bridged into 4ohms (≤1%THD+N): 1 x 130W
Sound Tuning
- Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
- 1/2 Ch: LP: 50Hz – 250Hz HP: 80Hz – 1.2kHz
- EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB
Dimensions
Dimensions
250 mm x 52 mm x 240 mm
General
Power Requirements
14.4 V DC (11 V to 16 V)
Input Sensitivity
0.2 – 8.0 V
Frequency Response
5 Hz – 50 kHz (+ 0,-3 dB)
Speaker Impedance
4 or 2 Ω
Signal to Noise
S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
Weight
1.9Kg
