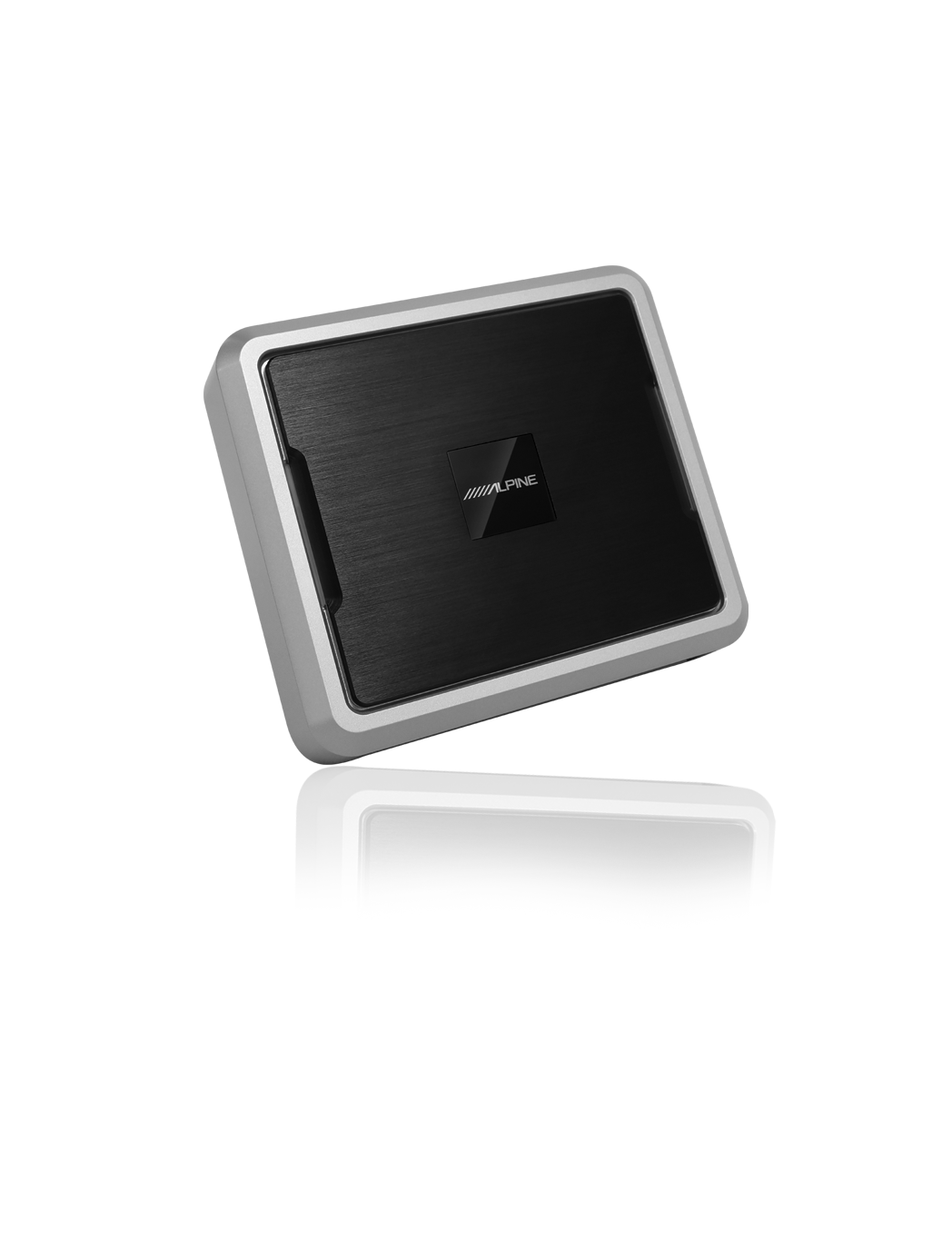

Alpine PXE-0850X (8 – CHANNEL SOUND PROCESSOR)
₹67,899.00
PXE-0850X – 8-Channel High-Performance Sound Processor
The PXE-0850X is an 8-channel sound processor designed for high performance and fast processing speeds. It features a powerful DSP capable of running with transmit and receive clock speeds up to 50MHz, ensuring precise and stable audio timing. Equipped with the advanced PCM3168 audio CODEC chip, it supports high-resolution audio sampling at 192kHz, delivering exceptional sound clarity and fidelity for a premium listening experience.
Description
Advanced Mixing Function and UI Enhancements
The PXE-0850X introduces a sophisticated music and navigation sound mixing feature, allowing users to seamlessly blend audio sources. You can freely adjust the volume ratio between the main and sub audio inputs, offering greater control over your in-car sound experience. The optimized user interface now includes a full-frequency mode, enabling each channel to operate in full-range—an essential upgrade for complex installations in audition rooms or RVs. This significantly reduces configuration time and simplifies channel distribution.
Improved Delay Interface and Wire Control Functions
To further enhance usability, the PXE-0850X now features a dedicated delay interface with a split-screen display and an added delay group function for more efficient tuning. Additionally, the wire control system has been upgraded for improved operational convenience. Users can now easily manage total volume, bass levels, sound source switching, auxiliary input switching, and quick EQ preset changes, making real-time sound adjustments more accessible than ever.
Specification
Frequency & Resolution
Frequency Response
20Hz – 20kHz
Inputs
Input Signals
- 6 High-Level Signal Inputs
- 6-Channel RCA Signal Inputs
- Optical fiber/ Coaxial digital signal input
- Bluetooth signal input
Outputs
Output Power
8 × 25W (Rated Power)
Output Channels
12-channel RCA output
Sound & Tuning
Equalizer
31-Band Parametric EQ
Time Delay
Up to 20ms per channel
Crossover
High-Pass / Low-Pass / Bandpass Crossover
Sound Mixing
Music & navigation sound mixing
Frequency Summing
Input/output frequency summing
Surround Sound
2.0 multichannel surround
Dimensions
Dimensions
210 x 190 x 45 mm
