Audison DSP MAX AF M12.14 bit

Audison AF M12.14 bit DSP Amplifier | 1080W | 14-Channel DSP | 12 x 90W @ 2Ω | Class D Fully Bridgeable

Overview:

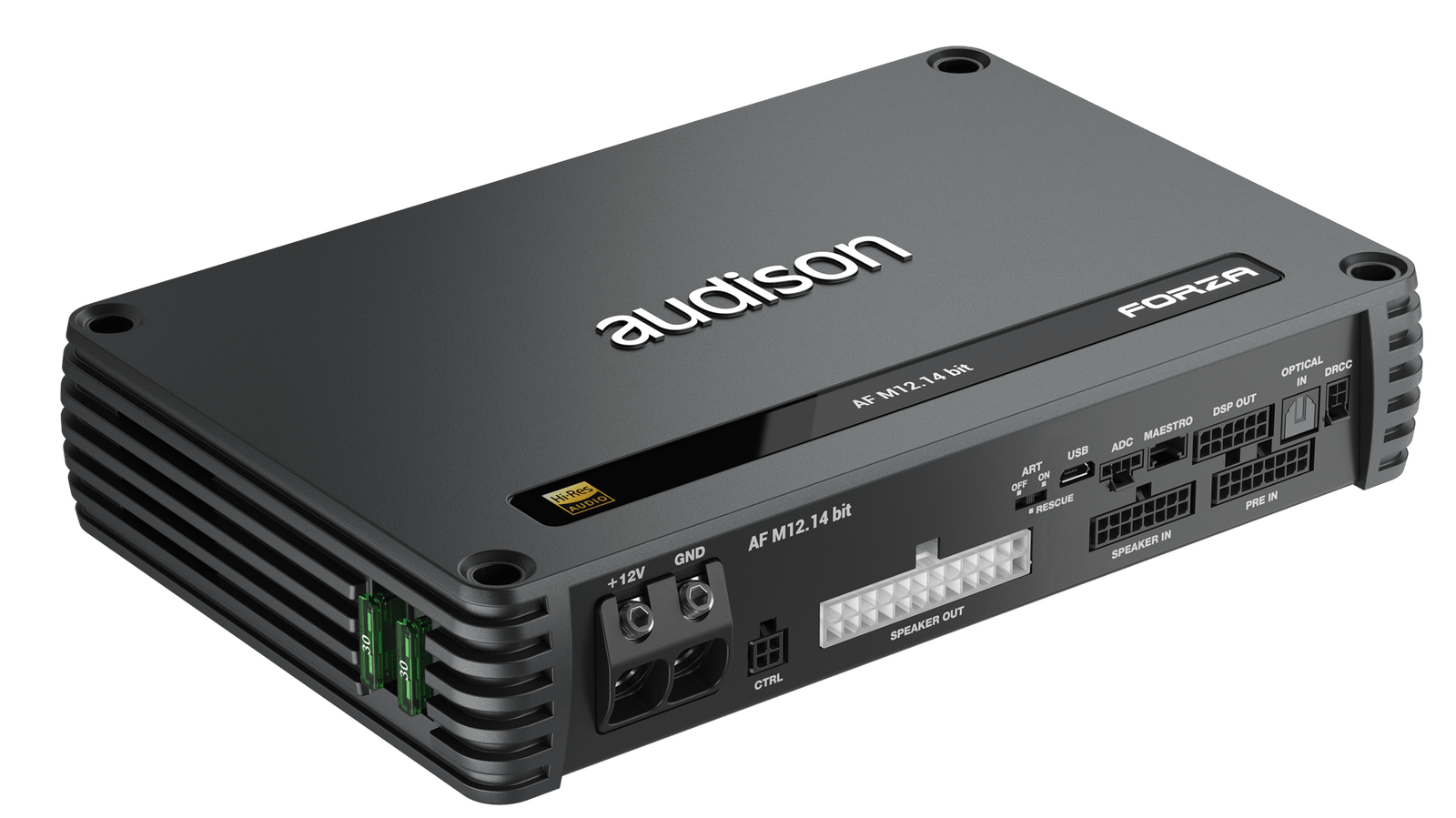

The Audison AF M12.14 bit is a cutting-edge 14-channel DSP amplifier designed to deliver premium Hi-Res audio performance in a compact form. Featuring 12 amplified channels with 90W x 12 @ 2Ω and 60W x 12 @ 4Ω, it leverages the latest Audison D-Class (ADT) technology to produce audiophile-grade sound. With 24-bit/96 kHz native DSP processing, it offers exceptional clarity and fidelity, certified for Hi-Res Audio performance up to 40 kHz.

Bridging channel pairs enables up to 180W x 6 @ 4Ω, giving installers flexible power configurations. The amplifier supports Audison B-CON Absolute Volume functionality, maintaining full dynamic range even via wireless input. All power ratings are RMS @14.4VDC, 1% THD, all channels driven.

Key Features:

• Latest Audison D-Class Technology (ADT): Enhanced audio fidelity with higher switching frequencies, steep filtering, and top-tier components.
• Unmatched Power Density: Industry-leading 0.68 W RMS/cm³, delivering 82% efficiency.
• 14 DSP-Controlled Channels: 12 amplified + 2 pre-outs for seamless system expansion.
• Hi-Res Audio Certification: Native DSP at 24-bit/96 kHz, extending audio response up to 40 kHz.
• Flexible Bridging Options: Bridge channel pairs to increase output power and system design flexibility.
• Comprehensive OEM Integration: 8 high/low-level inputs + optical Toslink input, compatible with complex factory systems.
• Expansion-Ready: Extension slot allows adding 4 analog or 1 digital input.
• Built-in Acoustic & Electrical Signal Analysis: Ensure precise integration and tuning using USB mic and advanced input diagnostics.
• Advanced Signal Routing: Go beyond pre-configured setups with custom routing via the Configuration Wizard.

Exclusive Technologies:

• bit Drive Software Platform: Next-gen control interface simplifies setup and tuning.
• Dual Power Supplies: Separate, optimized regulation for amplifier and DSP sections ensures reliability, even during voltage fluctuations.
• All Channels Driven Design: Full power delivery to all channels simultaneously without compromise.
• Quick I/O Configuration: Accelerates setup and streamlines signal management.
• Audison B-CON Compatibility: Absolute Volume ensures max bit-depth over Bluetooth.
• iDatalink Maestro AR Support: Native integration with OEM infotainment systems.
• OEM Signal Optimization:
  • Automatic summing & reversal of OEM EQ
  • Time delay compensation
  • Phase alignment correction
  • Universal speaker load simulation
• 14 Fully Processed DSP Outputs: Complete control for complex audio setups.

Box Contents:

• USB Cable: For PC connection and DSP configuration.
• AF bit Control Cable: For memory selection and remote power-on functionality.

This amplifier is ideal for high-end car audio installations, OEM system upgrades, and audiophiles demanding hi-resolution, dynamic, and customizable sound in a compact, efficient form factor.
