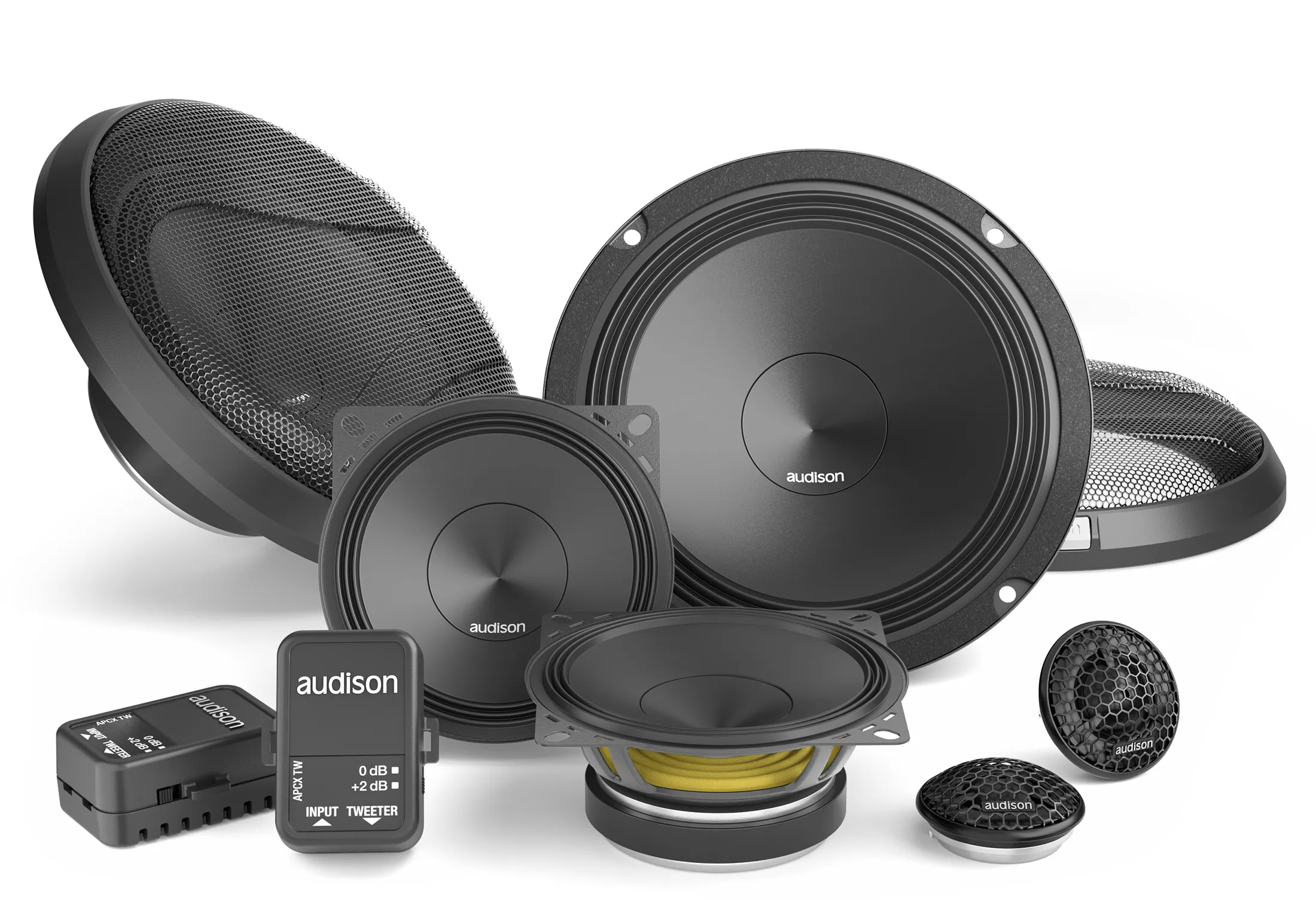

Audison Prima APK 163 Speaker Kit

The Audison Prima APK 163 is a premium 3-way component kit designed to deliver immersive, full-range sound while maintaining seamless OEM integration. It includes the AP 1 tweeter, AP 4 midbass, and AP 6.5 woofer, each paired with a dedicated passive crossover—eliminating the need to run additional cables through vehicle doors and preserving your car’s factory warranty.

From clean highs to articulate mids and punchy lows, the APK 163 is engineered for high-efficiency performance and dynamic range. The use of FEM-optimized cones, Triple Wave TPU surrounds, and pure copper voice coils ensures precise control, linear excursion, and reliable output under all conditions. With compact dimensions, water-repellent cone treatments, and quick-connect terminals, installation is fast, flexible, and hassle-free—even in factory speaker locations.

Key Features

AP 1 Tweeter

• 26 mm diaphragm with wide-roll surround for high efficiency and low resonance.
• Acoustic lens fine-tunes high frequencies (10–13 kHz) to compensate for OEM grille interference.
• APCX TW compact crossover with +2 dB / 0 dB attenuation switch to adapt to placement type.

AP 4 Midbass

• Extended frequency response with high output and clarity.
• Water-repellent paper cone with FEM-designed profile and Klippel-optimized performance.
• Shallow Triple Wave TPU surround for smooth and linear cone movement.
• Compact, coated basket for OEM compatibility and protection.

AP 6.5 Woofer

• 32 mm pure copper voice coil for powerful bass and high power handling.
• Water-repellent treated paper cone, FEM and Klippel optimized.
• Reduced mounting depth and compact, coated basket for easy OEM fitment.
• High-current fast-on terminals with dual contact points and temperature-resistant covers for safe, fast, and flexible connections.

Crossovers (APCX TW, MD, WF)

• Three dedicated, ultra-compact passive crossovers, each optimized for its respective driver.
• Designed for OEM integration, minimizing space requirements and simplifying installation.
• Attenuation switch on tweeter crossover to match various mounting positions and in-car acoustics.
