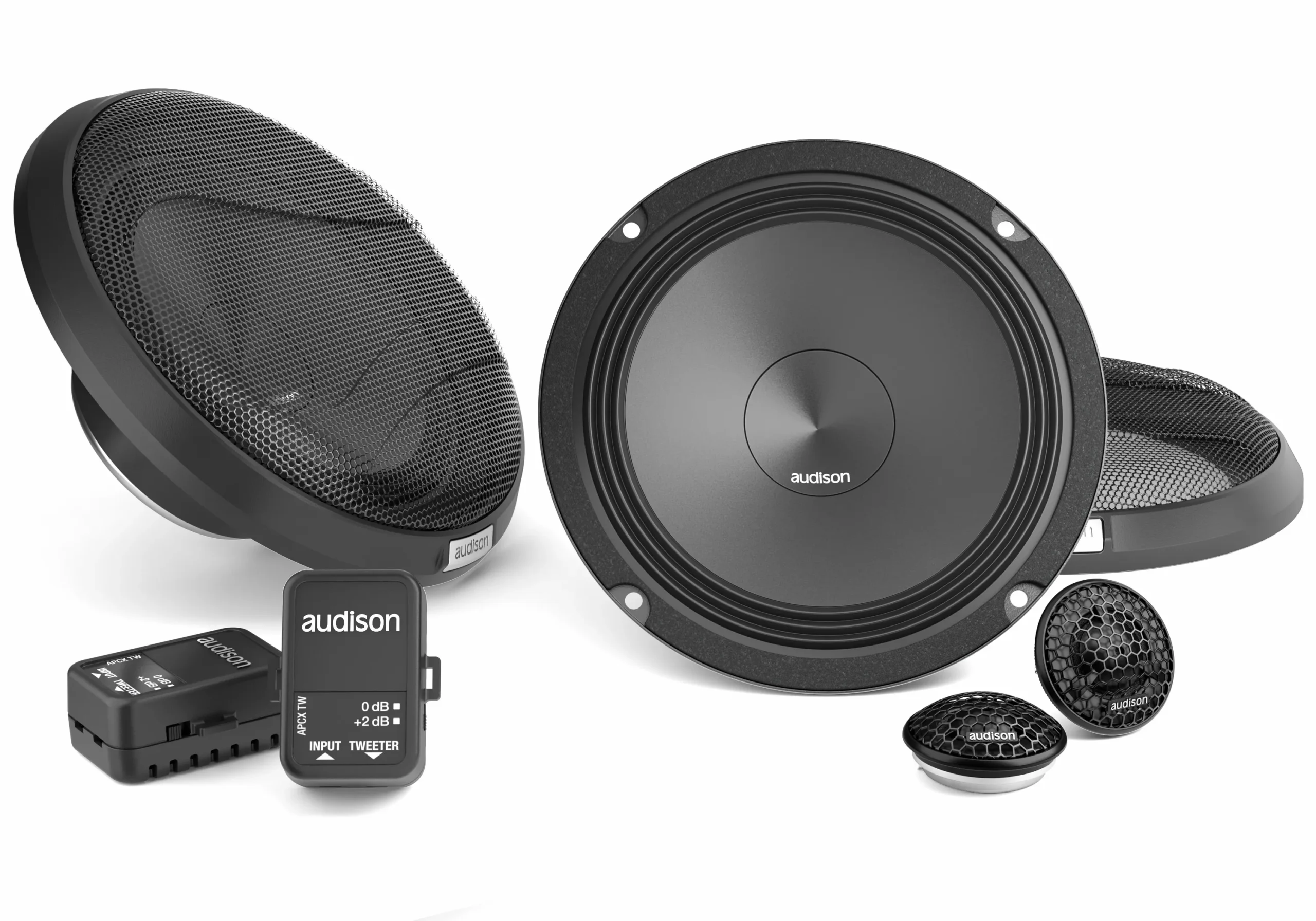

Audison Prima APK 165 Speaker Kit

The Audison Prima APK 165 is a premium 2-way component speaker system tailored for high-quality OEM replacement and upgrade setups. Combining the AP 1 tweeter and AP 6.5 woofer with an APCX TW passive crossover, the system delivers detailed highs and powerful, controlled bass response. Designed with installation versatility in mind, the APK 165 features quick-connect high-current terminals and reduced mounting depth for easy placement in factory locations.

The tweeter’s built-in attenuation switch (+2dB / 0dB) allows for sound optimization based on mounting position—behind OEM grilles or on A-pillars. The woofer, equipped with a water-repellent cone and triple-wave TPU surround, is tuned using advanced FEM and Klippel technology for maximum linearity and tonal accuracy. Every element of the APK 165 is engineered for efficiency, clarity, and OEM-friendly integration.

Key Features

AP 1 Tweeter

• 26 mm diaphragm with wide-roll surround for high efficiency and low resonance.
• Integrated acoustic lens designed to correct frequency response anomalies (10–13 kHz) caused by restrictive OEM grilles.
• APCX TW passive crossover with +2dB / 0dB switch to fine-tune tweeter output based on installation conditions.
• Compact crossover optimized for OEM integration with fast-on terminals for error-free and fast installation.

AP 6.5 Woofer

• 32 mm pure copper voice coil for high power handling and excellent low-frequency control.
• Water-repellent treated paper cone designed using FEM simulation and Klippel Scan Vibrometer analysis.
• Triple Wave TPU surround ensures linear excursion and accurate bass response.
• Shallow mounting depth and abrasion-resistant coated basket for easy OEM installation.
• High-current fast-on terminals with dual-contact design for quick connection and added flexibility.
• Terminals protected by temperature-resistant covers to prevent accidental short circuits.

Design & Engineering

• Developed using the KLIPPEL measurement suite to optimize performance and durability.
• Crossover and driver components tailored for seamless OEM replacement without compromising on sound quality.
