Brax Amplifier GX2000 Silver Short
₹424,999.00

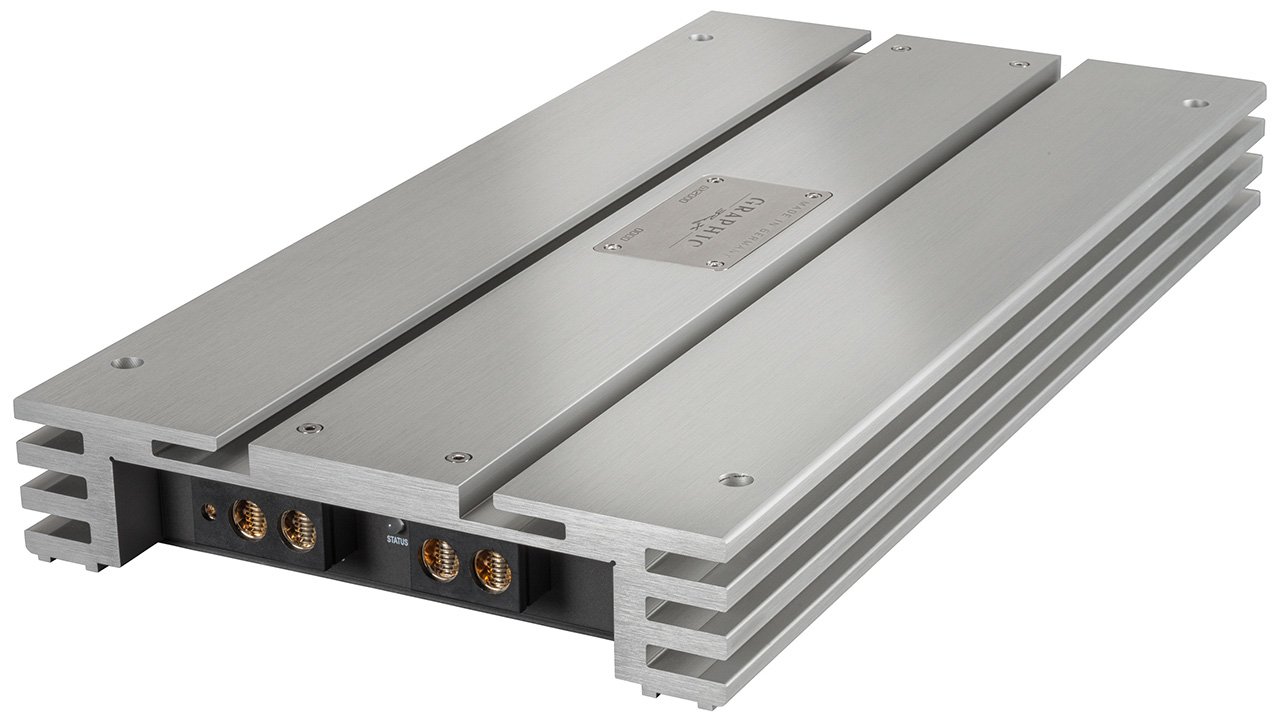

The BRAX GX2000 Silver Short is a premium 2-channel Class AB car amplifier, delivering high-fidelity sound with over 1,000 Watts output potential. With hand-selected MOSFET transistors and meticulous German craftsmanship, it offers exceptional clarity in a compact, elegant silver design.
Description
The BRAX GX2000 Silver Short is the latest evolution of the iconic X2000 amplifier series, designed to set new standards in high-end car audio. Featuring a puristic design and Class AB technology, it ensures precise and natural sound reproduction for discerning audiophiles.
Each amplifier is meticulously crafted with hand-selected MOSFET transistors, high-efficiency transformers, and gold-plated terminals for power and speaker cables up to 50 mm² and 6 mm², respectively. A dedicated terminal allows for a BRAX IPC Capacitor connection, enhancing power supply stability.
Available in black or silver and with short or long heatsink, the GX2000 Silver Short combines elegance with exceptional thermal management, providing a clean design without compromising performance.
Key Features
- Class AB high-end amplifier for flawless sound reproduction
- Handcrafted in Germany ensuring top-notch quality
- Gold-plated terminals for power cables up to 50 mm² and speaker cables up to 6 mm²

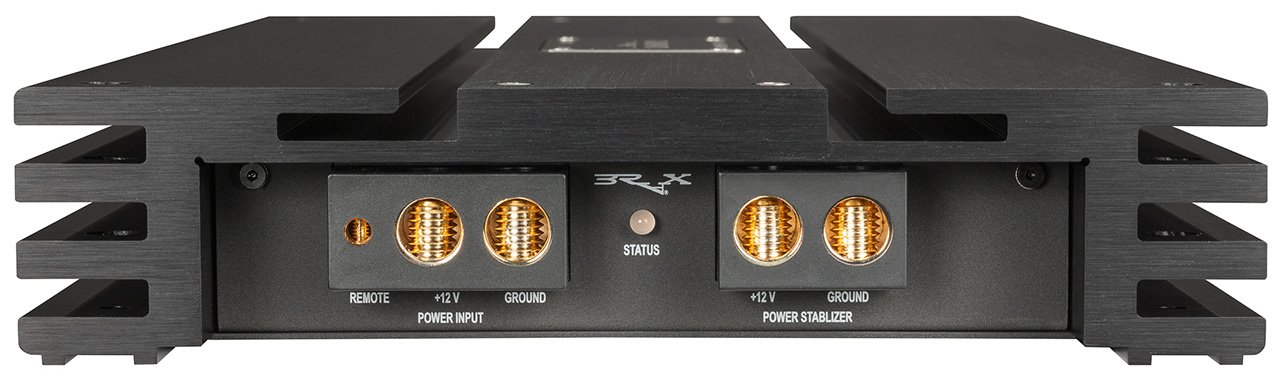

- Separate BRAX IPC terminal for direct capacitor connection
- High-end signal capacitors for pure, distortion-free audio
- Custom high-efficiency transformers delivering more than 1,000 Watts total output
- Solid aluminium alloy heatsink for optimal cooling
- 32 hand-selected MOSFET transistors for brilliant audio performance

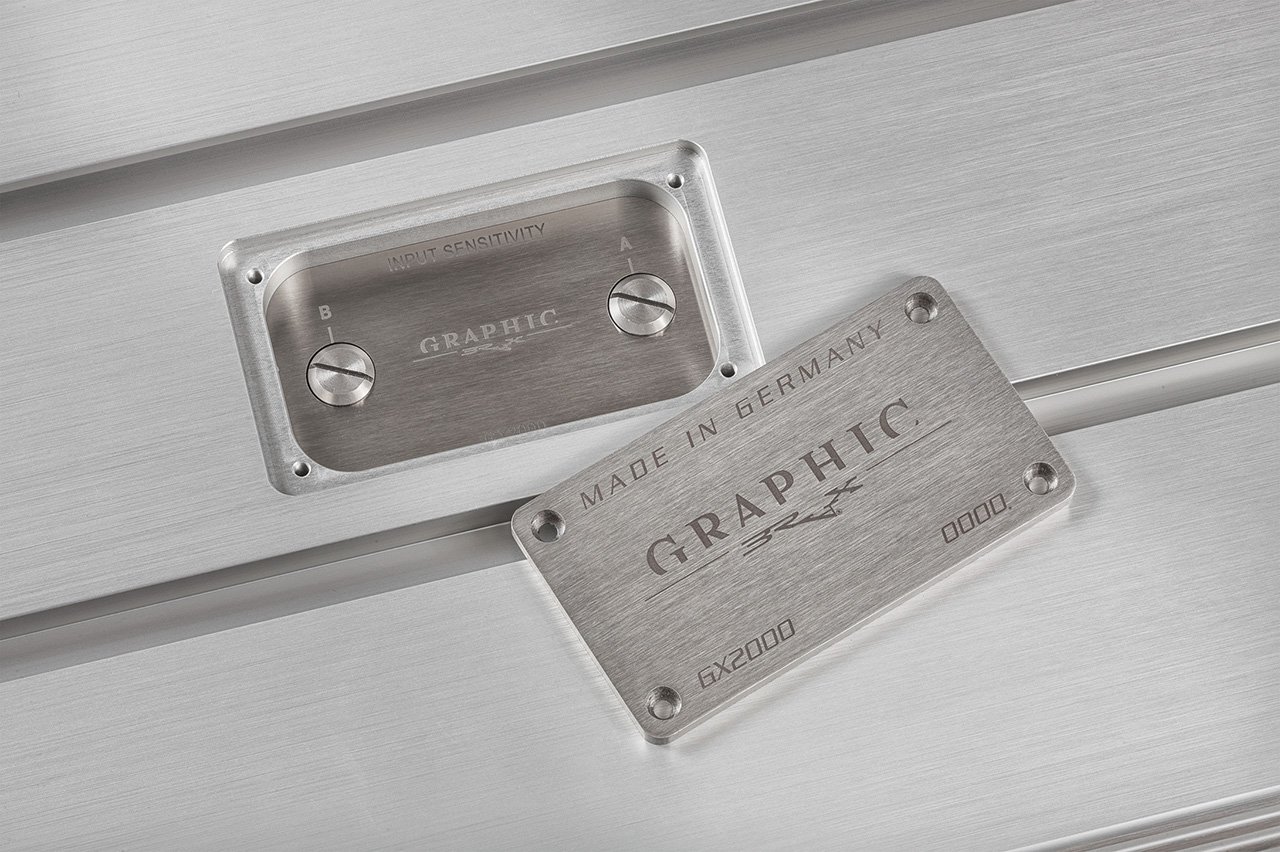

- Input sensitivity adjustment (1.0 V – 8.0 V) placed under the nameplate
- Colour Protection System & Start-Stop capability
- Available in silver finish with short or long heatsink
Specification
| Category | Details |
|---|---|
Inputs | Up to 8 × RCA/Cinch + 8 × highlevel speaker input OR up to 4 × stereo SPDIF (optical/coaxial) 1 × Optical SPDIF (12–96 kHz) 1 × Coaxial SPDIF (12–192 kHz) 1 × Remote In 1 × Remote control input |
| Input Sensitivity | RCA/Cinch: 1–8 VoltsHighlevel: 3.5–30 Volts |
| Outputs | Up to 12 × RCA/Cinch OR up to 6 × stereo SPDIF (optical/coaxial) at 48/96/192 kHz1 × Remote Out1 × SPDIF Link |
| Output Voltage | Adjustable 2 / 4 / 8 Volt RMS |
| Frequency Response | 5 Hz – 80,000 Hz |
| DSP Resolution | 64 Bit |
| DSP Power | 3 × 295 MHz (3.6 billion MAC operations/sec) |
| Sampling Rate | 192 kHz |
| DSP Type | 3 × Audio Signal Processor |
| Signal Converters | A/D: Asahi Kasei AK5572EN 32-Bit D/A: Asahi Kasei AK4490EQ 32-Bit |
| SNR (Digital Input) | 122 dB (A-weighted) |
| SNR (Analog Input) | 116 dB (A-weighted) |
| THD+N (Digital Input) | < 0.0004 % |
| THD+N (Analog Input) | < 0.0006 % |
| IMD (Digital Input) | < 0.0013 % |
| IMD (Analog Input) | < 0.002 % |
| Crosstalk | > 110 dB (1 kHz) |
| Operating Voltage | 10.5–16 Volts (down to 6 Volts for max. 5 sec) |
| Current Draw | 2400 mA |
| Max. Remote Output | 500 mA |
| Operating Temp. Range | –40 °C to +70 °C |
| Additional Features | Modular input/output concept, 2 × BEC Slots, Ground lift switch, 32-Bit CoProcessor, ADEP.3 circuitry, Auto remote switch, DiSAC volume control with BRAX MATRIX MX4 PRO |
| Dimensions (H × W × D) | 310 × 200 × 56 mm (12.21 × 7.87 × 2.21″) |
| Scope of Delivery | 1 × BRAX DSP Silver processor 1 × USB cable 2 × Allen keys |
