Brax Amplifier GX2400 Silver Short

Brand:Brax
In Stock

₹449,999.00

The BRAX GX2400 Silver Short sets new benchmarks in high-end car audio amplification. Handcrafted in Germany, this 4-channel Class AB amplifier delivers precise, natural sound reproduction with exceptional build quality, gold-plated terminals, and an extended silver heatsink for maximum performance and cooling.

Wishlist
Add to Compare
Category:DSP & AmplifiersTag:Brax Amplifier Series Brand: Brax
Share:

Description

With the GX series, BRAX has set a new benchmark in audiophile car amplification. The GX2400 combines puristic aesthetics with state-of-the-art Class AB technology, delivering unmatched clarity and natural sound. Built without unnecessary crossovers or filters, it focuses solely on pure sound quality for the most discerning listeners.

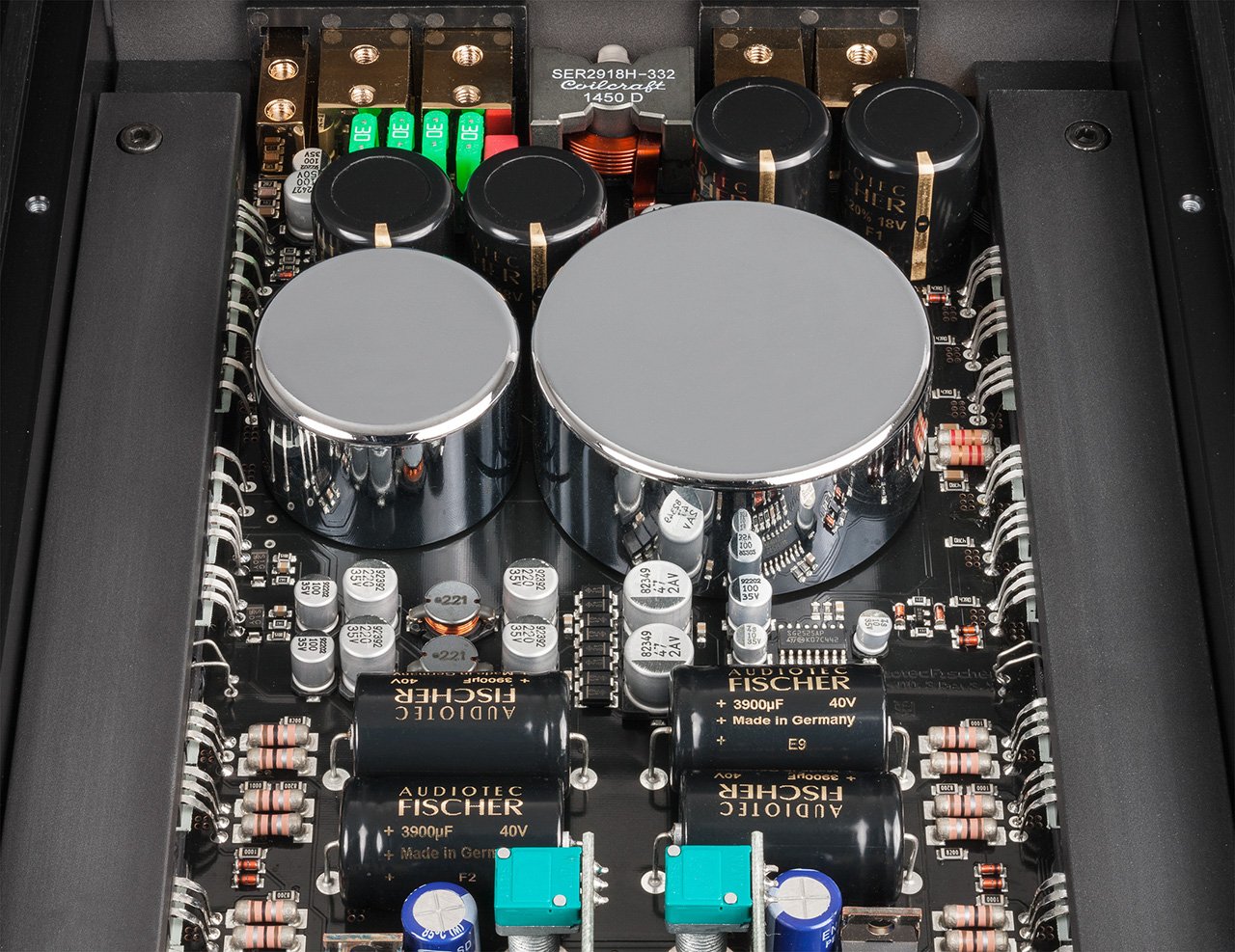

Each amplifier undergoes meticulous transistor matching (over 300 categories tested in-house) to guarantee flawless power delivery without tolerances. The solid gold-plated terminals, hand-selected MOSFET transistors, and special aluminium heatsink ensure both pristine audio and long-lasting reliability.

Available in silver or black finish, with short or long heatsink, the GX2400 blends elegant design with precision engineering.

Key Features

  • Class AB amplifier for natural and precise sound reproduction
  • Handcrafted in Germany with uncompromising quality standards

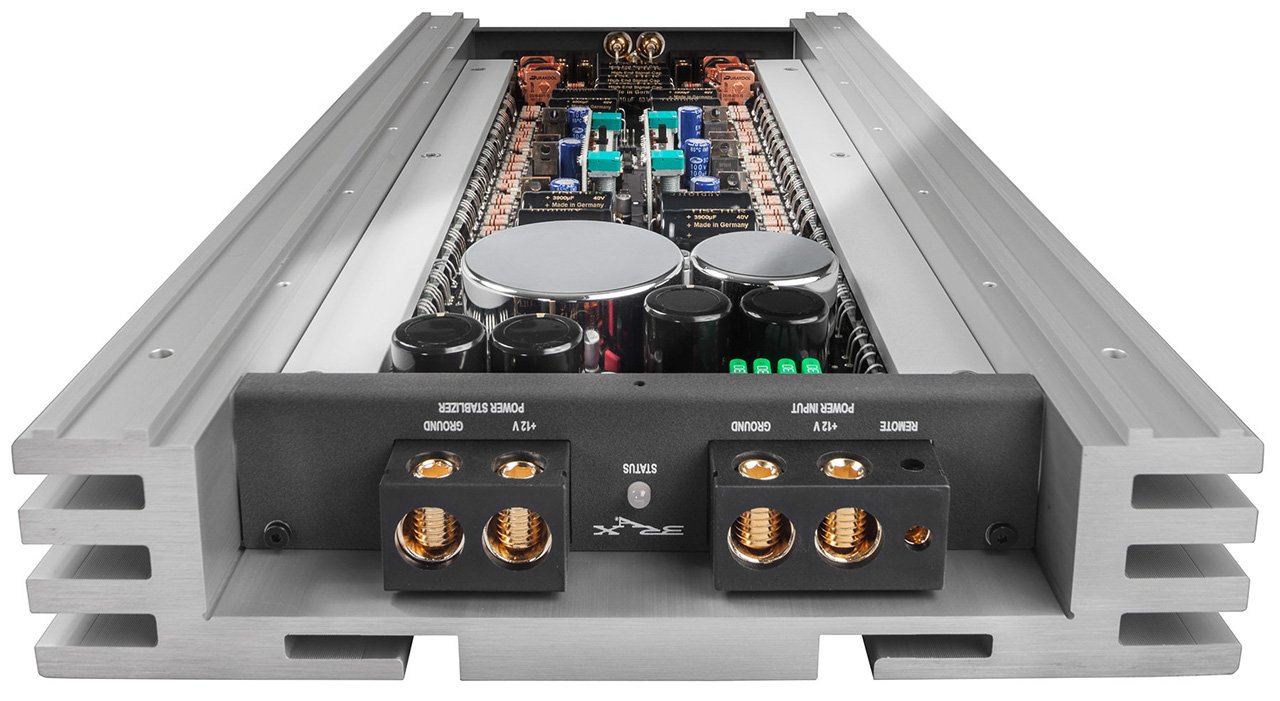

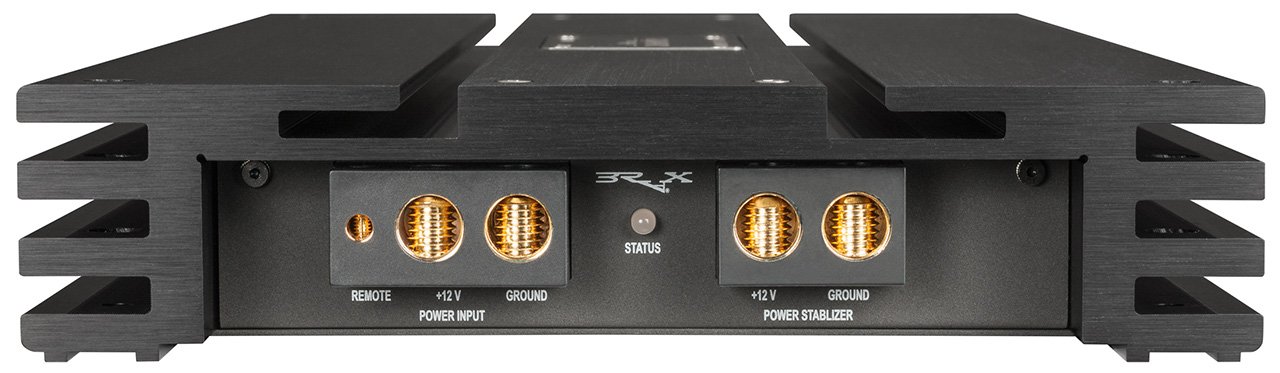

  • Solid gold-plated terminals for power cables up to 50 mm² and speaker cables up to 6 mm²
  • Separate terminal for direct BRAX IPC capacitor connection
  • High-end signal capacitors for clean input signal processing
  • Special aluminium alloy heatsink for efficient cooling
  • 32 hand-selected MOSFET transistors for superior performance
  • Over 1,000 Watts total output power with high-efficiency transformers
  • Adjustment range: 1.0 V to 8.0 V input sensitivity
  • Puristic design with hidden level controls under the nameplate
  • Colour Protection System & Start-Stop capability

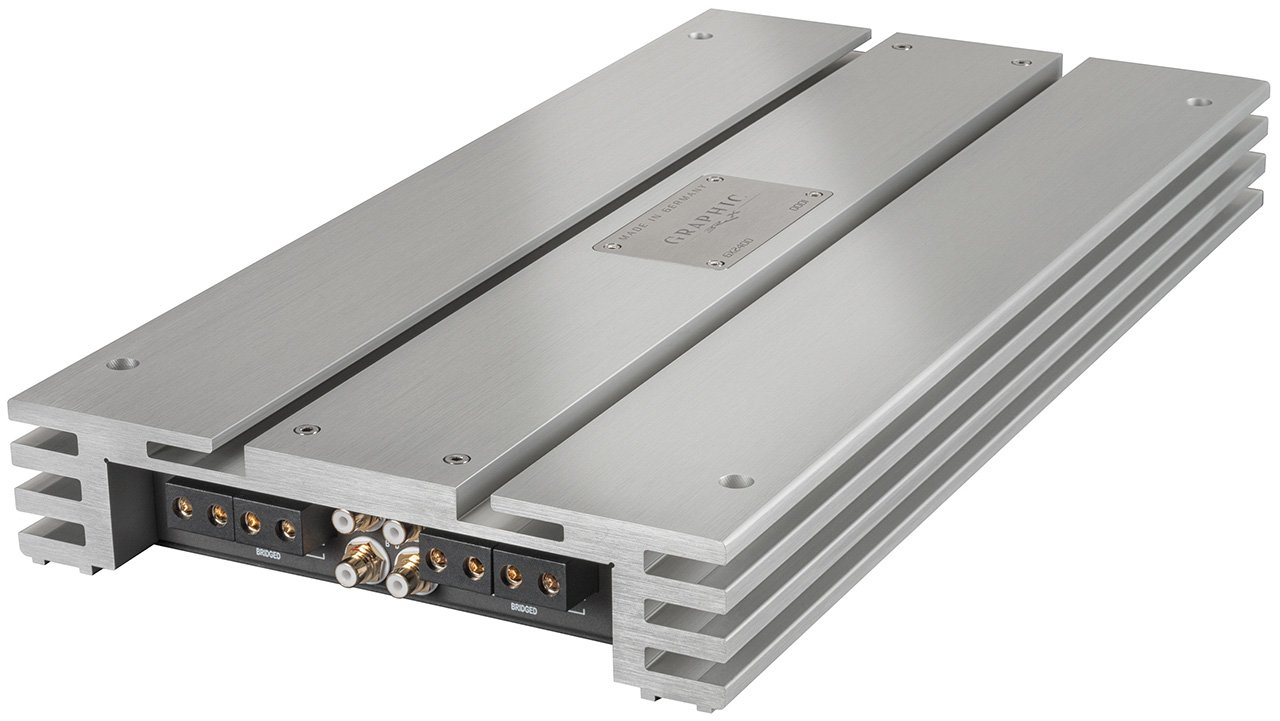

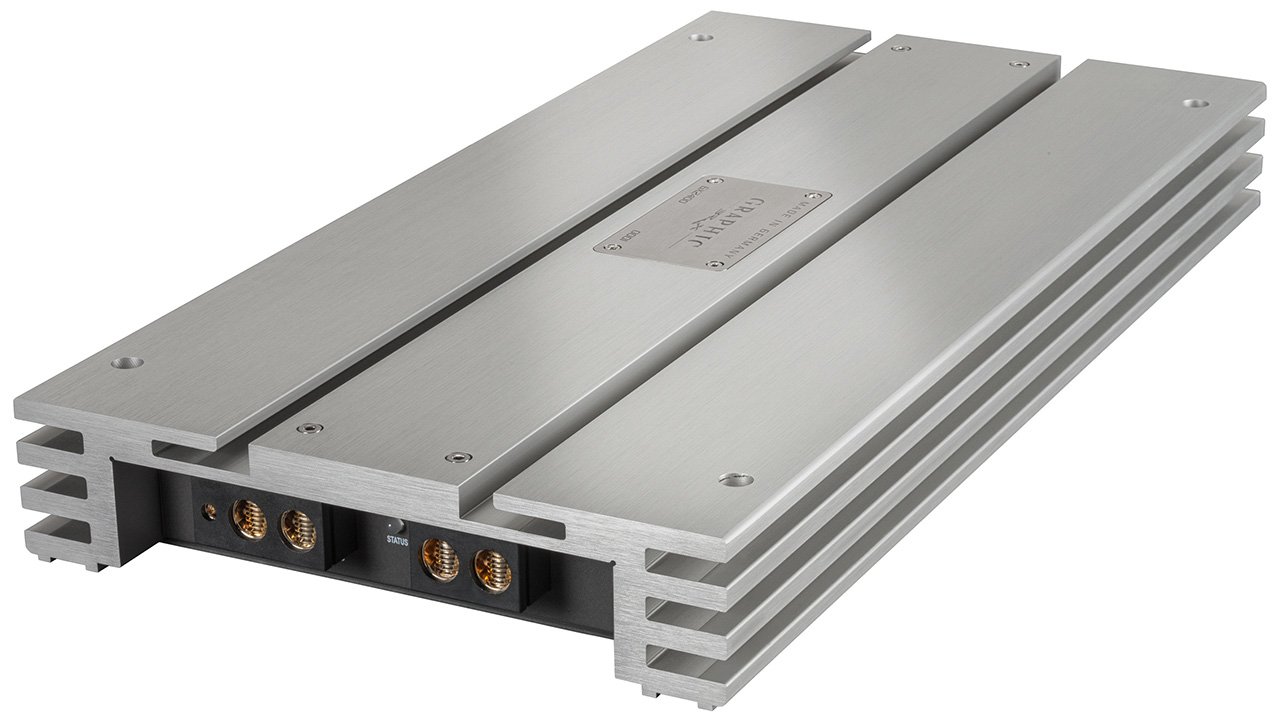

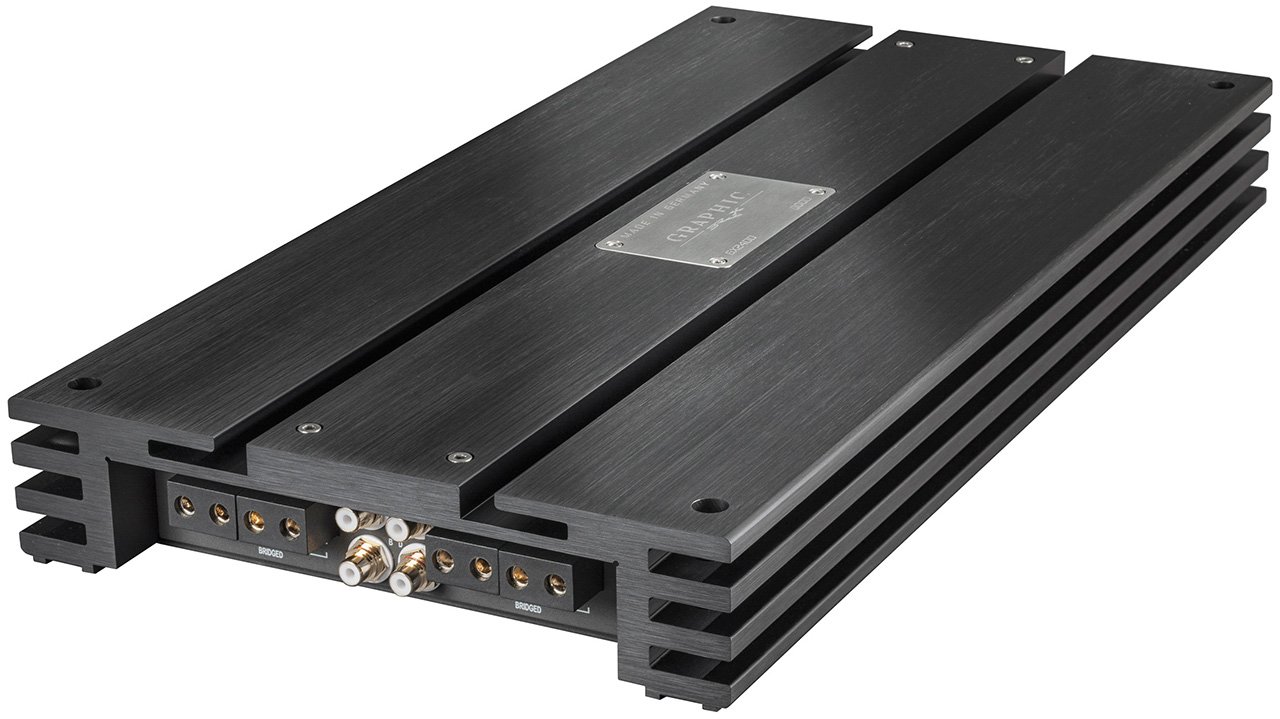

  • Available in black or silver finish, with short or long heatsink

Specification

CategoryDetails
Output Power RMS

@ 4 Ohms: 4 x 150 W

@ 2 Ohms: 4 x 240 W

Bridged @ 4 Ohms: 2 x 480 W

Amplifier TechnologyClass AB
Inputs

4 x RCA/Cinch

1 x Remote In

Input Sensitivity1.0 V – 8.0 V
Input Impedance (RCA)10 kOhms
Outputs4 x Speaker Output
Frequency Response10 Hz – 80 kHz
Signal-to-Noise Ratio (Analog)> 120 dB (A-weighted)
Distortion (THD)< 0.0008 %
Damping Factor> 1000
Operating Voltage9 – 16 V (down to 6 V for max 5 sec)
Idle Current3.5 A
Operating Temperature-40 °C to +70 °C
Fuse4 x 30 A LP-Mini (APS)
Dimensions

Short: 53 x 237.5 x 433 mm

Long: 53 x 237.5 x 473 mm

Net Weight

Short: 8.2 kg

Long: 8.6 kg

Additional FeaturesColour Protection System, BRAX Power Stabilizer Connector, Start-Stop capability
Scope of Delivery

1 x BRAX GX2400 Amplifier

1 x BRAX Graphic T-Shirt

3 x Allen Keys

1 x Instruction Manual
