Brax Graphic GL6 (Loud Speakers Brax Graphic)
₹149,999.00

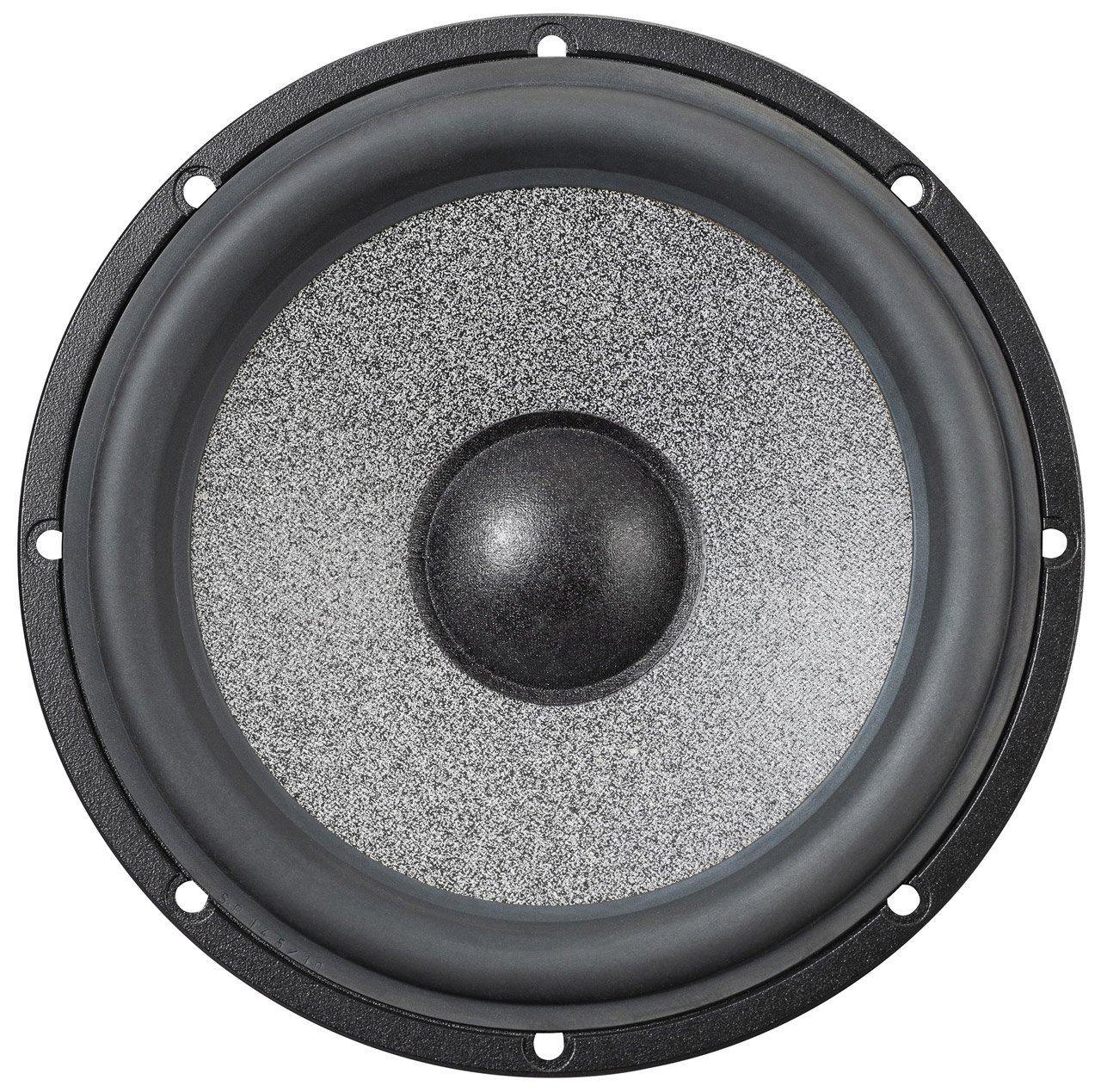

The BRAX GRAPHIC GL6 is a high-end 6.5″ mid-woofer designed for exceptional car audio performance. Its MicroSphere-coated paper cone ensures precise, dynamic, and distortion-free sound, while the rigid aluminum diecast basket and vented magnet system deliver superior efficiency and tonal accuracy. Ideal for pairing with GL1 tweeters and GL3 midrange drivers in three-way systems.
Description
The BRAX GRAPHIC GL6 mid-woofer represents the pinnacle of audiophile car audio engineering. Its patented MicroSphere coating embeds micro ceramic hollow spheres into a polymer layer applied to the lightweight paper cone, providing maximum inner damping, enhanced stability, and flawless sonic definition.
The GL6 also features a special rubber surround for long linear excursion and a hemispherical dustcap for smooth upper midrange response. The aluminum diecast basket houses a powerful and precisely machined magnet system, ensuring high efficiency and linear magnetic flux, while the 24-carat gold-plated terminals minimize contact resistance. A protective magnet cover with BRAX logo completes the high-end design.
Like all BRAX speakers, each GL6 mid-woofer is individually serialized and delivered in a luxurious wooden box, emphasizing both craftsmanship and premium quality. Perfect for three-way active systems with GL1 tweeters and GL3 midrange drivers, the GL6 guarantees an immersive and dynamic audio experience.
Key Features
- Very stiff, lightweight paper cone with patented MicroSphere coating for impulse-perfect response
- Special rubber surround for long linear excursion
- Hemispherical dustcap for smooth upper midrange response

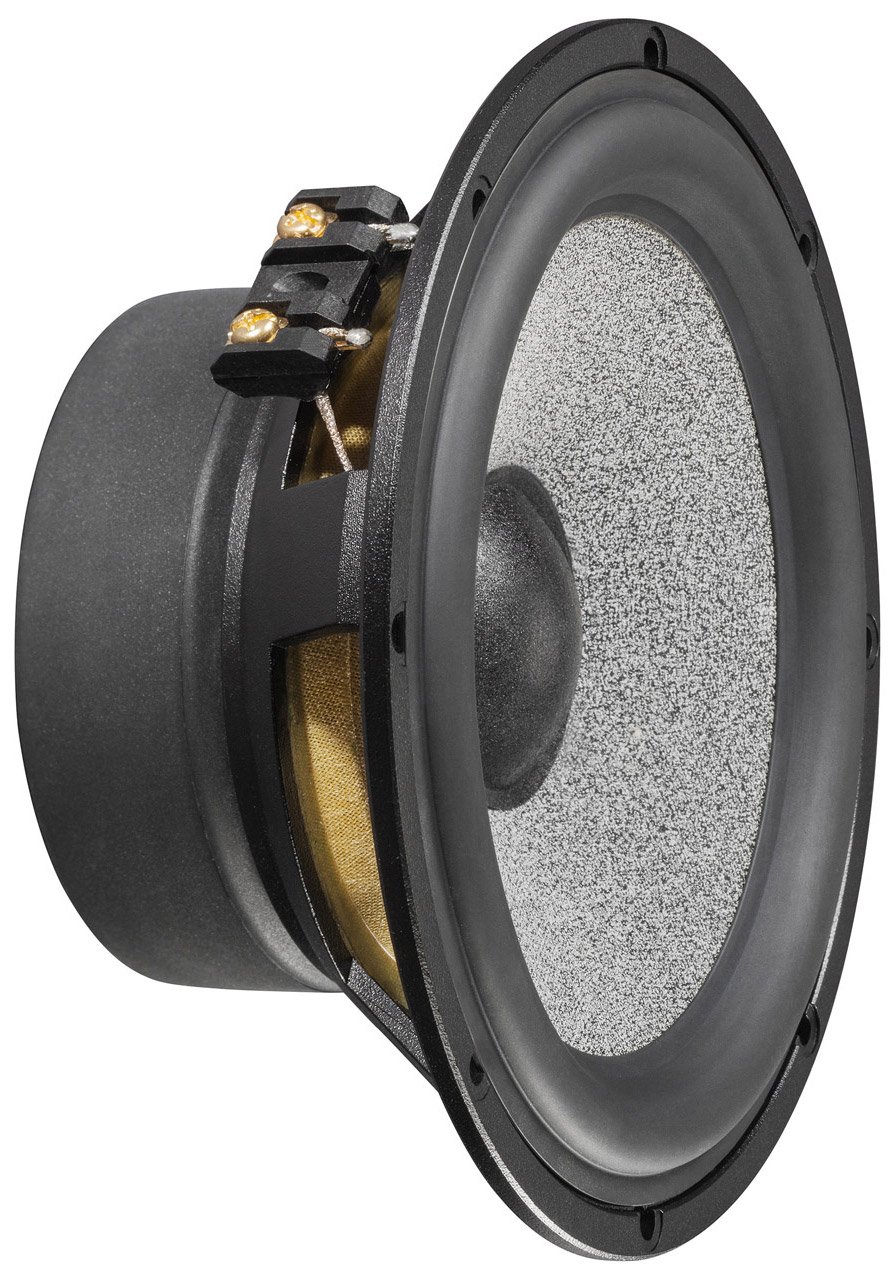

- Extremely rigid aluminum diecast basket
- Powerful, precisely machined magnet system for high efficiency and flux linearity
- Large pole-piece ventilation hole reduces compression effects
- 24-carat gold-plated screw terminals for minimal contact resistance

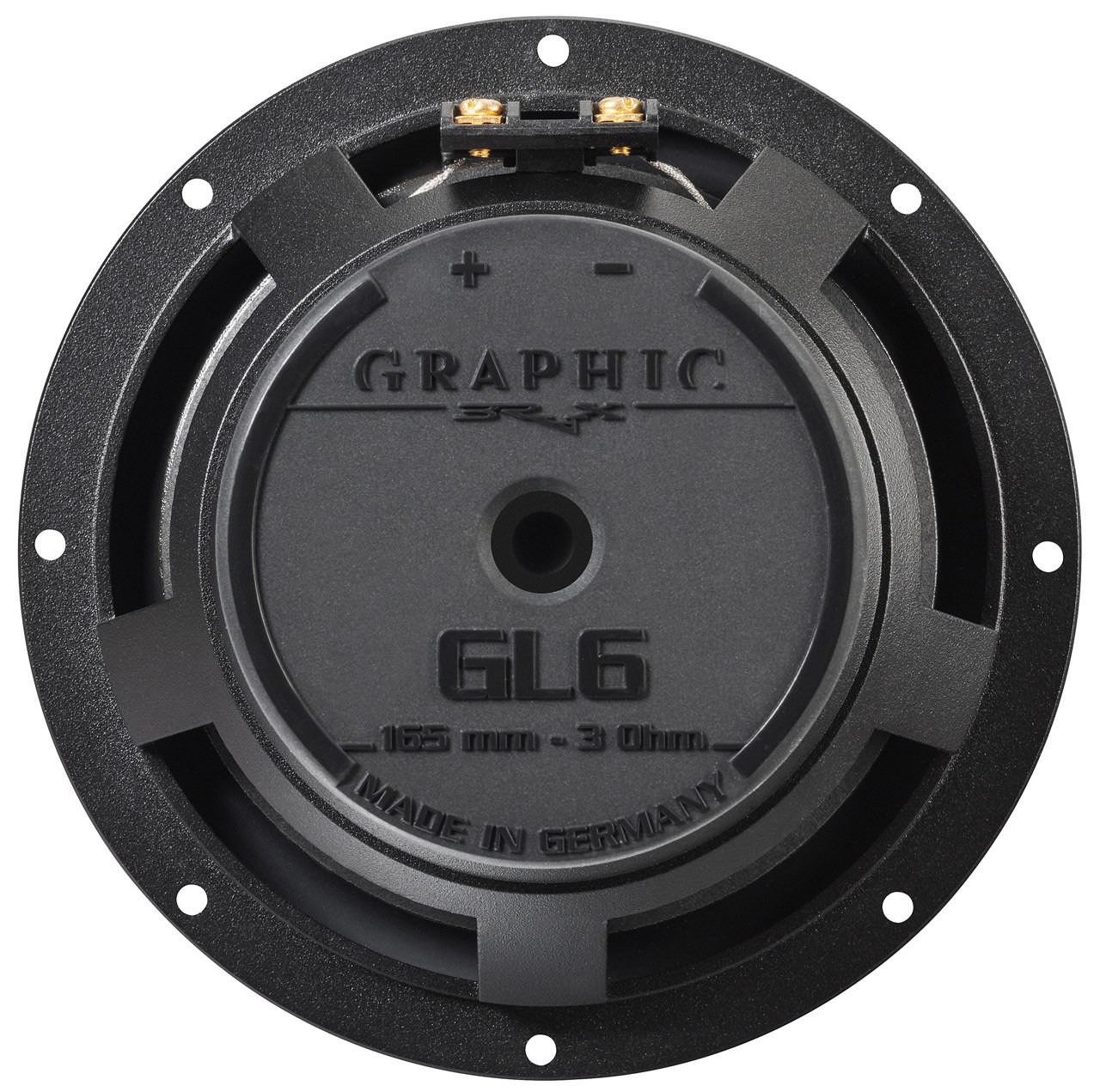

- Protective magnet cover with BRAX logo
- Individually serialized for premium quality assurance
Scope of Delivery
- 2 x High-End Woofer BRAX GRAPHIC GL6
- 1 x Data Sheet
Specification
| Specification | Details |
|---|---|
| Power RMS / Max | 100 / 150 W |
| Impedance (Z) | 3 Ω |
| DC Resistance (Re) | 3.0 Ω |
| Frequency Response | 40 – 4,000 Hz |
| Resonance Frequency (Fs) | 52 Hz |
| Mechanical Q (Qms) | 6.00 |
| Electrical Q (Qes) | 0.57 |
| Total Q (Qts) | 0.52 |
| Compliance (Cms) | 603 μm/N |
| Equivalent Air Volume (Vas) | 16.3 L |
| Force Factor (B*I) | 5.2 Tm |
| Efficiency (1 W / 1 m) | 88 dB SPL |
| Cone Area (Sd) | 139 cm² |
| Moving Mass (Mms) | 15.3 g |
| Cone Material | Paper cone with MicroSphere coating |
| Mechanical Resistance (Rms) | 0.84 kg/s |
| Voice Coil Diameter | 37 mm |
| Voice Coil Winding Height | 14 mm |
| Max Linear Excursion (Xmax) | ±4.0 mm |
| Outer Diameter | 166 mm / 6.5″ |
| Installation Diameter | 142 mm / 5.6″ |
| Installation Depth | 68.2 mm / 2.7″ |
| Enclosure Type | Net Volume | Port / Details | Lower Limiting Frequency (-3dB) |
|---|---|---|---|
| Sealed Box | 8 L | – | 69 Hz |
| Vented Box | 15 L | Port Ø 60 mm, Area 28 cm², Length 19 cm | 48 Hz |
| Port Tuning Frequency (Fb) | – | 45 Hz | – |
