Brax Matrix ML6D (Loud Speakers Brax Matrix)
₹237,499.00
The BRAX MATRIX ML6D is a premium 6.5” / 165 mm mid-woofer engineered for precise and dynamic low-frequency reproduction. Featuring a patented MicroSphere-coated paper cone, this woofer delivers exceptional stiffness, inner damping, and impulse response, ensuring accurate and powerful bass for high-fidelity car audio systems.
Description
The BRAX MATRIX ML6D mid-woofer embodies the high-end German engineering and uncompromising audio philosophy of BRAX. Its MicroSphere-coated cone embeds 75 µm ceramic hollow spheres in a polymer layer, increasing stiffness and damping while maintaining low moving mass. This allows the ML6D to produce dynamic, precise, and natural bass without coloration.
The hemispherical dust cap optimizes upper midrange response, and the special rubber surround allows long linear excursion for enhanced low-frequency reproduction. The aerodynamically optimized diecast basket ensures efficient voice coil ventilation, while the precisely machined magnet system guarantees linear magnetic flux and minimal distortion.
As with all BRAX MATRIX speakers, each set is hand-selected, paired, and serialized for consistent acoustic performance. Optional stainless steel mounting ring set with grille (MR6) is available for flexible installation. Packaged in an exclusive wooden box, the ML6D completes any audiophile-grade car audio system.
Key Features
- Lightweight paper cone with patented MicroSphere coating for precise and dynamic low-frequency response
- Hemispherical dust cap for optimized upper midrange frequency
- Special rubber surround for long linear excursion
- 24-carat gold-plated terminals for maximum conductivity
- Aerodynamically shaped aluminum diecast basket for efficient voice coil ventilation
- Ultra-precise magnet system for linear magnetic flux and minimal distortion

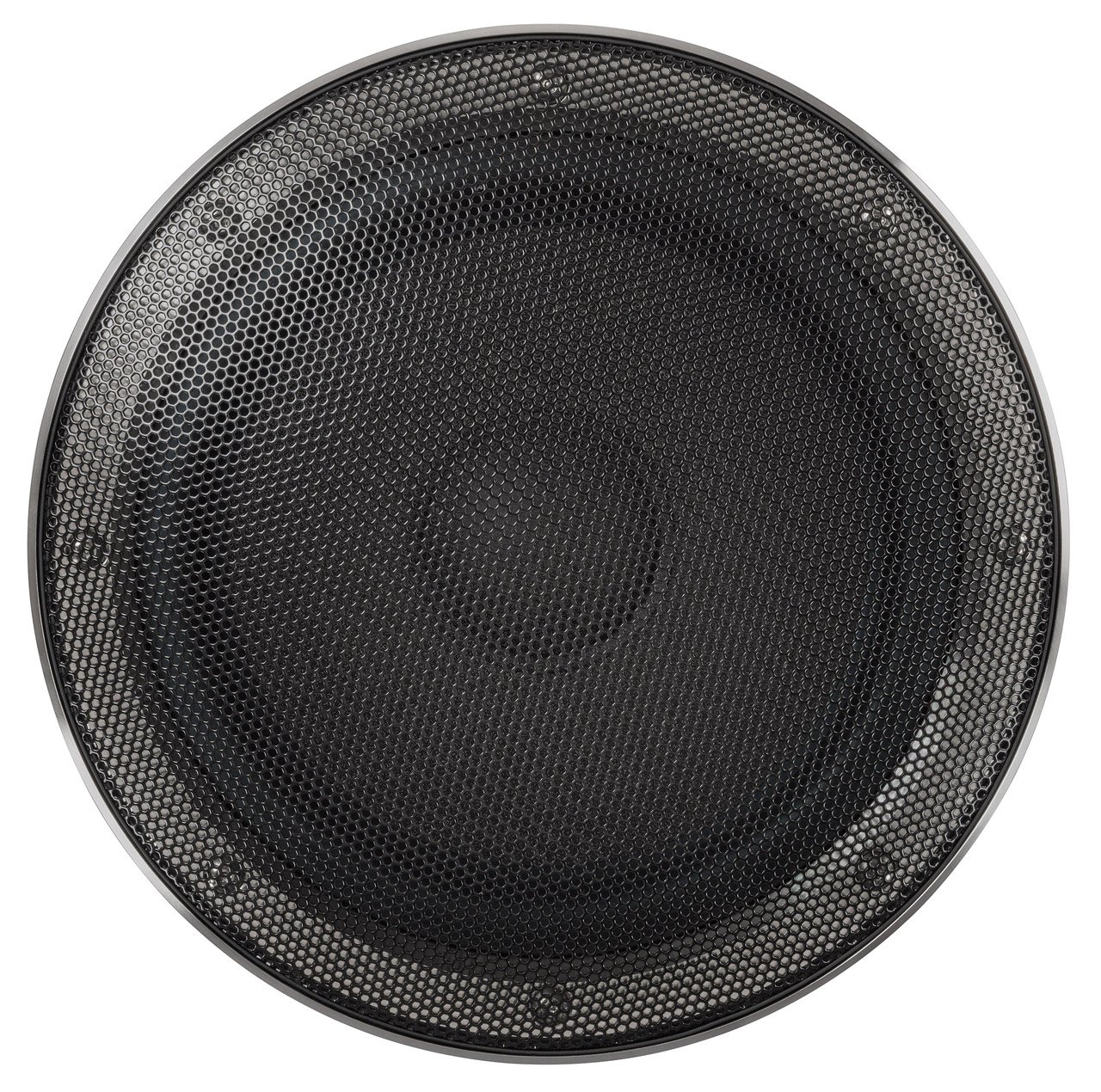

- Optional MR6 stainless steel mounting ring with grille available
- Packaged in premium wooden box
Scope of Delivery
- 2 x High-End Woofer BRAX MATRIX ML6D
- 1 x Drill
- 1 x High-Quality Screwdriver
- 1 x Set of Stainless Steel Screws
- 1 x Certificate
- 1 x Data Sheet
Specification
| Specification | Details |
|---|---|
| Power RMS / Max | 120 / 170 W |
| Impedance (Z) | 4 Ω |
| DC Resistance (Re) | 3.6 Ω |
| Frequency Response | 40 – 4,000 Hz |
| Resonance Frequency (Fs) | 49 Hz |
| Mechanical Q (Qms) | 6.75 |
| Electrical Q (Qes) | 0.58 |
| Total Q (Qts) | 0.54 |
| Compliance (Cms) | 644 μm/N |
| Equivalent Air Volume (Vas) | 16.8 L |
| Force Factor (B*I) | 5.6 Tm |
| Efficiency (1 W / 1 m) | 88 dB SPL |
| Cone Area (Sd) | 137 cm² |
| Moving Mass (Mms) | 16.1 g |
| Cone Material | Paper cone with MicroSphere coating |
| Mechanical Resistance (Rms) | 0.74 kg/s |
| Voice Coil Diameter | 37 mm / 1.5″ |
| Voice Coil Height | 14 mm / 0.6″ |
| Max Linear Excursion (Xmax) | ±4.0 mm |
| Outer Diameter | 167 mm / 6.5″ |
| Installation Diameter | 143 mm / 5.6″ |
| Installation Depth | 64 mm / 2.5″ |
| Type | Net Volume | Lower Limiting Frequency (-3 dB) |
|---|---|---|
| Sealed Box | 8 L | 68 Hz |
| Vented Box | 15 L | 48 Hz |
| Port Diameter | 60 mm / 2.4″ | — |
| Port Area | 28 cm² | — |
| Port Length | 19 cm / 7.5″ | — |
| Port Tuning Frequency (Fb) | 45 Hz | — |
