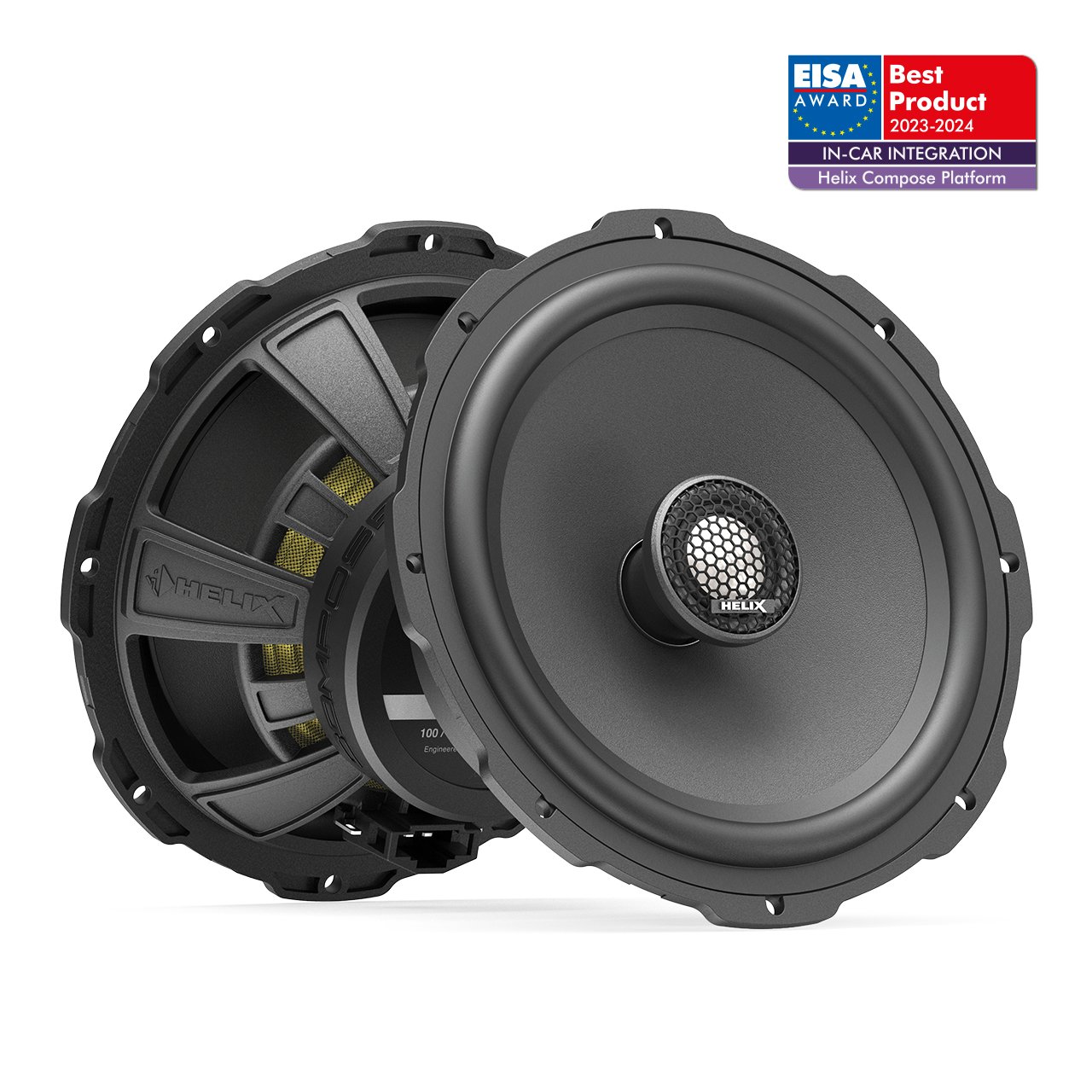

HELIX COMPOSE Ci3 K165.2FM-S2 CAR SPEAKER
Original price was: ₹39,999.00.₹29,999.25Current price is: ₹29,999.25.
The HELIX Ci3 K165.2FM-S2 is a high-performance 2-way component speaker system from the innovative HELIX COMPOSE platform, designed for seamless integration, maximum efficiency, and outstanding sound quality. Featuring Cenosphere coated midbass cones, titanium dome tweeters, and advanced FlexMount compatibility, it ensures precision, power, and professional-grade installation in any vehicle.
Description
The HELIX Ci3 K165.2FM-S2 redefines car audio through the HELIX COMPOSE platform, created with the principle “developed inside the vehicle, for the vehicle”. Combining the versatility of universal speakers with the advantages of vehicle-specific systems, it delivers brilliant sound quality, high efficiency, and powerful dynamics.
Equipped with 2 Ohm technology, Cenosphere coated cones, titanium dome tweeters, and a finely tuned crossover with tweeter level adjustment, this system guarantees precision and dynamic sound. With COMPOSE Connect, FlexMount20 & FlexMount165 compatibility, and WireKits plug-and-play integration, installation is secure, simple, and future-proof. Perfectly matched with HELIX and MATCH amplifiers, it ensures maximum performance and reliability.
Key Features
- 2-way performance component system for precise and powerful sound.
- High efficiency with 2 Ohm technology for maximum amplifier output.
- Smart connectors: COMPOSE Connect & ProConnect for safe, fail-proof installation.
- 0.75” / 20 mm titanium dome tweeter with neodymium magnet for brilliant, detailed highs.
- Compact tweeter design with flush-mount and angle-mount pods included.
- 6.5” / 165 mm midbass with Cenosphere coated paper cone for clear, stable sound.
- High-tech polymer basket, reinforced with glass beads, for rigidity and thermal resistance.
- Separate high-grade crossover with 6-stage tweeter level adjustment, 12 dB slope, and integrated tweeter protection.
- FlexMount20 & FlexMount165 compatibility for vehicle-specific installation.
- WireKits compatibility for easy, non-destructive OEM integration.
Specification
GENERAL
| Specification | Details |
|---|---|
| Power Handling (RMS/Max.) | 100 / 150 Watts |
| Frequency Response | 60 Hz – 25,000 Hz |
| Impedance | 2 Ω |
| Sensitivity (SPL) | 94 dB @ 2.83V/1m, 88 dB @ 1W/1m |
Dimensions
| Component | Outer Diameter | Installation Diameter | Installation Depth |
|---|---|---|---|
| Tweeter | 32.0 mm / 1.26” | 32.0 mm / 1.26” | 9.8 mm / 0.39” |
| Midbass | 165.0 mm / 6.50” | 142.0 mm / 5.59” | 60.7 mm / 2.39” |
| Crossover | 103.3 x 50.4 x 25.0 mm | – | – |
| Parameter | Value |
|---|---|
| Impedance (Z) | 2 Ω |
| DC Resistance (Re) | 1.8 Ω |
| Resonance Frequency (Fs) | 74 Hz |
| Mechanical Q Factor (Qms) | 3.92 |
| Electrical Q Factor (Qes) | 0.92 |
| Total Q Factor (Qts) | 0.74 |
| Compliance (Cms) | 370 μm/N |
| Equivalent Air Volume (Vas) | 8.8 L |
| Force Factor (B*l) | 3.4 Tm |
| Cone Area (Sd) | 133 cm² |
| Moving Mass (Mms) | 12.5 g |
| Mechanical Resistance (Rms) | 1.48 kg/s |
| Voice Coil Diameter | 25 mm |
| Voice Coil Winding Height | 11.3 mm |
| Max. Linear Excursion (Xmax) | ± 3.7 mm |
Tweeter
| Parameter | Value |
|---|---|
| Impedance (Z) | 4 Ω |
| Resonance Frequency (Fs) | 1800 Hz |
| Voice Coil Diameter | 20 mm |
Component materials
| Component | Details |
|---|---|
| Tweeter | Ultra-compact titanium dome, neodymium magnet, FlexMount20 compatible |
| Midbass | Cenosphere coated paper cone, ProConnect terminal, FlexMount165 compatible |
| Crossover | Tweeter: 12 dB highpass, protection & level adjustment; Midbass: 6 dB lowpass |
