Helix P 1T Speaker
₹31,999.00
The HELIX P 1T is a high-end 1” silk dome tweeter that sets the benchmark in its class. Featuring a neodymium magnet system, hand-coated silk dome, and precision engineering, it delivers crystal-clear highs, outstanding resolution, and natural tonality. With flexible installation options and premium build quality, it’s the perfect upgrade for audiophiles seeking reference-level sound.
Description
HELIX P 1T – Reference-Class 1” Silk Dome Tweeter
The HELIX P 1T has earned its reputation as a benchmark tweeter in car audio, thrilling both professionals and enthusiasts for years. Behind its discreet design lies a driver that redefines precision, resolution, and tonality. Whether in a high-end system or as an upgrade, the P 1T sets new standards for clarity and musical detail.
Exceptional Sound Quality
Equipped with a 25 mm hand-coated silk dome and a high-efficiency neodymium magnet, the HELIX P 1T ensures balanced, natural sound reproduction with minimal compression. It delivers sparkling highs, excellent dynamics, and tonal accuracy that outperform many competitors in its class.
Premium Build & Reliability
Manufactured with the highest material standards and tight production tolerances, the P 1T offers outstanding reliability and consistency. Its refined engineering ensures distortion-free performance across a wide frequency range.
Flexible Installation
The HELIX P 1T comes with flush mount, surface mount, and fitting spring options, making installation simple and versatile. Whether integrated seamlessly or installed visibly, it adapts perfectly to any system design.
Key Features
- 1” / 25 mm tweeter with high-efficiency neodymium magnet.
- Hand-coated silk dome for smooth, natural sound reproduction.
- Ultra-low compression effects for dynamic and precise performance.
- Premium materials and tight production tolerances for maximum reliability.
- Flexible installation options, including flush mount and surface mount.
Scope of Delivery
- 2 x HELIX P 1T tweeters incl. flush mount

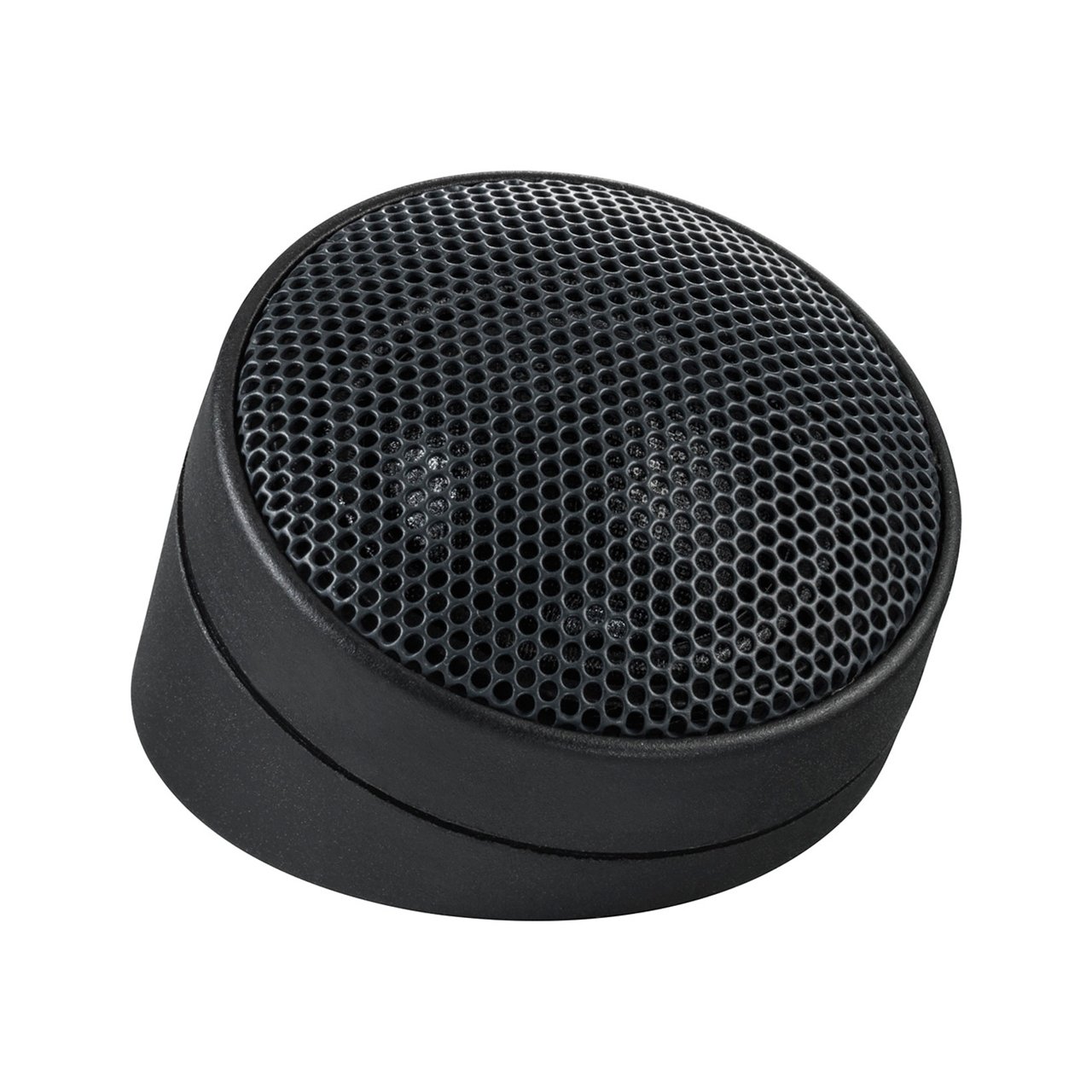

- 2 x Surface mounts
- 2 x Fitting springs
- 1 x Mounting material
Specification
| Technical Data | Details |
|---|---|
| Power RMS / Max | 100 W / 200 W (highpass > 3,000 Hz at 12 dB/Oct.) |
| Impedance (Z) | 4 Ω |
| DC Resistance (Re) | 3.4 Ω |
| Frequency Response | 2,500 Hz – 25,000 Hz |
| Resonance Frequency (Fs) | 1,500 Hz |
| Sensitivity (SPL, 1 W/1 m) | 91 dB |
| Voice Coil Diameter | 25 mm |
| Cone Area (Sd) | 4.9 cm² |
| Moving Mass (Mms) | 0.3 g |
| Cone Material | Silk dome |
| Outer Diameter | 58 mm / 2.28″ |
| Installation Diameter | 49.3 mm / 1.95″ |
| Installation Depth | 15 mm / 0.60″ |
| Slope | Minimum Crossover Frequency |
|---|---|
| 6 dB/Octave | 4,000 Hz |
| 12 dB/Octave | > 3,000 Hz |
| 24 dB/Octave | > 2,500 Hz |
