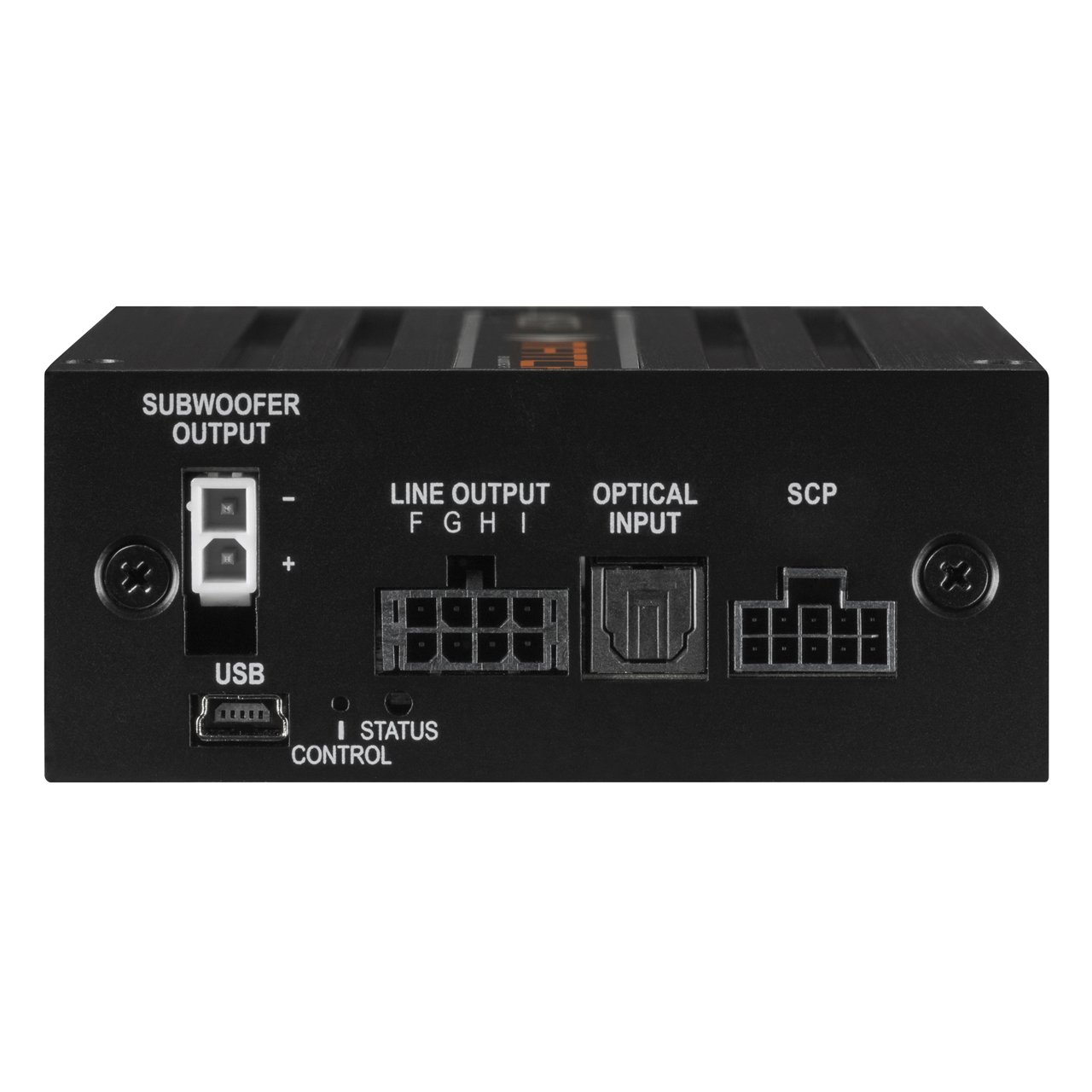

Match M 5.4DSP Amplifier
Original price was: ₹89,999.00.₹67,499.25Current price is: ₹67,499.25.
The MATCH M 5.4DSP is a compact 5-channel Class GD amplifier with an integrated 9-channel 64 Bit DSP that delivers up to 400 W RMS / 800 W Max. output power. Barely larger than a smartphone, it is designed for stealth installations, plug & play upgrades, and high-end sound tuning, making it the ultimate power-packed solution for modern vehicles with limited space.
Description
The MATCH M 5.4DSP combines powerful amplification, advanced DSP processing, and ultra-compact design into one versatile unit. Despite its miniature size, it produces up to 4 × 60 W RMS + 1 × 160 W RMS in HighPower mode, or operates efficiently in MidPower mode for true plug & play installations without a dedicated power cable.
Equipped with Audiotec Fischer’s latest ACO CoProcessor platform, it ensures lightning-fast switching between setups, advanced signal analysis, and compatibility with features like TuneEQ, RealCenter, and Augmented Bass Processing. The Virtual Channel Processing (VCP) revolutionizes system routing, making even complex factory integrations intuitive and flexible.
With optical SPDIF input (12–96 kHz), smart high-level inputs with ADEP.3, 4 configurable RCA outputs, and a Smart Control Port (SCP) for remotes and accessories, the M 5.4DSP is built for seamless OEM integration and future expandability.
Whether used standalone or in combination with MATCH sub amplifiers (like the M 2.1AMP), the M 5.4DSP delivers audiophile-grade sound in the smallest footprint possible – the perfect solution for modern vehicles where space and performance matter equally.
Key Features
- Ultra-compact 5-channel amplifier – barely larger than a smartphone
- HighPower Mode: 4 × 60 W + 1 × 160 W RMS
- MidPower Mode: 4 × 35 W + 1 × 90 W RMS (for PnP without extra power cable)
- Integrated 9-channel 64 Bit DSP with 4 RCA outputs for system expansion
- ACO platform (32 Bit CoProcessor):
- Faster system control & DSP operations
- 10 memory slots for sound setups
- Lightning-fast switching & firmware upgradability
- Virtual Channel Processing (VCP): advanced signal routing for complex factory systems
- Proprietary FX sound features: Augmented Bass Processing, StageXpander, RealCenter
- TuneEQ automatic EQ correction with measurement mic support
- Smart Control Port (SCP): for DIRECTOR, CONDUCTOR, WIFI CONTROL & more
- Class GD technology for high efficiency & low heat dissipation
- Optical SPDIF input (12–96 kHz) for high-resolution sources
- Smart highlevel input with ADEP.3 – flawless OEM integration without error codes
- Start-Stop capable (stable down to 6 V supply)
- Auto Remote switch & power-save mode for energy efficiency
- Subwoofer connection cable included for MATCH Plug & Play or conventional subs
Scope of Delivery
- 1 × MATCH M 5.4DSP micro amplifier
- 1 × Control Input-to-SCP adaptor
- 1 × USB cable
- 1 × Connection cable PP-IOC (0.5 m)
- 1 × Subwoofer connection cable PP-SOC (0.45 m)
- 1 × Line Output-to-RCA cable
- 1 × Mounting material
- 1 × Instruction manual
Specification
| Specification | Details |
|---|---|
| Output Power RMS (HighPower) | 4 × 60 W @ 4Ω 1 × 160 W @ 2Ω(Sub) 1 × 90 W @ 4Ω (Sub) |
| Output Power RMS (MidPower) | 4 × 35 W @ 4Ω 1 × 90 W @ 4Ω (Sub) |
| Amplifier Technology | Class GD |
| DSP Processor | 64 Bit Audio Signal Processor (295 MHz / 1.2B MAC/s) |
| DSP Resolution | 48 kHz Sampling |
| Inputs | 4 × Highlevel Speaker Input 1 × Optical SPDIF (12–96 kHz) 1 × Remote In |
| Input Sensitivity | 5 – 11 V |
| Input Impedance (Highlevel) | 9 – 33 Ω (with ADEP.3) |
| Outputs | 5 × Speaker Outputs 4 × RCA Line Outputs (3 V) 1 × Remote Out |
| Signal Converters | BurrBrown A/D & D/A |
| Frequency Response | 20 Hz – 20 kHz |
| S/N Ratio (Digital Input) | > 105 dB (A-weighted) |
| S/N Ratio (Analog Input) | > 99 dB (A-weighted) |
| THD (Distortion) | < 0.03 % |
| Damping Factor | > 50 |
| Operating Voltage | 10.5 – 17 V (down to 6 V for 5 sec) |
| Idle Current | 280 mA |
| Max Remote Output Current | 500 mA |
| Fuse Rating | 1 × 30 A Maxi-fuse (APX) |
| Power Rating | DC 12 V ⎓ 40 A max. |
| Operating Temperature | -40 °C to +70 °C |
| Dimensions (H × W × D) | 35 × 85 × 110 mm (1.34 × 3.35 × 4.33”) |
