Match UP W8BMW-S Subwoofer
₹49,999.00
MATCH UP W8BMW-S subwoofers deliver maximum bass power and precision for BMW vehicles and universal setups. Featuring an ultra-flat design, rigid fiberglass cone, and oversized 42.5 mm voice coil, they ensure dynamic, distortion-free performance. Perfectly compatible with MATCH UP 7BMW and UP 7DSP amplifiers, they fit seamlessly under BMW seats or in compact enclosures.
Description

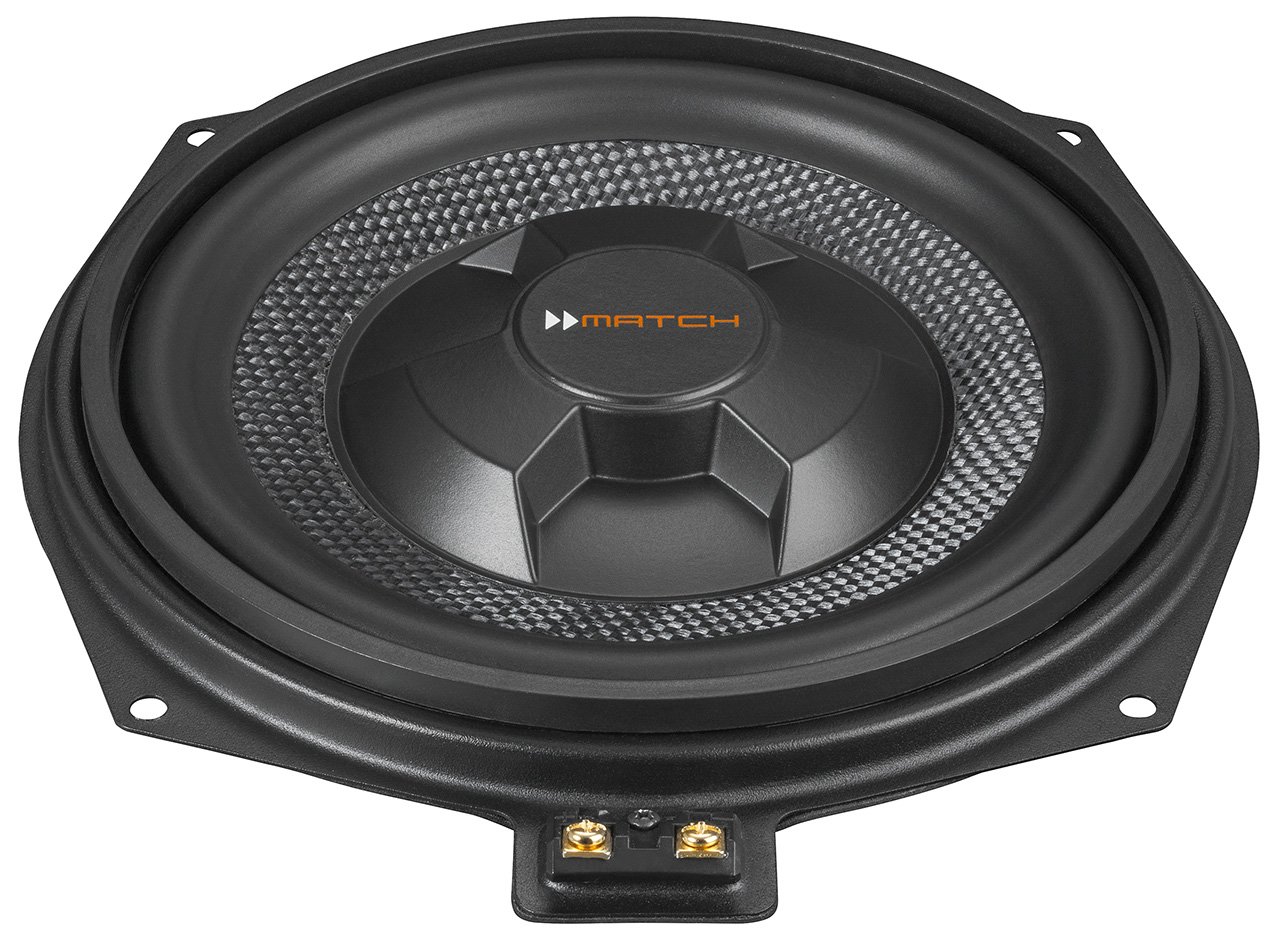

MATCH UP W8BMW-S – Maximum Power for BMW Sound Concepts
The MATCH UP W8BMW-S subwoofers are engineered for uncompromising bass performance in BMW vehicles and universal applications. With an ultra-flat design, they fit seamlessly into original BMW under-seat positions, ensuring effortless installation with included BMW-specific baskets and connectors.
The extremely stiff fiberglass cone delivers powerful, distortion-free sound pressure, while the oversized 42.5 mm voice coil ensures high power handling. Thanks to their low mounting depth, these subwoofers are also ideal for ultra-compact enclosures, making them versatile for both factory upgrades and custom setups.
Whether you’re upgrading your BMW HiFi system or building a universal bass concept, the UP W8BMW-S guarantees dynamic, punchy bass performance. Pairing perfectly with MATCH amplifiers like the UP 7BMW or UP 7DSP, they offer an exceptional upgrade path for true audio enthusiasts.
Key Features
- 2 x 8” BMW-specific upgrade subwoofers for under-seat installation
- Ultra-flat design for seamless integration into all BMW model ranges with under-seat subs
- Exceptionally stiff fiberglass cone for maximum sound pressure without distortion
- Oversized 42.5 mm (1.7”) voice coil ensures superior power handling
- Impedance of 1 x 2 Ohms per woofer for optimal efficiency
- Includes BMW connection cables for plug-and-play installation
- Perfectly compatible with MATCH UPGRADE amplifiers UP 7BMW and UP 7DSP
- Also ideal for universal applications in compact sealed or vented enclosures
Compatibility
- Fits all BMW model ranges with under-seat subwoofers
- Ideal for universal setups in compact enclosures
- Perfectly combinable with MATCH UPGRADE amplifiers (UP 7BMW / UP 7DSP)
Scope of Delivery
- 2 x Subwoofer MATCH UP W8BMW-S
- 2 x BMW connection cables
- 1 x Mounting material
- 1 x Instruction manual
Specification
| Specification | Value |
|---|---|
| Power RMS / Max. | 200 / 400 Watts |
| Impedance (Z) | 1 x 2 Ω |
| DC Resistance (Re) | 2.0 Ω |
| Resonance Frequency (Fs) | 49 Hz |
| Mechanical Q Factor (Qms) | 3.80 |
| Electrical Q Factor (Qes) | 0.61 |
| Total Q Factor (Qts) | 0.53 |
| Compliance (Cms) | 210 µm/N |
| Equivalent Air Volume (Vas) | 13.9 L |
| Force Factor (B*I) | 7.1 Tm |
| Efficiency (SPL 1 W / 1 m) | 90 dB |
| Cone Area (Sd) | 214 cm² |
| Moving Mass (Mms) | 47.4 g |
| Cone Material | Extremely stiff fiberglass cone |
| Mechanical Resistance (Rms) | 3.97 kg/s |
| Voice Coil Diameter | 42.5 mm |
| Voice Coil Winding Height | 12.5 mm |
| Max. Linear Excursion (Xmax) | +/- 4.0 mm |
| Outer Diameter | 239 mm / 9.41″ |
| Installation Diameter | 175 mm / 6.89″ |
| Installation Depth | 40 mm / 1.57″ |
| Parameter | Specification |
|---|---|
| Net Volume | 3 L |
| Lower Limiting Frequency (-3 dB) | 63 Hz |
| DSP Settings | – Highpass: Butterworth, 12 dB/octave, crossover frequency 40 Hz – Additional EQ Filter: center frequency 90 Hz, Q factor 3.0, gain -4 dB – Lowpass: Butterworth, 24 dB/octave, crossover frequency 80 – 100 Hz |
| Parameter | For One Subwoofer | For Two Subwoofers |
|---|---|---|
| Net Volume | 12 L | 24 L |
| Port Diameter | Ø 60 mm / 2.36″ | Ø 80 mm / 3.15″ |
| Port Area | 28 cm² | 50 cm² |
| Port Length | 25 cm / 9.84″ | 20 cm / 7.87″ |
| Port Tuning Frequency (Fb) | 46 Hz | 46 Hz |
| Lower Limiting Frequency (-3 dB) | 45 Hz | 45 Hz |
| DSP Settings | – Highpass: Self-Define, crossover frequency 40 Hz, Q factor 1.3 – Additional EQ Filter: center frequency 67 Hz, Q factor 3.0, gain -3 dB – Lowpass: Butterworth, 24 dB/octave, crossover frequency 80 – 100 Hz | – Highpass: Self-Define, crossover frequency 40 Hz, Q factor 1.3 – Additional EQ Filter: center frequency 67 Hz, Q factor 3.0, gain -3 dB – Lowpass: Butterworth, 24 dB/octave, crossover frequency 80 – 100 Hz |
