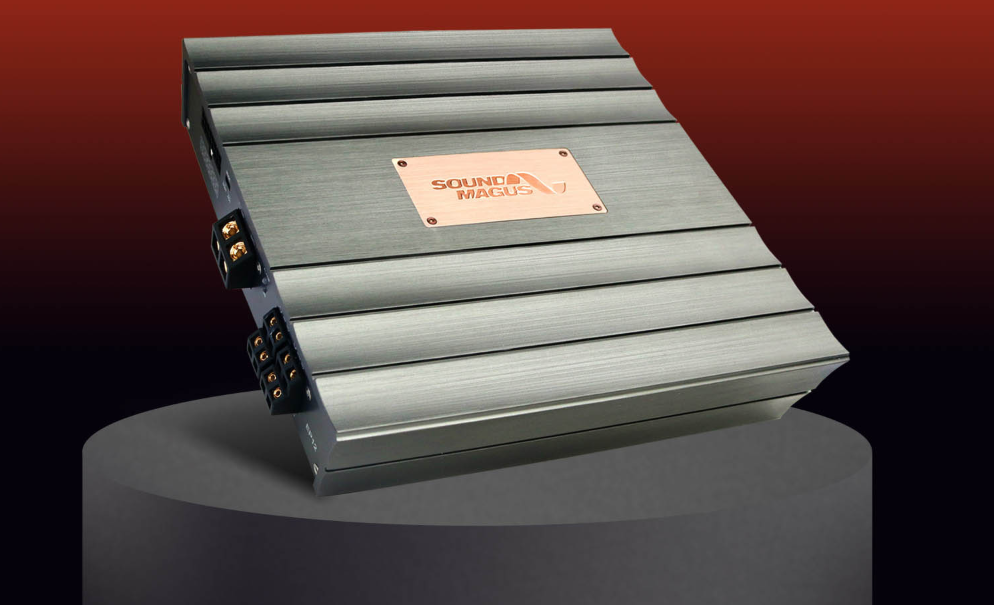

SoundMagus DSP EP12 EP Series

Brand:SoundMagus
In Stock

Original price was: ₹99,990.00.Current price is: ₹74,992.50.

The Sound Magus EP12 is a premium 12-channel Class D DSP amplifier delivering up to 4100W RMS of crystal-clear, high-resolution audio. With built-in 12-channel DSP, Bluetooth tuning, and audiophile-grade components, it is the ideal choice for car audio enthusiasts seeking precision, power, and seamless integration.

Category:Tag: Brand:

Experience unparalleled in-car audio with the Sound Magus EP12 Class D Amplifier, designed to meet the demands of audiophiles and sound engineers alike. Engineered with a built-in 12-channel DSP and high-output Class D amplifier circuitry, the EP12 produces detailed, distortion-free sound with a total RMS power output of 4100W.

Every component inside the EP12 is built for performance — from its dual toroidal transformer power supply to Texas Instruments Class D amplifier chip, Infineon IRS2093, and ADI SigmaDSP processor. Gold-plated power and speaker terminals support large 4 AWG cables, ensuring maximum signal flow and minimal resistance.

The EP12 supports Bluetooth control, PC tuning, and includes the DWC-04 remote controller for direct volume and input adjustments. With a frequency response of 20Hz to 40kHz, it effortlessly handles deep bass, rich mids, and sparkling highs. Compact and sleek, the EP12 is crafted for easy installation across all vehicles while offering high-end audio flexibility.

Key Features

  • Class D High-Power Output
    • (8 x 50W RMS) + (4 x 100W RMS) @ 4Ω with clean and powerful sound
  • Built-in 12-Channel DSP
    • Advanced 24bit / 96kHz audio resolution for precise tuning and audio shaping
  • Dual Toroidal Power Supply Transformer
    • Ensures high stability and power efficiency with MCU regulation
  • Gold-Plated Terminals
    • Large power input and speaker output terminals for 4 AWG cables
  • Audiophile-Grade Internal Components
    • Texas Instruments Class D Amp Chip
    • Infineon IRS2093
    • ADI SigmaDSP processor
    • Japanese Rubycon filter capacitors
    • WIMA precision capacitors
  • High-Efficiency Heat Management
    • Designed to perform across wide temperature ranges with low distortion
  • Bluetooth DSP Control
    • Wireless tuning and adjustments via iOS/Android (optional CSR 5.0 module)
  • DWC-04 Wired Remote Control Included
    • Easily control volume, subwoofer level, input, and presets
  • Advanced PC Tuning Software
    • Intuitive graphical user interface for professional-level configuration
  • Compact, Durable Design
    • Quad-layer copper foil PCB ensures signal purity and structural integrity

Power supply

Operating Voltage range

7.5 – 16V DC

Auto Turn On

ACC / DC OFFSET ( High level input CH1 only )

Standby Current

<5mA

Idling Current

1.7A

REM OUT output voltage

12V DC (380mA)

Recommended external fuse Rating

100A

input

Analog input

12 Channel High Level / 10Vrms
2 Channel Low Level (AUX) / 2.0Vrms

Digital audio input

1 Optical (96kHz/24bit); 1 Coaxial

Input Impedance

20K Ohm (Low Level) / 10 Ohm(High-Level)

Bluetooth

Bluetooth (Built-in) Bluetooth 5.1, supports SBC / AAC protocols
Bluetooth (External) Bluetooth 5.0, supports AAC, APTX-L, APTX-LL, APT-HD, MP3, SBC, and others

output

Output Channel

12 High Level (CH1~12) + 2 Low Level (CH11~CH12)

Low level output (14.4V , 1KHz , 1%THD)

5Vrms

High level output RMS power (@14.4V,1KHz, 1%THD)

  • 8 × 50W (4Ω) + 4 × 100W (4Ω) CH9-12
  • 8 × 50W (4Ω) + 4 × 150W (2Ω) CH9-12
  • 8 × 50W (4Ω) + 2 × 300W (4Ω bridged) CH9-12

High level output MAX power (@14.4V,1KHz, 10%THD)

  • 8 × 100W (4Ω) + 4 × 200W (4Ω) CH9-12
  • 8 × 100W (4Ω) + 4 × 300W (2Ω) CH9-12
  • 8 × 100W (4Ω) + 2 × 600W (4Ω bridged) CH9-12

Performance Specifications

  • Frequency Response Range 20Hz ~ 40KHz (-3dB)
  • THD (1KHz, 1Vrms Output) 0.04%
  • S/N Ratio (1KHz A-wt, THD=1%) >90dB
  • Channel Separation @ 1KHz >65dB

Output signal Crossover

  • Independent HPF, LPF filter for each channel
  • Filter types: Link-Ril, Bessel, Butter-W
  • Filter frequency: 20Hz~40KHz (1Hz steps)
  • Filter slope: 6dB/Oct ~ 48dB/Oct

Output Signal Equalizer

  • 31 independent EQs per channel
  • Type: Parametric / Graphic EQ
  • Frequency: 20Hz~40KHz (1Hz steps)
  • Q Value: 0.404 ~ 28.852
  • Gain: -12.0dB ~ +12.0dB (0.1dB steps)

Output Phase

Normal phase or reverse phase (0°~360°)

Output Delay

0.000~20.000ms;0`692cm;0~272.8 inch

Output volume

  • Each channel independent adjustment: -60dB ~ 0dB (0.1dB steps)
  • Total volume adjustment: -60dB ~ 6dB(0.1dB steps)

Shutdown delay

0~255S

Control connections

Control DSP Tuning

  • PC software (Installation free) /
  • Smart phone app tuning ( External Bluetooth module required )

Remote control

  • Wired controller /
  • Smart phone app control ( External Bluetooth module required )

General

Dimension & Weight

  • Net weight: 2.6kg
  • Dimension: 229mm x 223mm x 50 mm(L x W x H)
