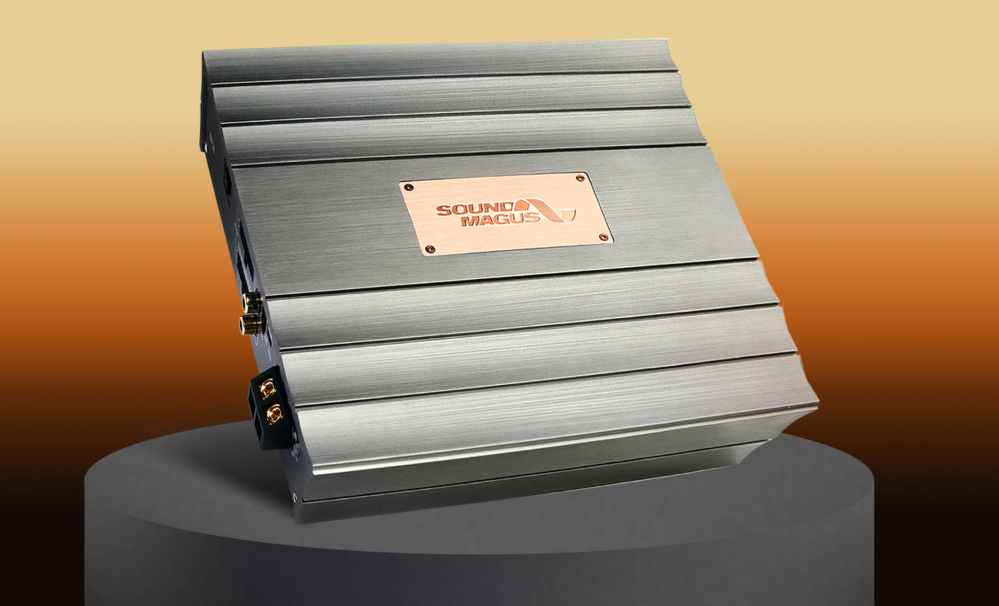

SoundMagus DSP EP16 EP Series

Brand:SoundMagus
In Stock

Original price was: ₹134,990.00.Current price is: ₹101,242.50.

Sound Magus EP16 is a high-performance 16-channel Class D DSP amplifier engineered for audiophiles and professionals. With a peak power of up to 4800W RMS, built-in 16-channel DSP, Bluetooth 5.1, premium audio-grade components, and advanced tuning via PC/mobile, the EP16 sets a new standard for in-car audio excellence.

Category:Tag: Brand:

Description

The Sound Magus EP16 Class D Amplifier is a powerhouse of engineering excellence, combining 16-channel DSP processing with high-fidelity Class D amplification. Delivering up to 4800W RMS, this amplifier ensures ultra-clean output, high dynamic range, and crystal-clear sound for every channel — whether you’re powering speakers, subwoofers, or both.

Equipped with Texas Instruments audiophile-grade amplifier chips, Infineon IRS2093, and ADI SigmaDSP, the EP16 stands out for its cutting-edge technology. From dual toroidal power transformers to gold-plated terminals, Rubycon filter capacitors, and WIMA components, every aspect is optimized for sonic precision and reliability.

Seamless tuning is enabled through built-in Bluetooth 5.1, optional CSR Bluetooth 5.0 module, and full compatibility with iOS/Android apps and PC software. The DWC-04 wired remote control allows easy access to master volume, subwoofer level, input selection, and memory presets.

Whether you’re upgrading a factory system or building a reference-grade custom setup, the EP16 is designed to deliver next-level audio performance, making it the go-to solution for installers and enthusiasts alike.

Key Features

  • 16-Channel Class D Amplifier
    • (12 x 50W RMS) + (4 x 80W RMS) @ 4 Ohms
    • Peak output up to 4800W RMS
  • Built-in 16-Channel DSP
    • High-resolution 24bit / 96kHz signal processing
  • Dual Toroidal Power Supply
    • MCU-controlled for stable, efficient performance
  • Bluetooth 5.1 Built-in
    • Wireless tuning & streaming (iOS / Android support)
  • Optional External CSR Bluetooth 5.0 Module
  • Gold-Plated Terminals
    • Large 4 AWG power inputs and high-current output connectors
  • Premium Audio Components
    • Texas Instruments Class D chip
    • Infineon IRS2093
    • WIMA & Japanese Rubycon capacitors
    • ADI SigmaDSP
  • Advanced Protection & Stability
    • Speaker guard circuitry, wide temperature tolerance, high-efficiency power management
  • DWC-04 Wired Remote Included
  • User-Friendly Tuning
    • Compatible with PC tuning software and mobile apps
  • Quad Layer Copper Foil PCB
    • Ensures durability and clean signal path

Specification

Power supply

Operating Voltage range

7.5 – 16V DC

Auto Turn On

ACC / DC OFFSET ( High level input CH1 only )

Standby Current

<5mA

Idling Current

1.4A

REM OUT output voltage

12V DC (380mA)

Recommended external fuse Rating

120A

input

Analog input

16 Channel High Level / 10Vrms, 2 Channel Low Level (AUX) / 2.0Vrms

Digital audio input

1 Optical (96kHz/24bit); 1 Coaxial

Input Impedance

20K Ohm (Low Level) / 10 Ohm(High-Level)

Bluetooth

Built-in Bluetooth 5.1, Supports SBC / AAC protocols; External Bluetooth 5.0, Supports AAC, APTXL, APTXLL, APT-HD, MP3, SBC and other protocols

output

Output Channel

16 High Level (CH1CH16) + 2 Low Level (CH15CH16)

Low level output (14.4V , 1KHz , 1%THD)

5Vrms

High level output RMS power (@14.4V,1KHz, 1%THD)

  • 12 x 50W (4Ω) + 4 x 80W (4Ω) CH3-16
  • 12 x 50W (4Ω) + 4 x 145W (2Ω) CH3-16
  • 12 x 50W (4Ω) + 2 x 280W (4Ω bridged) CH3-16

High level output MAX power (@14.4V,1KHz, 10%THD)

  • 12 x 100W (4Ω)+ 4 x 160W (4Ω) CH3-16
  • 12 x 100W (4Ω)+ 4 x 280W (2Ω) CH3-16
  • 12 x 100W (4Ω) + 2 x 560W (4Ω bridged) CH3-16

Performance Specifications

  • Frequency Response range: 20Hz ~ 40KHz (-3dB)
  • THD (1KHz, 1Vrms output): 0.02%
  • S/N Ratio(1KHz A-wt. THD=1%): >98dB
  • Channel Separation @1KHz: >68dB

Output signal Crossover

  • Independent HPF, LPF filter for each channel
  • Filter type: Link-Ril, Bessel, Butter-W
  • Filter frequency: 20Hz~40KHz (1Hz steps)
  • Filter slope: 6dB/Oct~48dB/Oct

Output Signal Equalizer

  • 31 independent equalizers per channel. Type: Parametric / Graphic Equalizer
  • Frequency: 20Hz~40KHz (1Hz steps)
  • Q Value: 0.404~28.852
  • Gain: -12.0dB~+12.0dB (0.1dB steps)

Output Phase

Normal phase or reverse phase (0°~360°)

Output Delay

0.000~20.000ms;0`692cm;0~272.8 inch

Output volume

  • Each channel independent adjustment: -60dB ~ 0dB (0.1dB steps)
  • Total volume adjustment: -60dB ~ 6dB(0.1dB steps)

Shutdown delay

0~255S

Control connections

Control DSP Tuning

  • PC software (Installation free) /
  • Smart phone app tuning ( External Bluetooth module required )

Remote control

  • Wired controller /
  • Smart phone app control ( External Bluetooth module required )

General

Dimension & Weight

  • Net weight: 2.8kg
  • Dimension: 229mm x 223mm x 50 mm(L x W x H)
