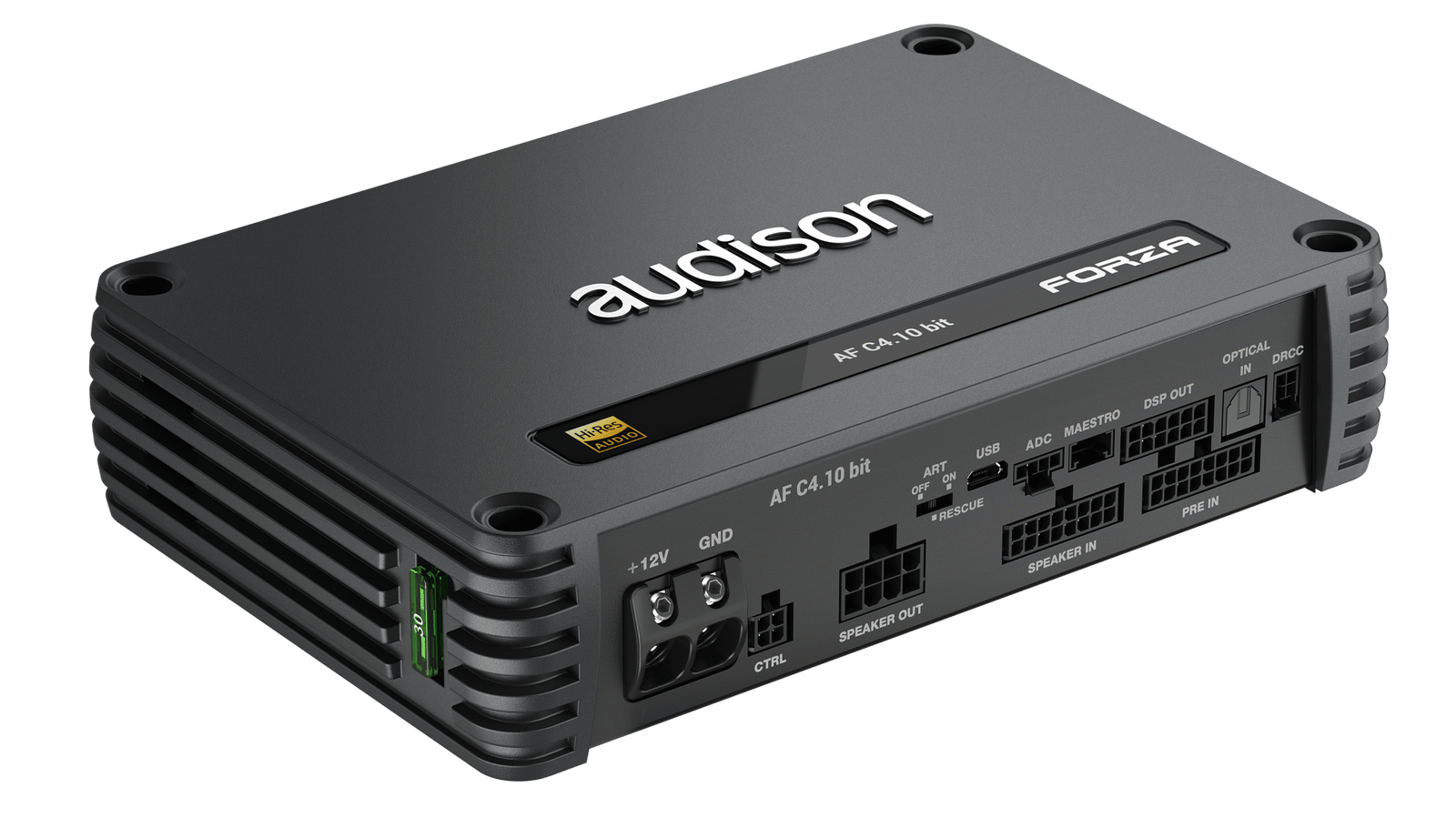

Audison Forza AF – C4.10 bit DSP Amplifier

Audison AF C4.10 bit | 600W DSP Amplifier | 10-Channel DSP + 4 x 150W @ 2Ω | Fully Bridgeable Class D

The Audison AF C4.10 bit is a premium 4-channel amplifier with an integrated 10-channel DSP, designed for audiophiles who demand flexibility, power, and superior clarity in a compact footprint. Each channel delivers 90W @ 4Ω or 150W @ 2Ω, and can be bridged to provide 300W x 2 @ 4Ω. Powered by Audison’s latest ADT (Audison D-Class Technology), it delivers extraordinary efficiency and sound precision.

Its integrated DSP supports 24-bit/96kHz resolution, enabling Hi-Res Audio playback with a bandwidth up to 40kHz. The amplifier features advanced tuning options via the bit Drive software, which includes signal routing, EQ, delay, phase correction, acoustic/electrical analysis, and OEM integration tools. It’s ideal for both factory system upgrades and full custom installations.

Key Features

• 4 High-Fidelity Amplified Channels:
  90W x 4 @ 4Ω or 150W x 4 @ 2Ω RMS. Fully bridgeable to 300W x 2 @ 4Ω.
• 24-bit/96kHz DSP Processor:
  Delivers Hi-Res Audio quality with an extended frequency response up to 40kHz.
• 10 Total DSP-Controlled Outputs:
  4 amplified outputs + 6 native pre-outs (up to 10 total), expandable with optional outputs.
• bit Drive Software Suite:
  Next-gen tuning software with advanced signal routing, time alignment, and full system management.
• Compact Yet Powerful:
  Up to 0.68 W RMS/cm³ and 81% efficiency in a space-saving design.
• Complete OEM Integration:
  8 high/low-level inputs, Toslink optical digital input, plus optional F2O/F4IN expansion for more inputs.
• Accurate Tuning Tools:
  Built-in electrical and acoustic analysis ensures clean integration with OEM systems using a 24-bit USB mic and built-in analyzer.
• Bridgeable Channels:
  All power channels can be paired to drive more demanding speakers or subwoofers.
• Universal Compatibility:
  USS (Universal Speaker Simulator) ensures seamless connection with factory head units.
• Wireless-Ready:
  Full compatibility with Audison B-CON for wireless Hi-Res streaming and Absolute Volume control.

Advanced Technologies

• bit Drive Software:
  Simplifies control, tuning, routing, and setup of DSP functions.
• Acoustic & Electrical Signal Analysis:
  Visualize input/output behavior to ensure optimal tuning and OEM integration.
• ADT – Audison D-Class Technology:
  Delivers clean, efficient, and dynamic audio with improved switching and thermal performance.
• All Channels Driven Design:
  Rated power is achievable simultaneously on all channels.
• Dual Power Supplies:
  Regulated DSP supply ensures stability even during vehicle start/stop; audio supply delivers peak dynamics.
• Quick I/O Configuration:
  Speeds up installation and signal management.
• iDatalink Maestro AR Support:
  Ensures seamless connectivity with compatible OEM infotainment systems.
• Phase & Delay Correction:
  Automatically reverses OEM EQ and aligns timing for perfect summing and staging.

Compatible Accessories

• DRC MP CAN
  High-end OLED remote control with joystick navigation, DSP memory recall, volume and sub control, and B-CON streaming control.
• DRC AC
  Sleek, RGB-backlit control interface for fast access to volume, presets, and inputs—blends with OEM interiors.
• C2O Active Crossover
  Precision crossover unit for advanced signal distribution and tuning flexibility.
• bit DMI
  OEM digital-to-Audison interface for retaining vehicle functionality while upgrading to premium audio.
• F2O & F4IN Expansion Cards
  Add digital or analog inputs to expand integration and compatibility with complex OEM systems.
• AF LINK Cable
  Interconnects AF bit DSP amps to AF D amps, enabling complete system expansion.
• AFC CLK Cooling Kit
  Thermal management kit with intelligent fan and vented bracket for compact installs.
• AFBMW ReAMP 3
  Plug-and-play T-harness for BMW RAM modules, compatible with Hi-Fi and Standard audio systems.

Box Contents

• USB Cable – For DSP connection to PC
• AF Control Cable – Manages memory presets and power-on
• DSP OUT Cable (6 CH) – For linking to Forza D amplifiers
• SPK OUT 4CH Cable – Labeled speaker wires for installation
• PRE IN Cable (8 CH) – RCA cables for aftermarket source integration
• SPEAKER IN Cable (8 CH) – For high-level OEM source connections
• Forza Install Kit – All required hardware for a clean and secure install
