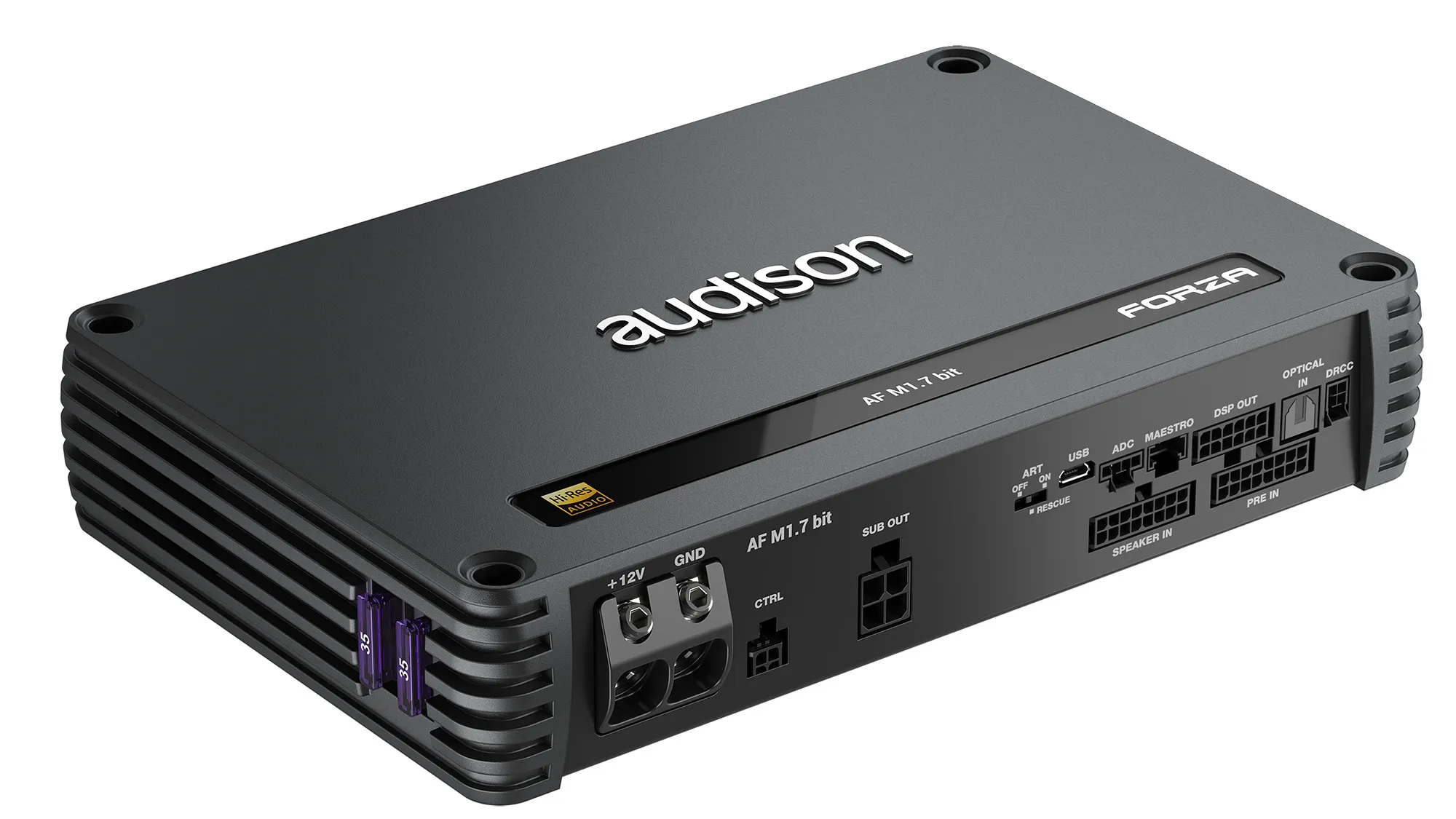

Audison Forza AF M1.7 bit DSP Amplifier

Audison AF M1.7 bit | 7-Channel DSP Amplifier | 1200W Mono Output @ 1Ω | Class D

The Audison Forza AF M1.7 bit amplifier merges cutting-edge DSP control with the raw power of a mono Class D amplifier. Offering a massive 1200W RMS @ 1Ω, 1000W @ 2Ω, and 600W @ 4Ω, it’s built on the proven AF M1D architecture, now upgraded with a 24-bit / 96kHz DSP. The bit Drive software introduces advanced tuning tools and a dedicated subwoofer optimization algorithm, including Audison’s proprietary Bass Magnifier function for deep, controlled bass response.

This versatile amplifier includes 8 input channels, expandable to 12 with the optional F4IN module, and features USS (Universal Speaker Simulator) technology for flawless OEM integration. It is fully compatible with Audison B-CON, DRC MP CAN, and DRC AC controllers for complete system control.

Key Features

• Massive Mono Power Output:
  Delivers 600W RMS @ 4Ω, 1000W @ 2Ω, and 1200W @ 1Ω for powerful subwoofer performance.
• Integrated 7-Channel DSP:
  Native 24-bit/96kHz processing with high-resolution audio certification and advanced tuning capabilities.
• Subwoofer-Specific DSP Enhancements:
  Includes EQ, crossover, delay, Dynamic Loudness, and Bass Magnifier for optimized in-car bass.
• Flexible Input Architecture:
  8 analog inputs, expandable to 12 with the F4IN card, plus optional F2O for dual digital inputs (Toslink/SPDIF).
• Dynamic System Tuning:
  eRTA acoustic tuning, time alignment, and amplitude/phase correction for input and output signals.
• bit Drive Software:
  Offers full control over signal routing, mixing, and acoustic correction with an intuitive user interface.
• ACCORDO Auto-Tuning:
  Automatically calibrates the system to target curves with time/phase alignment in a few clicks.
• Universal OEM Integration:
  Includes USS technology for compatibility with OEM head units and speaker-check systems.
• B-CON Compatibility:
  Supports Absolute Volume and remote management via the B-CON Go app.
• Full Control Support:
  Works seamlessly with Audison’s DRC MP CAN and DRC AC controllers for user control and preset management.

Technologies

• Next-gen bit Drive DSP software for seamless system configuration and acoustic tuning.
• 24-bit/96kHz DSP processing for high-resolution audio playback up to 40kHz.
• Bass Magnifier enhances in-cabin low-end impact without distortion.
• eRTA integration provides real-time acoustic response inside the EQ interface.
• Dual regulated power supplies ensure optimal DSP and amplifier performance.
• Quick I/O configuration for rapid setup of signal routing and tuning.
• USS – Universal Speaker Simulator maintains OEM compatibility.
• Automatic input delay and phase correction for factory audio integration.
• iDatalink Maestro AR support enables deep integration with OEM infotainment systems.

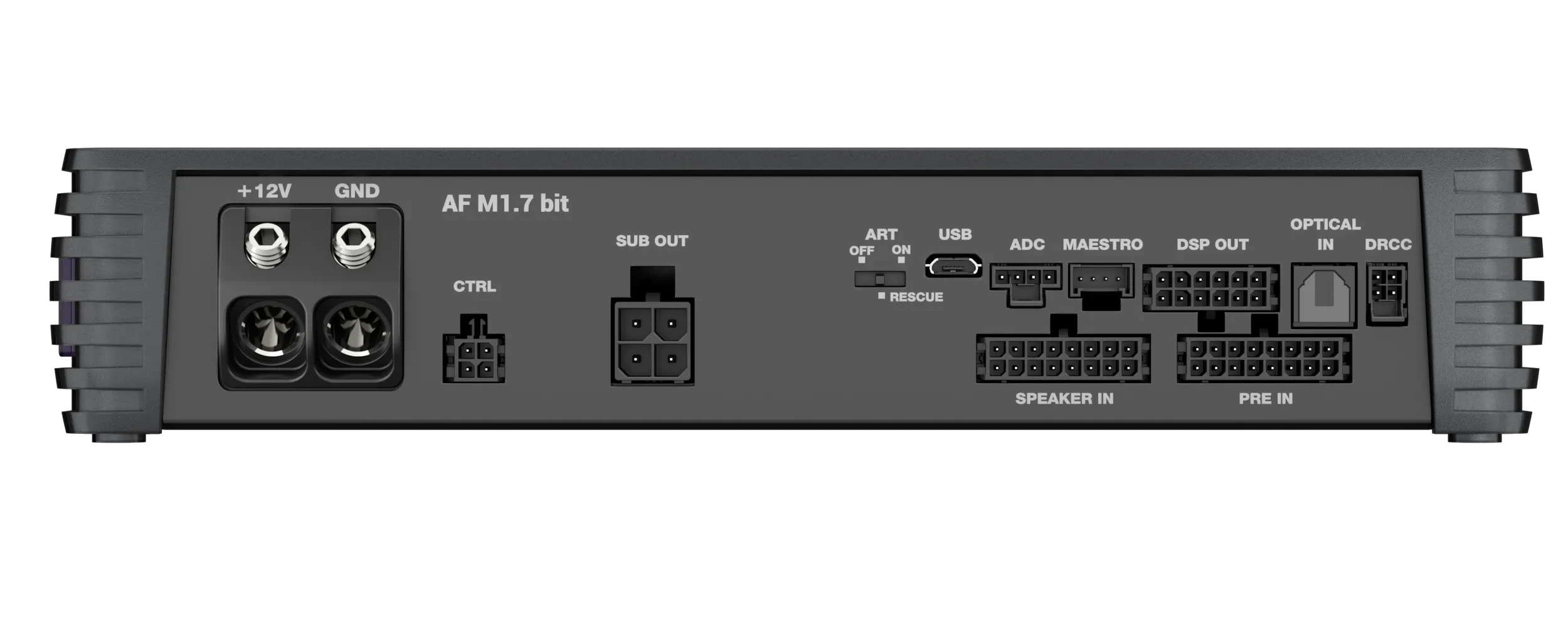

Included in the Box

• USB Cable – Connects amplifier to PC for DSP configuration.
• Control Cable AF bit – Remote-on and memory selection interconnection.
• DSP OUT (6 CH) – Pre-out connection to external amps.
• SPK OUT 2CH – Two pairs for subwoofer or dual voice coil sub connections.
• PRE IN CABLE (8 CH) – RCA inputs for aftermarket sources.
• SPEAKER IN CABLE (8 CH) – High-level OEM input support.
• Forza Install Kit – All necessary accessories for clean installation.

Optional Accessories

• DRC MP CAN – OLED-equipped controller with joystick and app integration for full DSP control and multi-zone management.
• DRC AC – Compact remote for volume, sub control, source switching, and preset recall.
• C2O – Precision active crossover for advanced signal distribution and tuning.
• F2O – Adds Coaxial SPDIF or a second Toslink digital input.
• F4IN – Expands analog inputs by 4, ideal for OEM systems with high-voltage outputs.
• AFM CLK – Cooling fan kit with thermal sensor for compact or low-ventilation installs.
