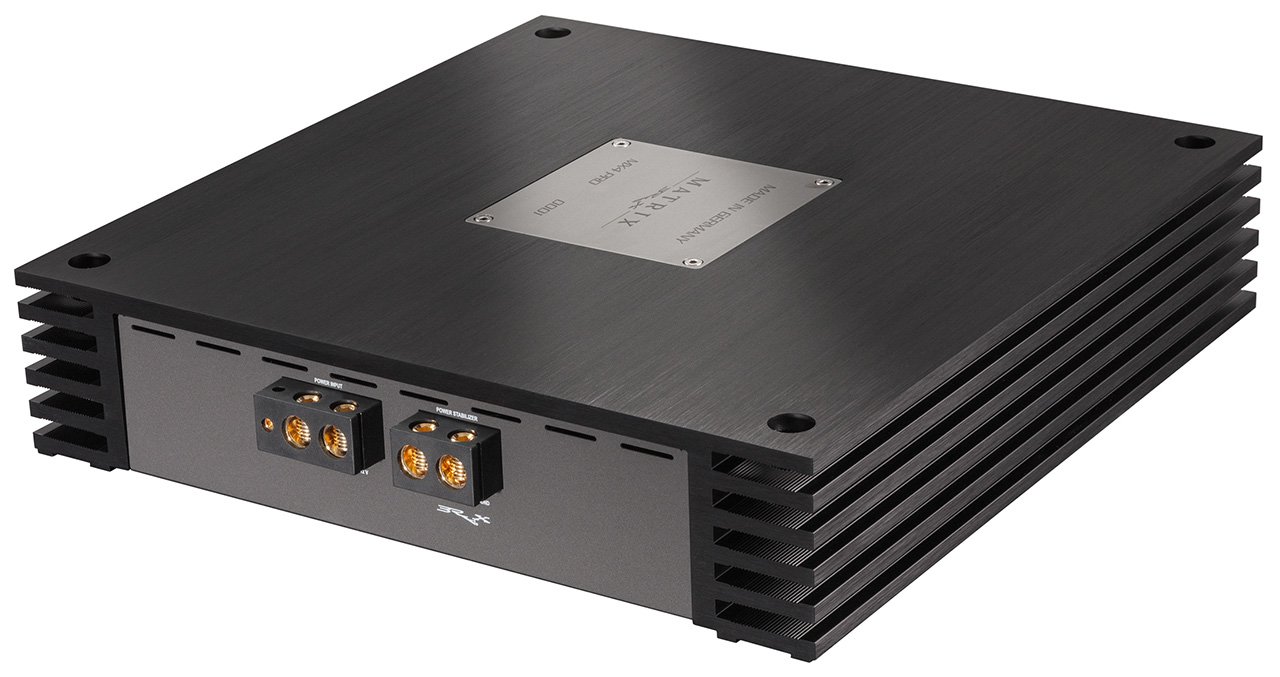

Brax Amplifier MX4 Pro
₹749,999.00
BRAX MX4 PRO – The Ultimate High-End Car Audio Amplifier
The BRAX MX4 PRO sets a new benchmark in car audio excellence. Handcrafted in Germany with meticulous precision, it combines state-of-the-art technology, unmatched power, and BRAX’s heritage of high-end engineering. With 4 x 300W RMS output, advanced DiSAC volume control, and ultra-low distortion, the MX4 PRO ensures pure, uncompromising sound quality for true audiophiles.
Description
BRAX MX4 PRO – Redefining Car Audio Amplification
Is it possible to make the world’s best car audio amplifier even better? The BRAX MX4 PRO answers with a resounding yes. Developed by Audiotec Fischer’s expert engineers, this masterpiece pushes the boundaries of both acoustic and technical performance.

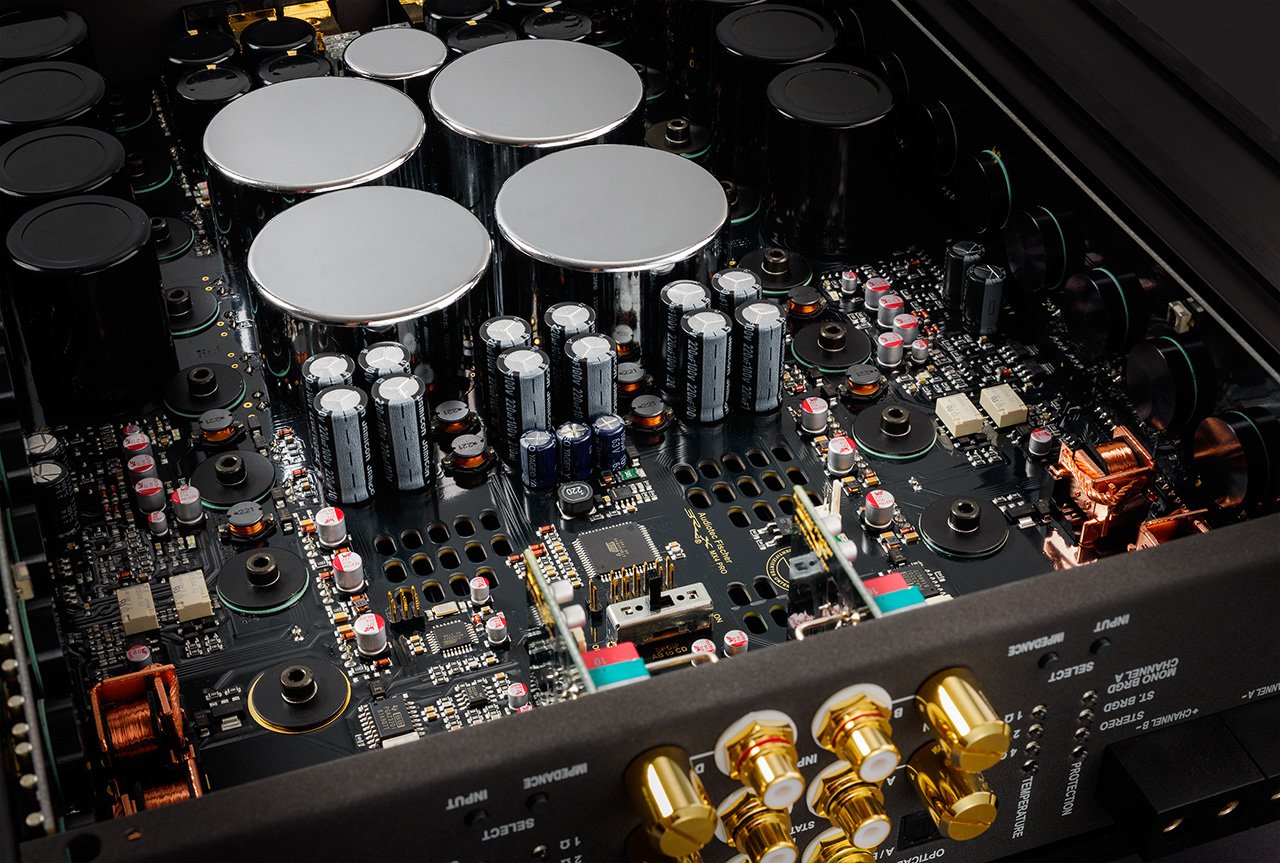

Every detail of the MX4 PRO has been optimized – from hand-selected MOSFET power transistors to an advanced quad-layer PCB design – ensuring unrivalled sound purity and power delivery. With its 4 x 300W RMS stable at 4, 2, and even 1 Ohm, the MX4 PRO delivers flawless control, dynamics, and precision.
The amplifier also introduces DiSAC (Digital Signal Analog Controlled) volume control in combination with the BRAX DSP, ensuring lossless volume adjustment without compromising signal resolution. Its robust power supply with encapsulated toroidal transformers, custom capacitors, and superior heat management guarantees unmatched stability and efficiency.
Each MX4 PRO is custom-built in Germany, engraved with its unique serial number, and supplied with a certificate – making it not just an amplifier, but a collector’s piece of true high-end car audio engineering.
Key Features of BRAX MX4 PRO
- 4 x 300 Watts RMS at 4, 2, and 1 Ohm (Impedance independent)
- DiSAC Volume Control for lossless digital-to-analog precision
- Quad-layer PCB design for maximum current and signal flow
- >1400 damping factor for absolute speaker control
- Custom hand-selected MOSFETs ensuring lowest tolerances
- Encapsulated toroidal power transformers with 1800W supply output
- Start-Stop capability with operation down to 6V during engine crank
- Individually engraved serial number – true “Made in Germany” quality
Specification
| Specification | Details |
|---|---|
| Output Power RMS | 4 x 300 W @ 4 Ω 4 x 300 W @ 2 Ω 4 x 300 W @ 1 Ω 2 x 600 W bridged @ 4 Ω 2 x 600 W bridged @ 2 Ω |
| Amplifier Technology | Class AB |
| Inputs | 4 x RCA/Cinch 2 x Optical SPDIF (32–96 kHz) 2 x Coaxial SPDIF (32–192 kHz) 1 x Remote In |
| Input Sensitivity | RCA/Cinch: 1.0 – 8.0 V |
| Input Impedance (RCA) | 10 kΩ |
| Outputs | 4 x Speaker outputs |
| DA Converter | BurrBrown 24-Bit |
| Frequency Response | 10 Hz – 80 kHz |
| Signal-to-Noise Ratio (Digital/Analog) | >116 dB (A-weighted) |
| THD (Distortion) | < 0.0005 % |
| Damping Factor | > 1400 |
| Operating Voltage | 9 – 16 V (down to 6 V for 5 sec) |
| Idle Current | 8.5 A |
| Operating Temperature Range | -40 °C to +70 °C |
| Fuse | 6 x 25 A LP-Mini (APS) |
| Additional Features | Colour Protection System, BRAX Power Stabilizer connector, Start-Stop capability |
| Dimensions (H x W x D) | 79 x 360 x 360 mm (3.11” x 14.17” x 14.17”) |
| Net Weight | 12.0 kg |
| Scope of Delivery | BRAX MX4 PRO Amplifier BRAX MATRIX T-shirt 3 x Allen Keys Certificate Hand-signed Manual |
