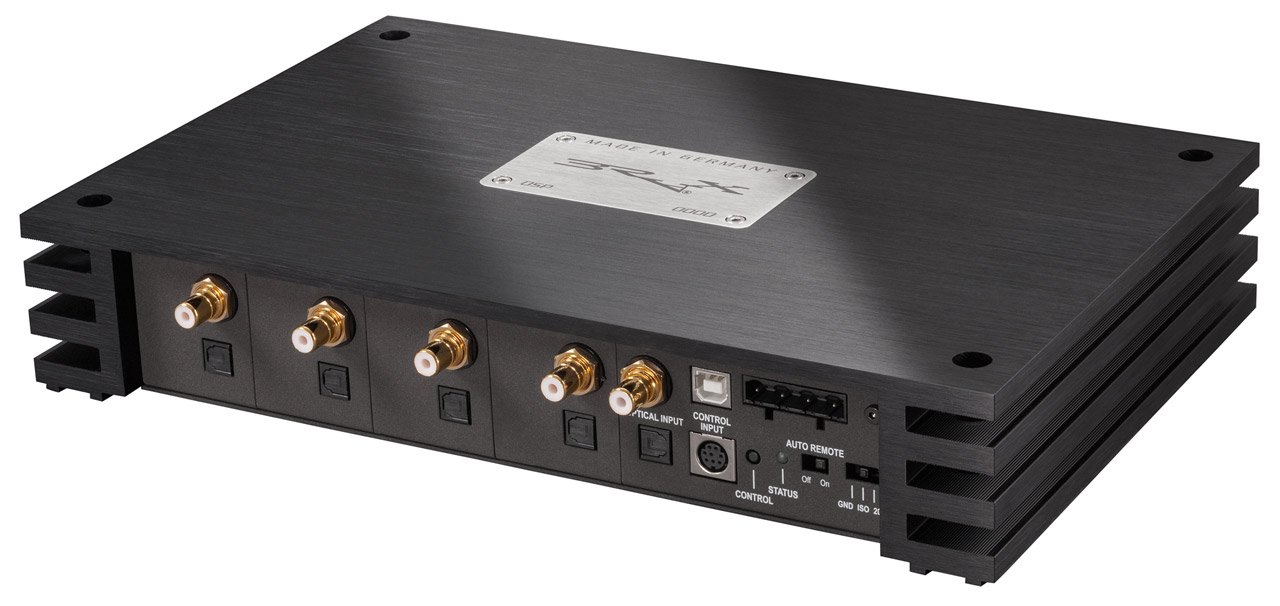

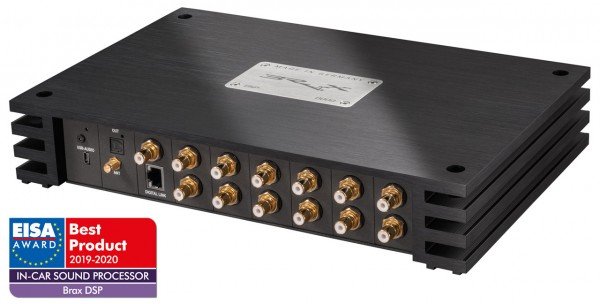

Brax DSP Black

The BRAX DSP is the result of one of the longest and most intensive development phases in Audiotec Fischer’s history. From its conception in 2011 to its release in 2018, this groundbreaking digital signal processor was designed to push the limits of sound quality, precision, and functionality.

With three advanced Sigma350 series 64-Bit DSPs delivering 3.6 billion MAC operations per second, the BRAX DSP operates at a native 192 kHz sampling rate, extending the frequency range up to 80 kHz. Signal conversion is handled by Asahi Kasei’s premium A/D and D/A converters, ensuring unparalleled accuracy and clarity.

The power supply design is equally meticulous, featuring 55 independent voltage regulators that stabilize every stage for pure, distortion-free sound. A dedicated 32-Bit Advanced CoProcessor (ACO) ensures lightning-fast communication with Audiotec Fischer’s PC-Tool software and the optional DIRECTOR remote control.

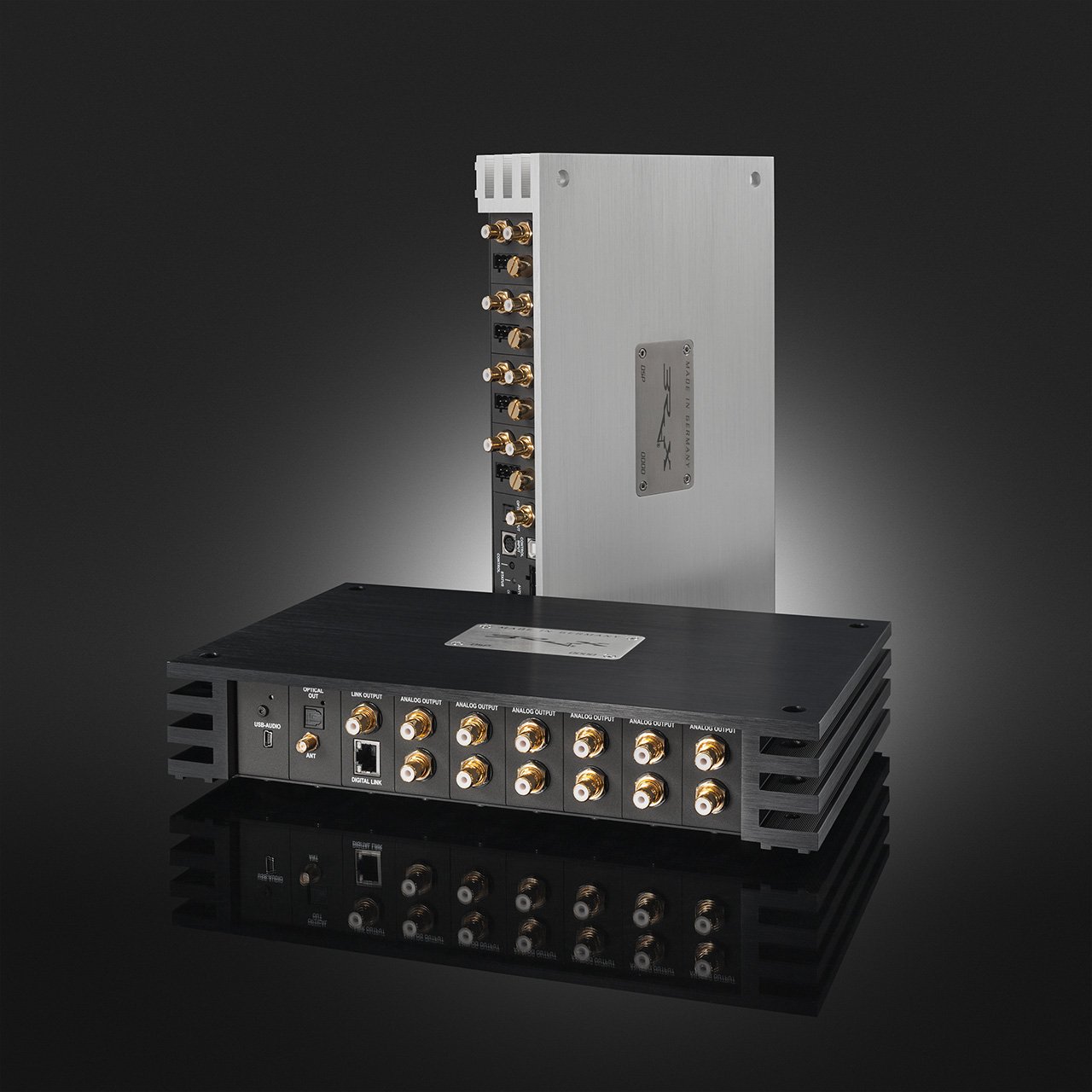

What sets the BRAX DSP apart is its unique modular input/output concept, allowing analog, digital, or mixed configurations. This flexibility ensures compatibility with virtually any system setup, both today and in the future. Every detail, from the massive heatsink in BRAX’s iconic straight-lined design to the solid-milled RCA connectors, showcases exceptional craftsmanship.

Key Features

• 3 × Sigma350 audio DSPs (64-Bit, 3.6 billion MAC operations/sec)
• Asahi Kasei “Velvet Sound” 32-Bit A/D & D/A converters
• Native 192 kHz sample rate for ultra high-resolution playback up to 80 kHz

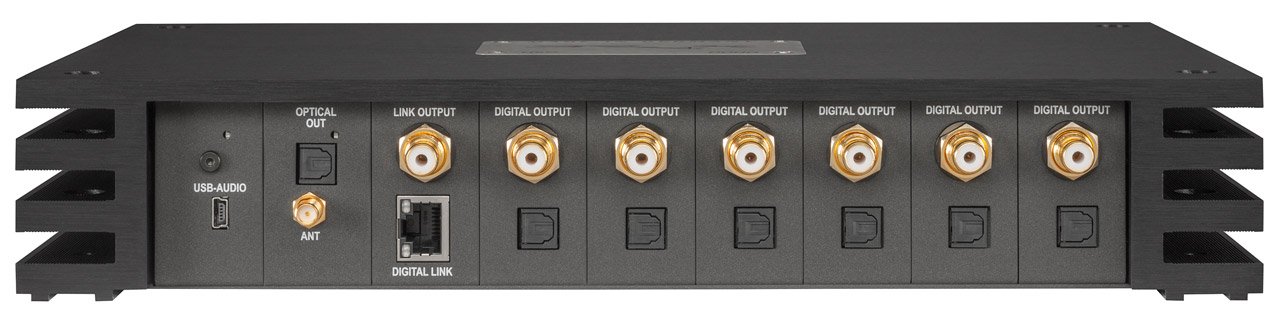

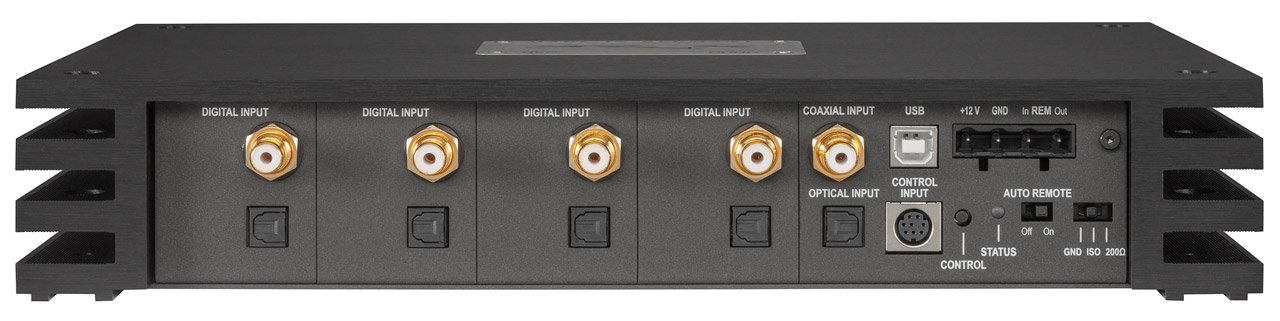

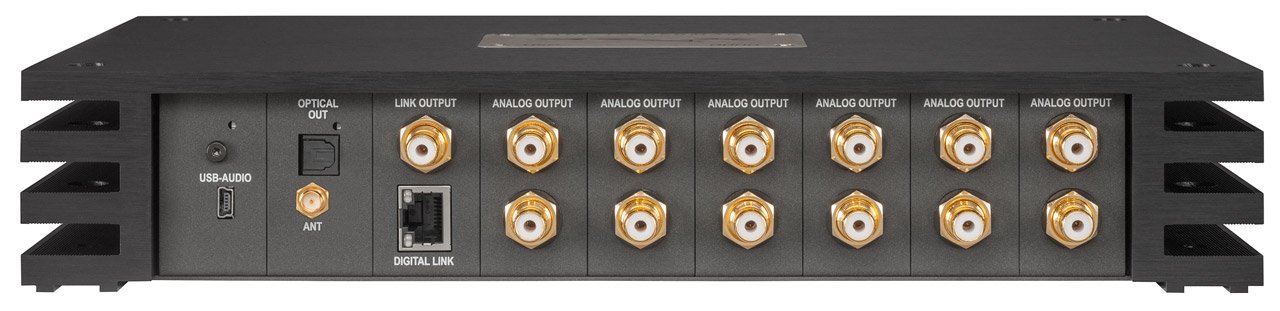

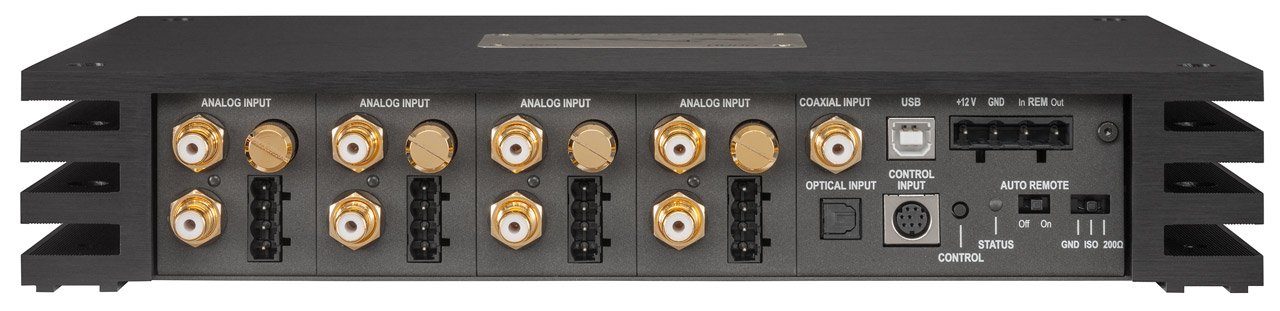

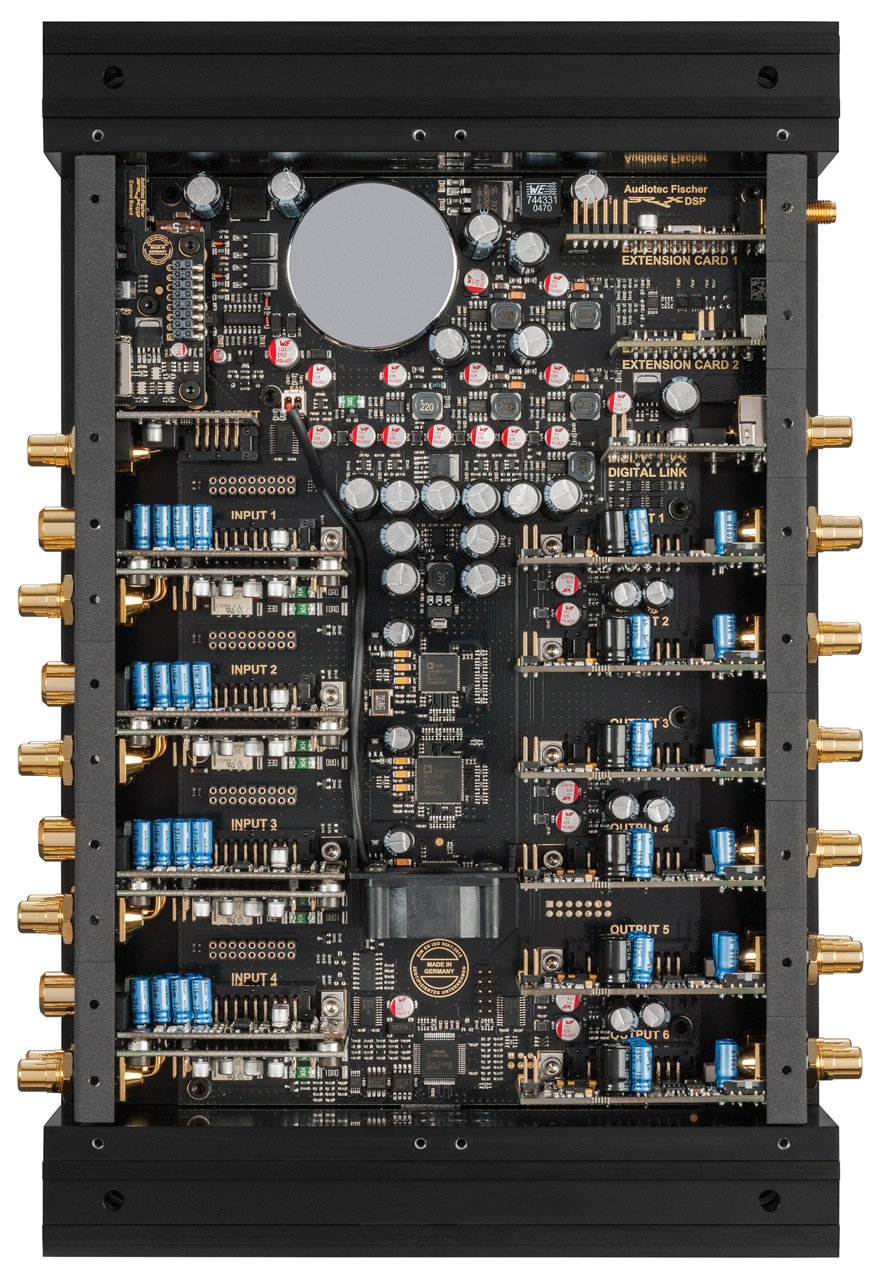

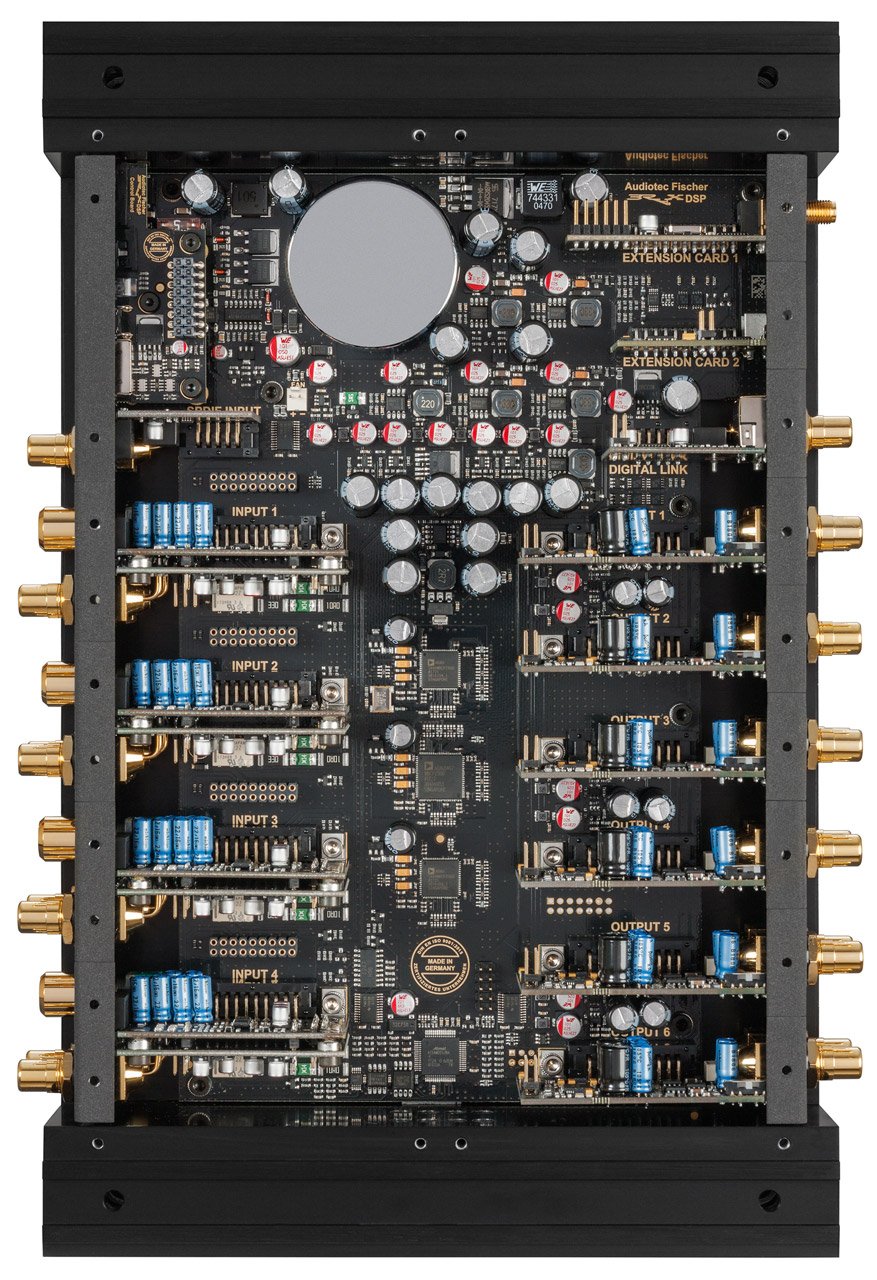

• Modular 8-channel input / 12-channel output system with interchangeable analog/digital modules
• Unique DSP sound effects: RealCenter, Augmented Bass Processing, StageXpander, ClarityXpander
• 55 voltage regulators for an ultra-stable power supply

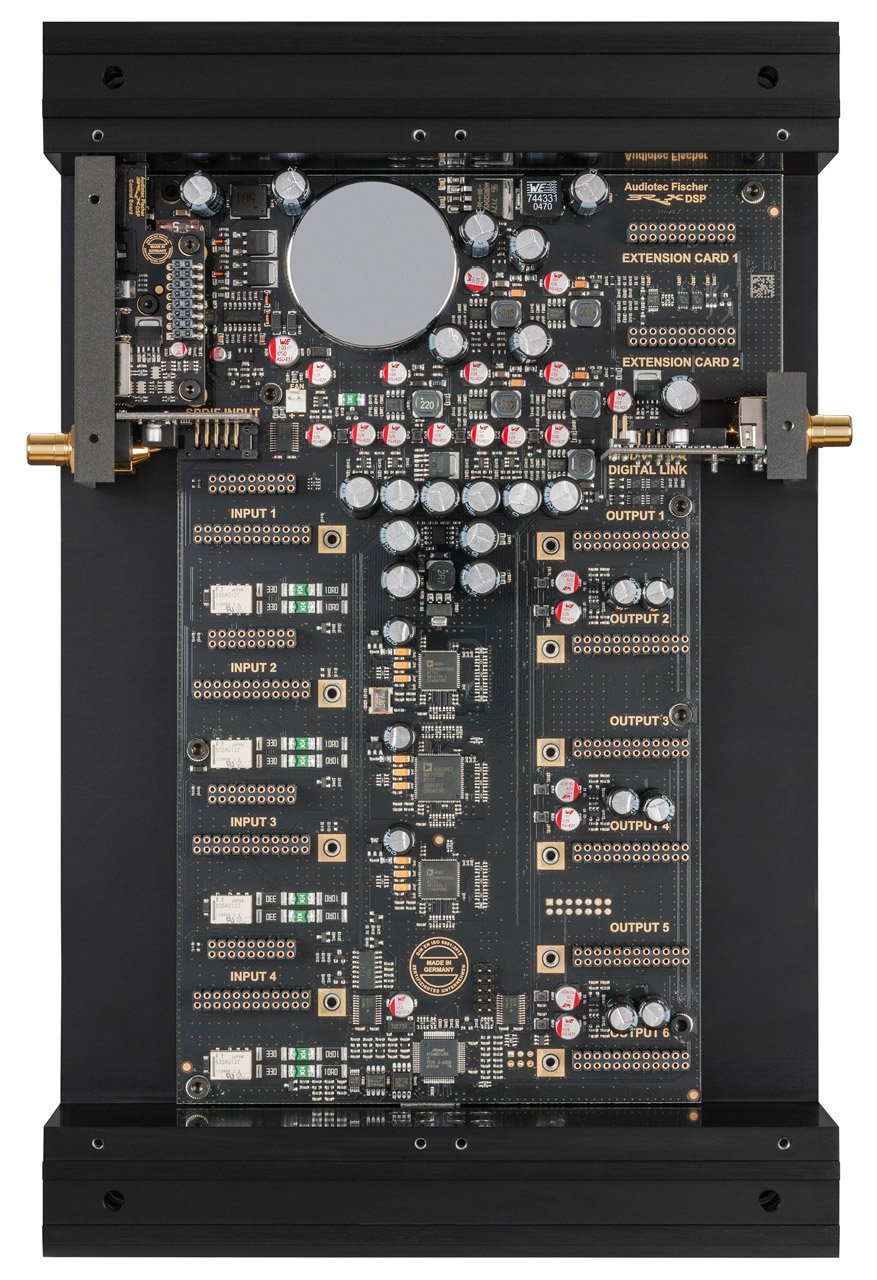

• Double BRAX Extension Card (BEC) slots for future expansions

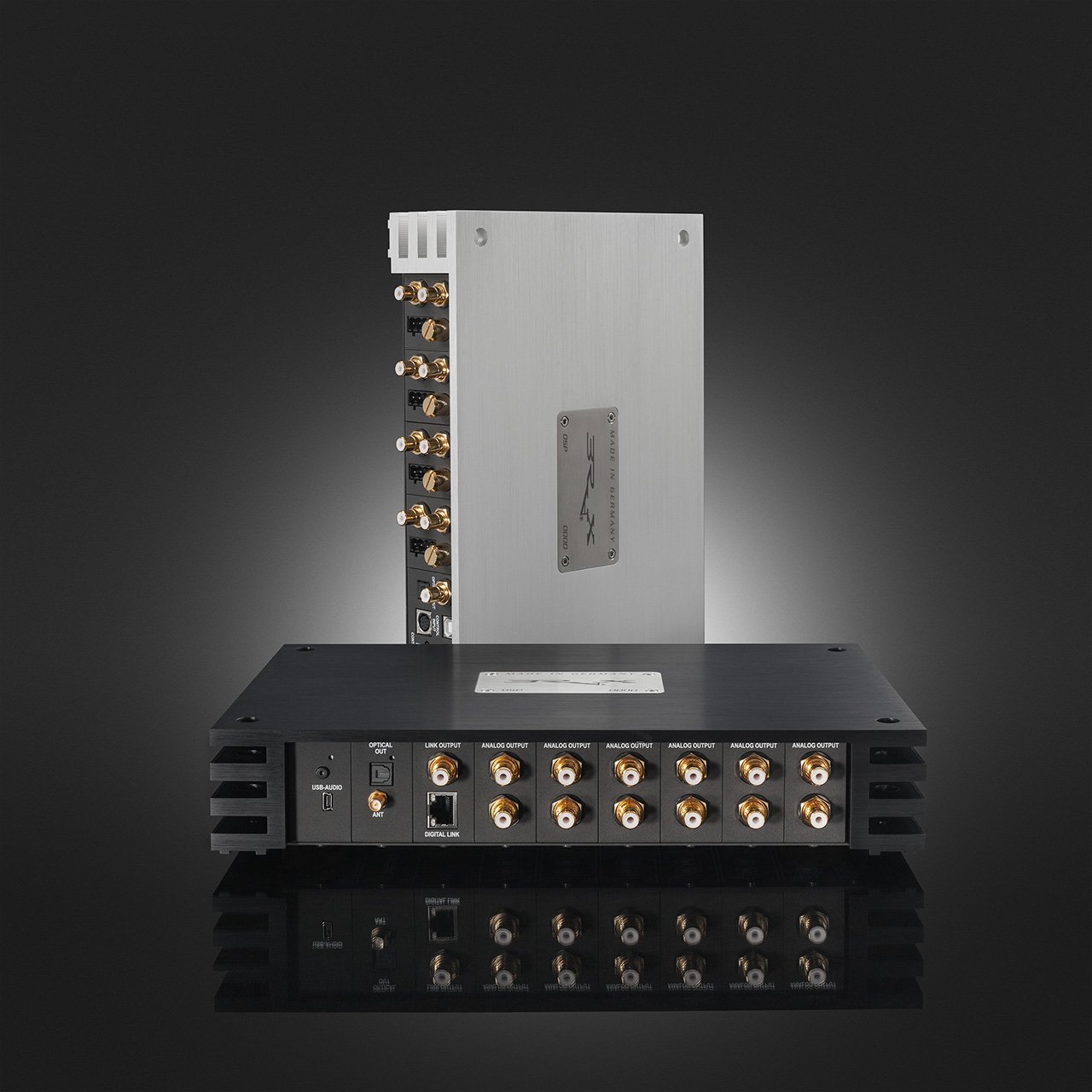

• Rock-solid aluminum housing with precision-milled details

The BRAX DSP is not just a processor—it’s a total work of art, setting a new benchmark in high-resolution car audio.
