Brax DSP Silver
₹824,999.00
The BRAX DSP Silver is the ultimate high-end digital signal processor from Audiotec Fischer, engineered to deliver uncompromising sound quality, modular flexibility, and unmatched performance. Featuring triple Sigma350 64-Bit processors, native 192 kHz sampling, premium Asahi Kasei converters, and advanced DSP sound effects, it sets a new standard for high-resolution car audio.
Description
The BRAX DSP Silver represents the pinnacle of Audiotec Fischer’s engineering expertise. From its first concept in 2011 to its launch in 2018, it underwent the most extensive development process in the company’s history. The result is a masterpiece of digital signal processing, redefining both sound quality and functionality in high-end car audio systems.
At its core, the BRAX DSP Silver integrates three powerful Sigma350 series 64-Bit DSPs, delivering an astonishing 3.6 billion MAC operations per second. This architecture allows full operation at a native 192 kHz sampling rate, extending the audio frequency response up to 80 kHz for ultra high-resolution sound reproduction. Signal conversion is handled by premium Asahi Kasei “Velvet Sound” A/D and D/A converters, ensuring unmatched clarity and precision.
To guarantee flawless performance, the power supply is stabilized by 55 independent voltage regulators, while the 32-Bit Advanced CoProcessor (ACO) manages all control and communication tasks with lightning-fast response.

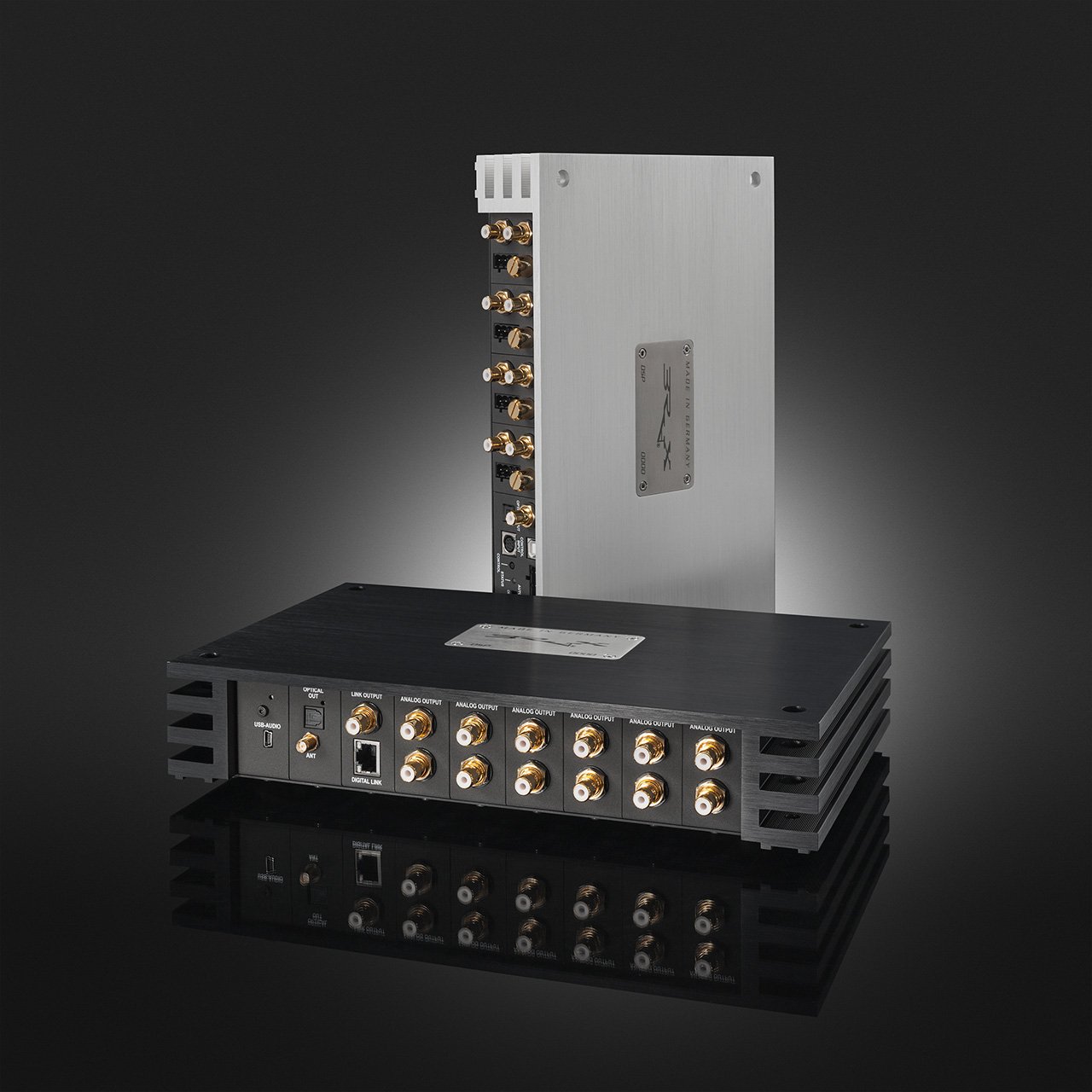

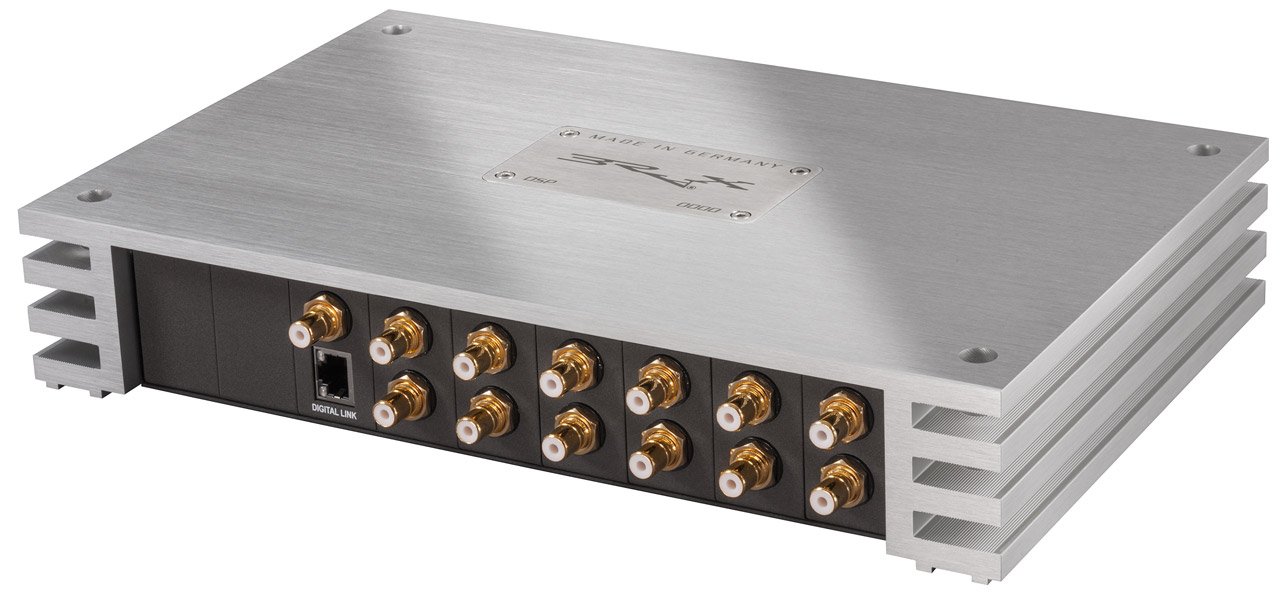

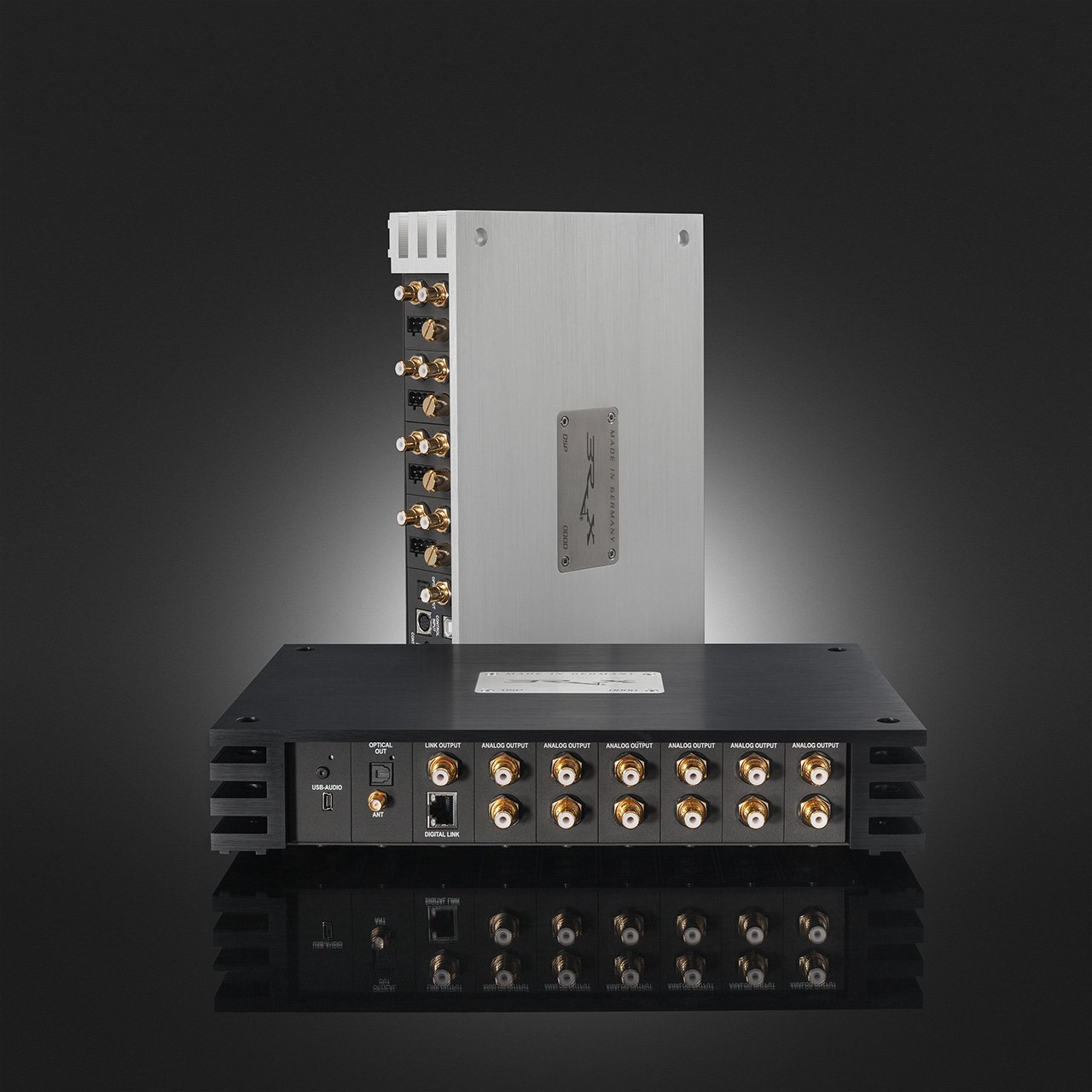

A unique highlight of the BRAX DSP Silver is its modular input/output design, allowing full customization with analog, digital, or mixed configurations. Its flexible structure ensures compatibility with virtually any system — both current and future. The housing itself reflects BRAX’s legacy of uncompromising quality, featuring a massive heatsink with the brand’s straight-lined design and precision-milled RCA connectors.
Key Features
- Triple Sigma350 64-Bit audio DSPs with 3.6 billion MAC operations/sec
- Asahi Kasei “Velvet Sound” 32-Bit A/D and D/A converters
- Native 192 kHz sampling rate with bandwidth up to 80 kHz
- Modular 8-channel input / 12-channel output system with exchangeable analog and digital modules
- Advanced DSP sound effects: RealCenter, Augmented Bass Processing, StageXpander, ClarityXpander
- 55 voltage regulators ensuring maximum stability and clean power delivery
- Double BRAX Extension Card (BEC) slots for optional modules such as Bluetooth® or USB Hi-Res audio streaming
- Rock-solid aluminum housing and precision engineering for durability
The BRAX DSP Silver is more than a processor — it is a total work of art designed for audiophiles who demand absolute perfection in car audio.
Specification
| Category | Details |
|---|---|
Inputs | Up to 8 × RCA/Cinch + 8 × highlevel speaker input OR up to 4 × stereo SPDIF (optical/coaxial) 1 × Optical SPDIF (12–96 kHz) 1 × Coaxial SPDIF (12–192 kHz) 1 × Remote In 1 × Remote control input |
| Input Sensitivity | RCA/Cinch: 1–8 VoltsHighlevel: 3.5–30 Volts |
| Outputs | Up to 12 × RCA/Cinch OR up to 6 × stereo SPDIF (optical/coaxial) at 48/96/192 kHz1 × Remote Out1 × SPDIF Link |
| Output Voltage | Adjustable 2 / 4 / 8 Volt RMS |
| Frequency Response | 5 Hz – 80,000 Hz |
| DSP Resolution | 64 Bit |
| DSP Power | 3 × 295 MHz (3.6 billion MAC operations/sec) |
| Sampling Rate | 192 kHz |
| DSP Type | 3 × Audio Signal Processor |
| Signal Converters | A/D: Asahi Kasei AK5572EN 32-Bit D/A: Asahi Kasei AK4490EQ 32-Bit |
| SNR (Digital Input) | 122 dB (A-weighted) |
| SNR (Analog Input) | 116 dB (A-weighted) |
| THD+N (Digital Input) | < 0.0004 % |
| THD+N (Analog Input) | < 0.0006 % |
| IMD (Digital Input) | < 0.0013 % |
| IMD (Analog Input) | < 0.002 % |
| Crosstalk | > 110 dB (1 kHz) |
| Operating Voltage | 10.5–16 Volts (down to 6 Volts for max. 5 sec) |
| Current Draw | 2400 mA |
| Max. Remote Output | 500 mA |
| Operating Temp. Range | –40 °C to +70 °C |
| Additional Features | Modular input/output concept, 2 × BEC Slots, Ground lift switch, 32-Bit CoProcessor, ADEP.3 circuitry, Auto remote switch, DiSAC volume control with BRAX MATRIX MX4 PRO |
| Dimensions (H × W × D) | 310 × 200 × 56 mm (12.21 × 7.87 × 2.21″) |
| Scope of Delivery | 1 × BRAX DSP Silver processor 1 × USB cable 2 × Allen keys |
