DR. ARTEX Vibration Dampers Earth Gold HD (2.6 mm)

SKU:DEE26.2018
Brand:Dr. Artex
In Stock

Original price was: ₹18,990.00.Current price is: ₹14,242.50.

Gold HD 2.6 mm Heavy Vibration Damping Mat – Bitumen-Free, High-Performance Sound Deadener

Upgrade your vehicle’s sound insulation with Gold HD 2.6 mm – a premium, bitumen-free vibration damping mat designed for superior noise reduction and corrosion protection. With a flexible, odorless design and enhanced adhesion, it’s easy to install on firewalls, floors, and wheel arches. Each box covers 3 m² (8 sheets of 75×50 cm) and features a stylish copper finish with brand markings, model class, and 50 mm cutting guides for precision fitting. Built with a self-adhesive glue layer, advanced butyl polymer, and durable aluminum foil for long-lasting performance.

Category:Tag: Brand:

Description

Description

Our newly updated range of vibration-damping materials is now completely bitumen-free, eliminating unpleasant odors and offering enhanced flexibility for easier installation. This improved formulation ensures stronger adhesion, increasing overall damping efficiency and durability. Designed to deliver superior sound insulation and long-term corrosion protection, these materials effectively safeguard your vehicle’s structure, making them ideal for automotive soundproofing and underbody protection.

Packaging Information

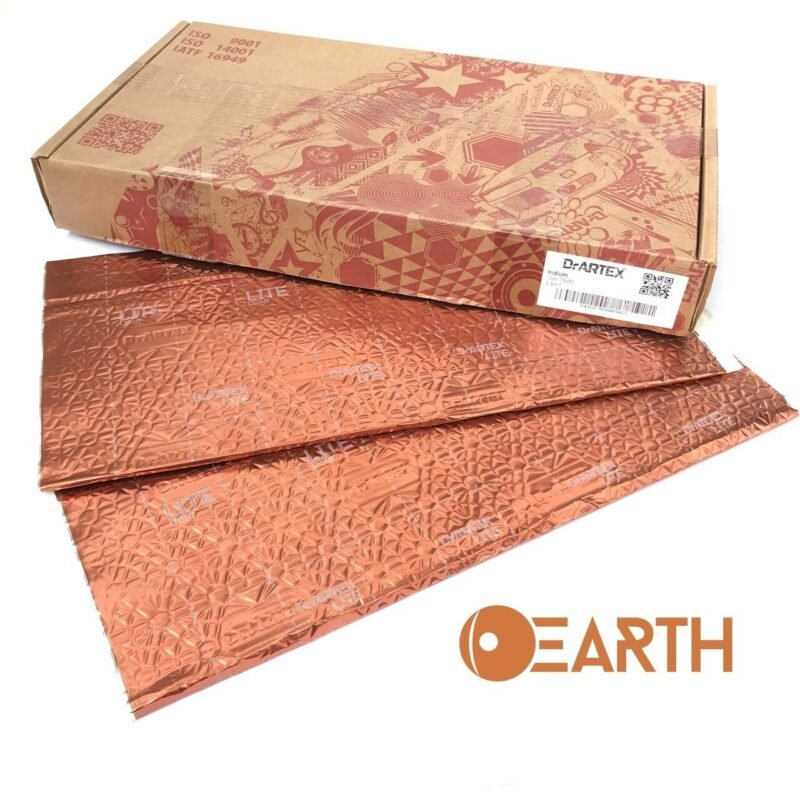

Each box of Gold HD 2.6 mm (Heavy) includes:

  • 8 sheets
  • Sheet dimensions: 75 cm × 50 cm
  • Total coverage area: 3 m² per box

Updated Design (2018 Model)

The 2018 update of our Gold HD 2.6 mm vibration-damping mat features a sleek new copper base color and several functional enhancements for easier use and identification:

  • Brand Logotype and Model Name – Clearly printed for quick product recognition
  • Model Class Label – Indicates product type (Medium / Heavy / Double) for easy selection
  • 50 mm Dotted Grid – Integrated measuring squares help simplify cutting and fitting for different surfaces. The older 2017 designs can be seen here:

Application areas & Composition

The Gold HD 2.6 mm Heavy Vibration Damping Mat is specially designed for critical areas in a vehicle where noise and vibration are most intense. Ideal for installation on the firewall, floor panels, and wheel arches, this mat provides excellent sound insulation and long-term protection against corrosion. Its user-friendly design and high-performance build make it perfect for both professional and DIY automotive applications.

Constructed with a three-layered material, the mat features a self-adhesive glue layer protected by anti-adhesive paper for easy installation, a core of advanced composite butyl polymer for maximum vibration damping, and a durable aluminum foil top layer that adds heat resistance and strength. This composition ensures superior noise reduction, durability, and protection under all driving conditions.

Specification

Name of Index

Value

Testing Method

Material Thickness (mm)

2.6+-5%

GOST 17073-71

Foil (Outer) Thickness (µm)

90+-10%

GOST 17073-71

Mass per m² (kg)

4.1+-10%

GOST 17073-71

Mechanical Loss Factor on metal plate with
thickness 1mm at temperature less than
+20ºС ()

>0.33

DIN EN ISO 6721- 3:1994 (method-А)

Fire risk, burning rate (mm/min)

Non-flammable, <100

ISO 3795-76

Durability of connection between the
material and the metal surface during
flaking-off (N/cm)

>6

ISO 813:2010

Operating Temp. Range (°C)

-40 to +90

–

Max. Temp. Intermittent (°C)

+150

–

Package Dimension (W*L*H) (cm)

29*55*7

–

Package weight (kg,avg)

12.40 +-10%

–

Package volume (m³,avg)

0.0112 +-10%

–
