Focal Poly Glass SUB P 30 DB
₹29,999.00

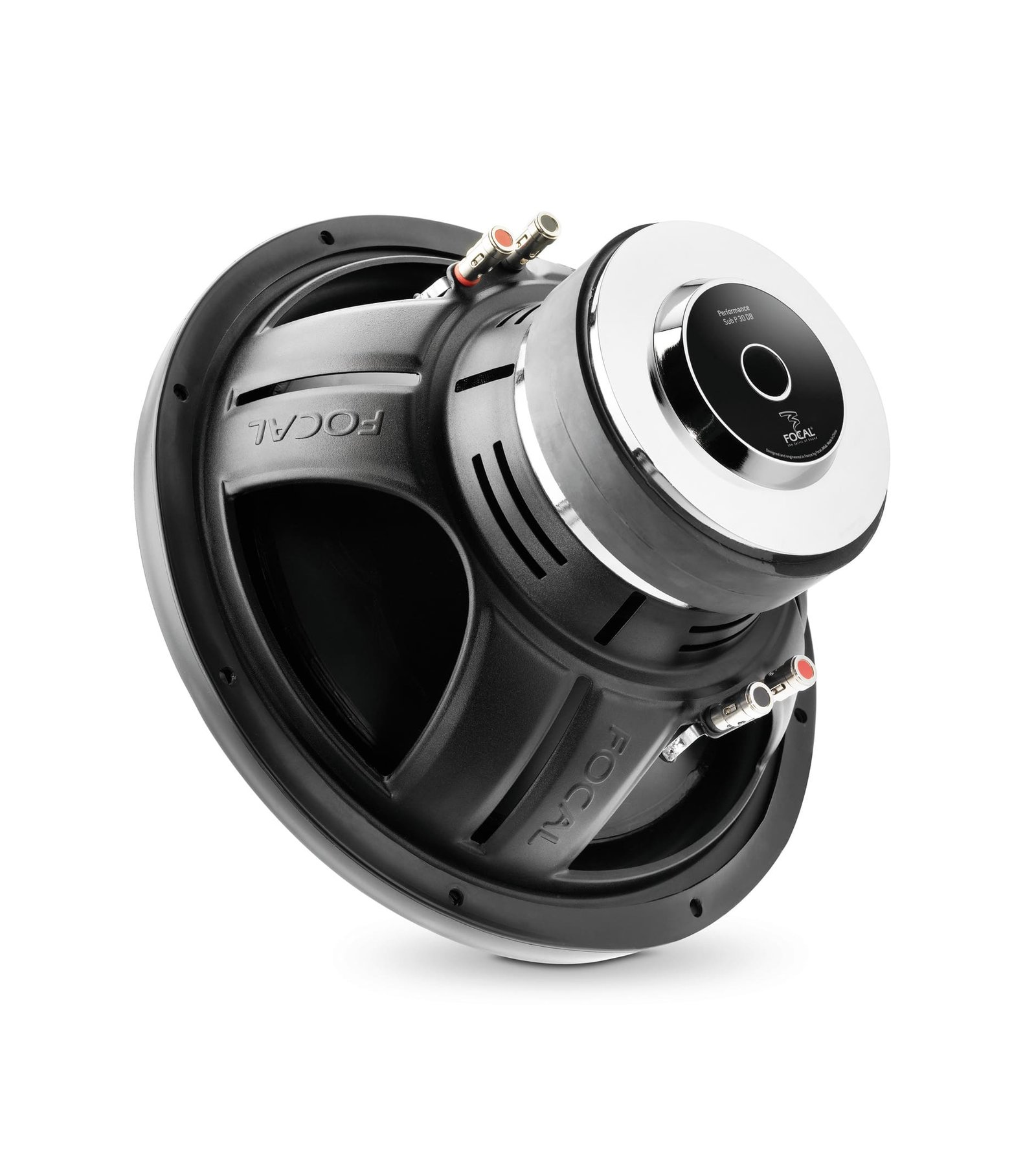

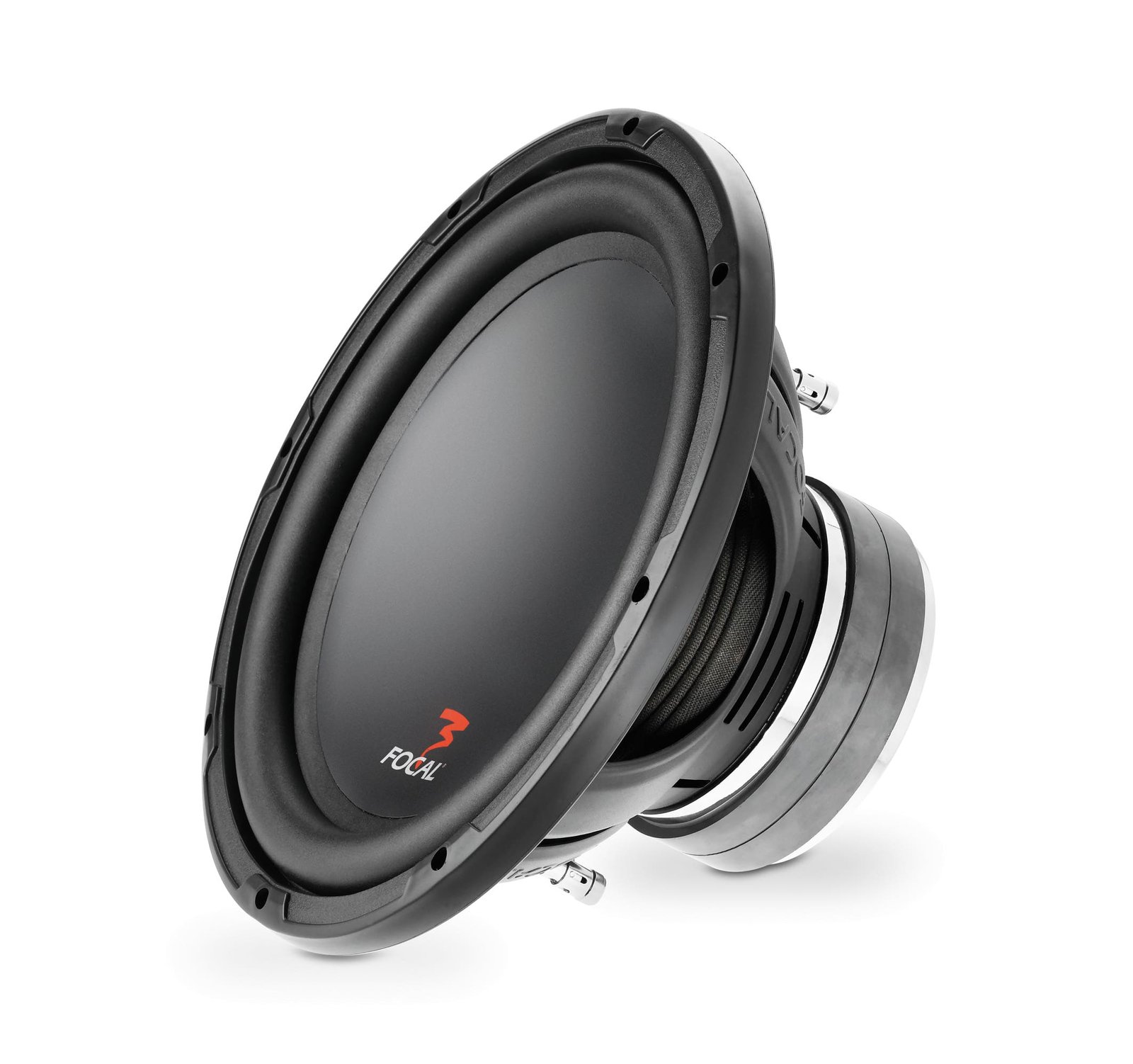

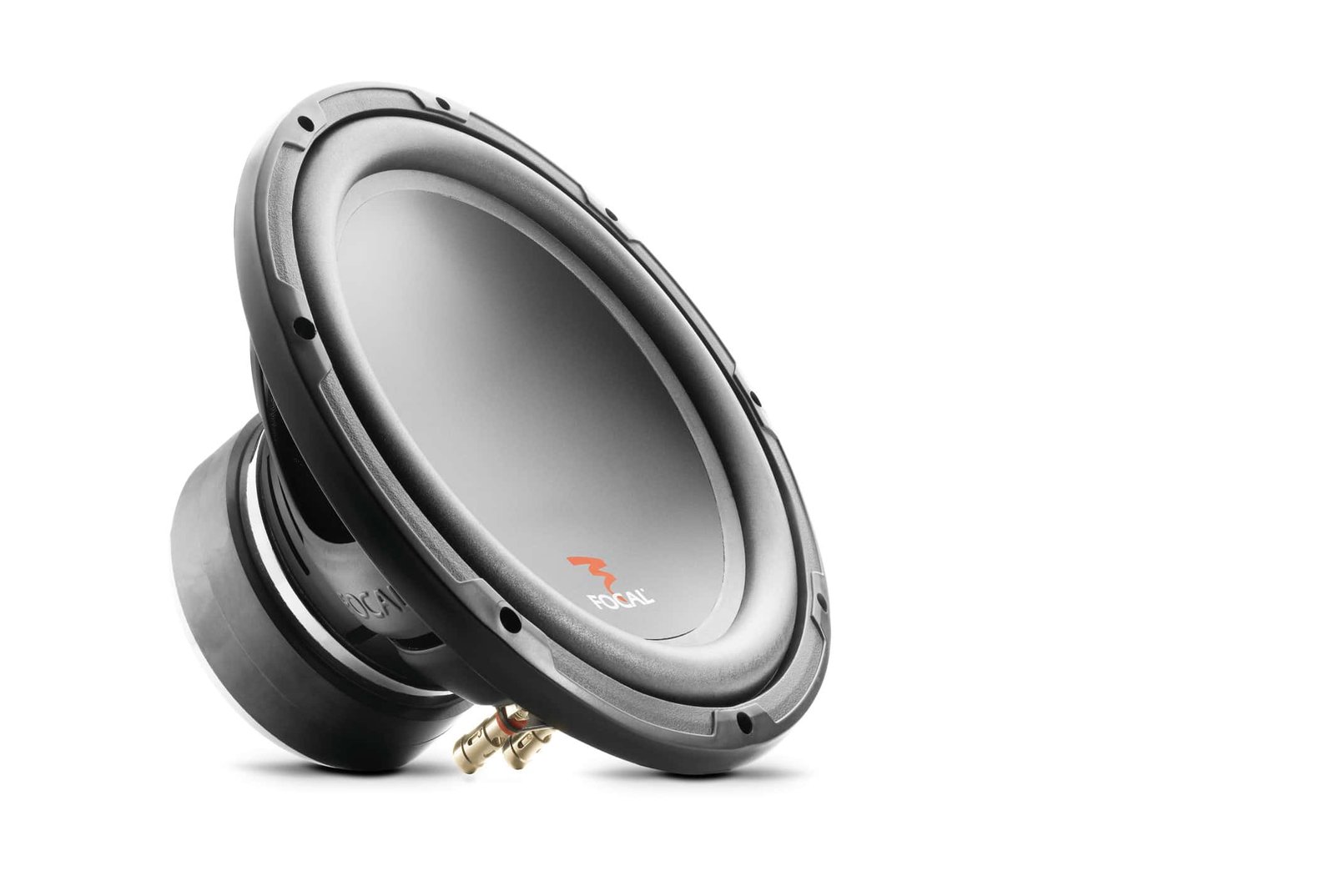

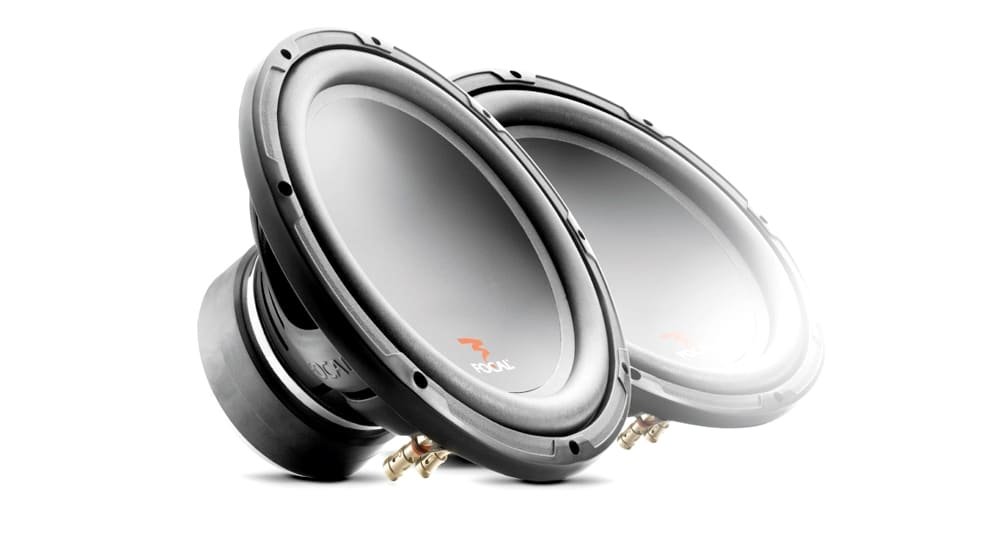

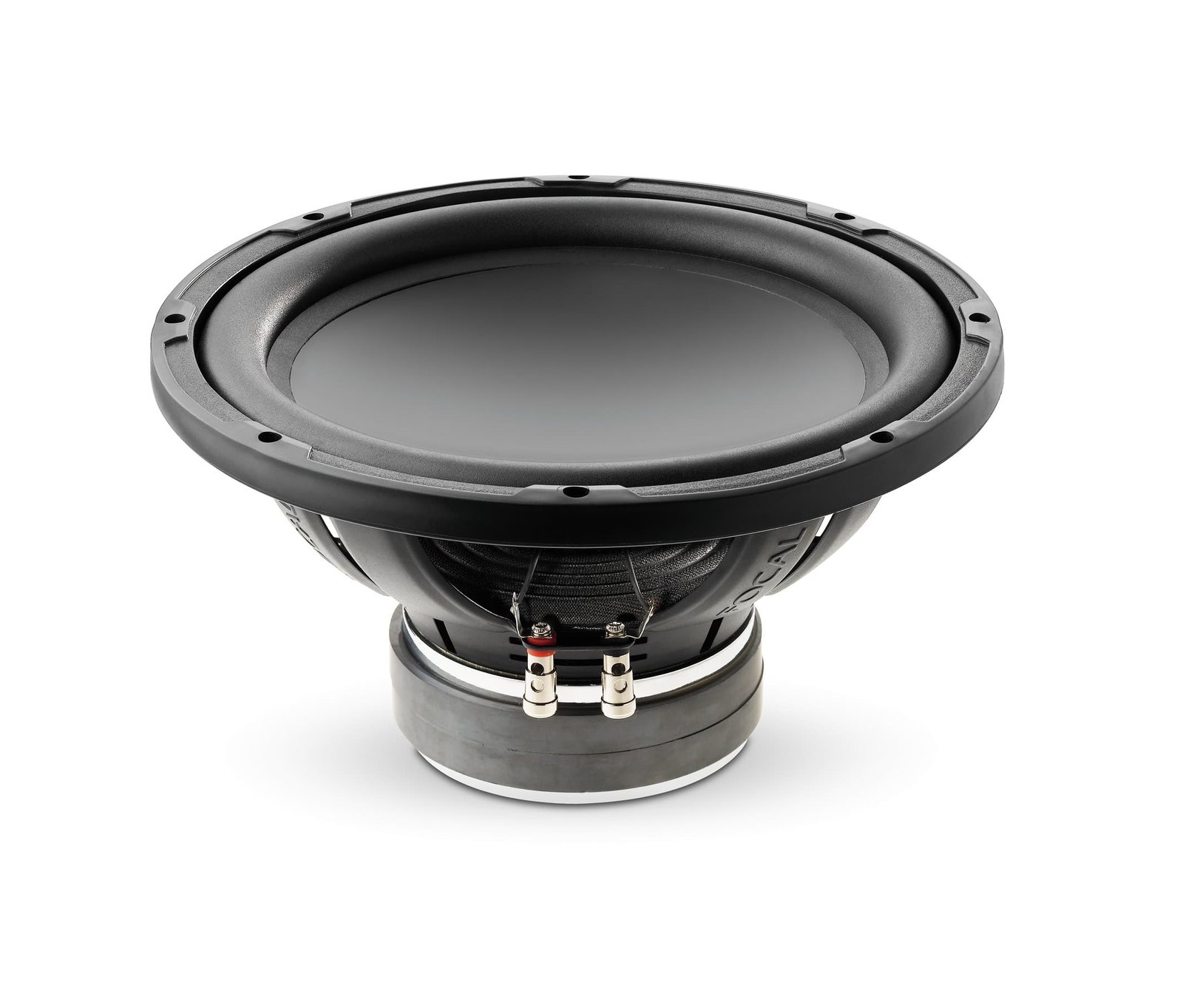

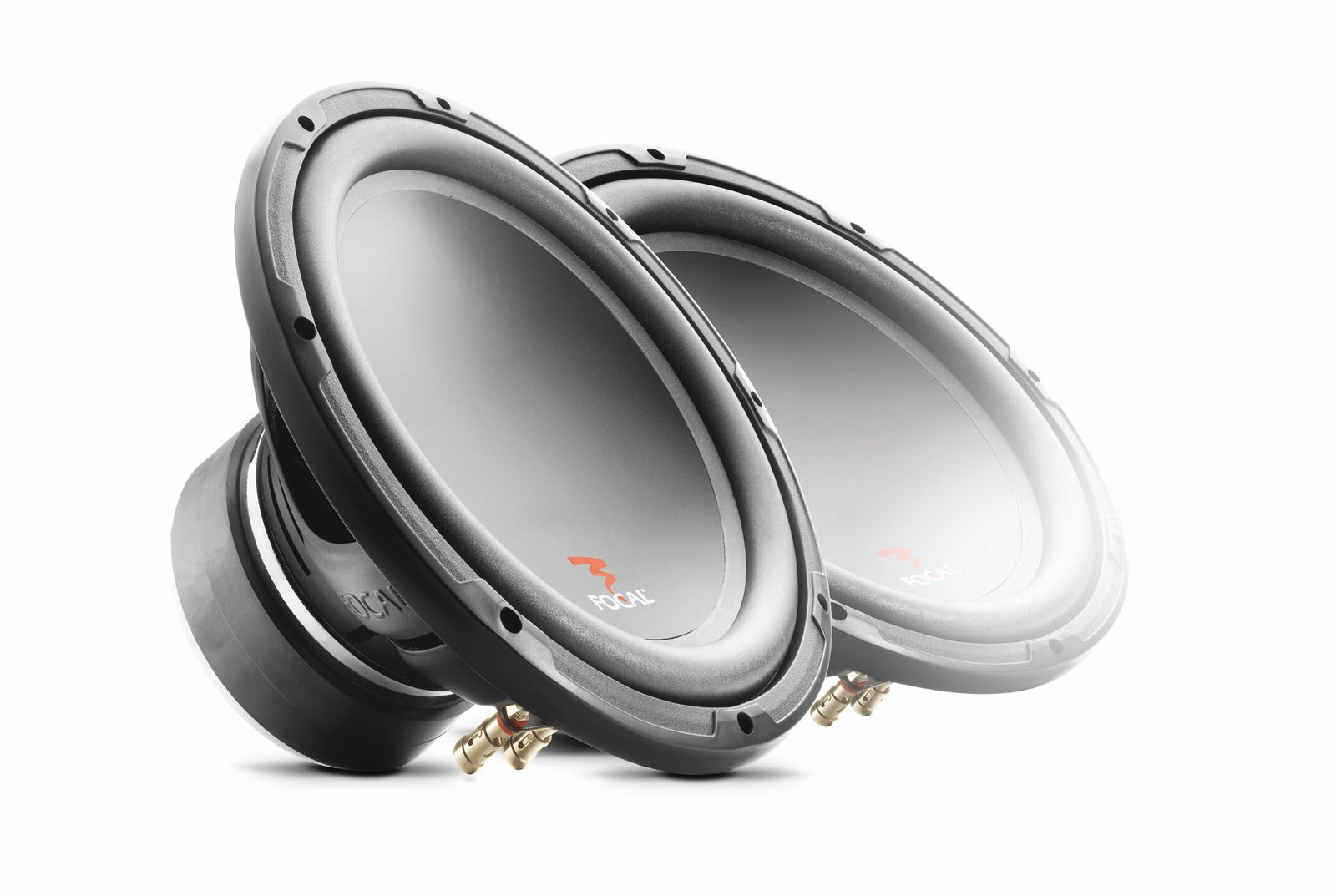

Performance Sub P30 DB – Premium Dual Voice Coil Subwoofer
Elevate your audio system with the Performance Sub P30 DB, a professional-grade 12″ (30cm) subwoofer engineered for audiophiles seeking thunderous, articulate bass. Featuring dual 4-ohm voice coils for flexible installation options and a massive 145mm dual ferrite magnet structure, this subwoofer delivers exceptional output with remarkable efficiency. The 60mm Kapton-former voice coil handles substantial power while advanced ventilation and spider decompression technology ensure reliable performance under demanding conditions. Compatible with both sealed and vented enclosures, its butyl surround and precision engineering combine to reproduce frequencies as low as 27Hz with outstanding clarity. Transform your listening experience with deep, controlled bass that brings music and movies to life.
Description
What makes the difference
- 2 x 4 Ohms dual voice-coil – Easy amplifier connection
- Butyl surround – Excellent reliability
- 5¹¹/₁₆” (145mm) dual ferrite magnet – High efficiency
- Spider decompression – Voice-coil ventilation
- 2³/₈” (60mm) voice-coil on Kapton former – High power handling
technical characteristics
- Diameter: 12″ (300mm)
- Voice-coil diameter: 2³⁄₈” (60mm)
- Voice-coil height: 1¹⁄₈” (28mm)
- Magnet: 5¹¹⁄₁₆” (145mm)
- Frequency response: 27Hz – 500Hz
- Impedance: 2 x 4 Ohms
Specification
Nominal Power
300W RMS
Maximum Power
600 W
Sensitivity (2,83V/1m)
93.4dB
Cone
Polypropylene
Surround
Butyl
Nom. impedance
4 Ohms
DC Resistance
2×2.4 Ohms
VC diameter
60mm (2 3/8“)
VC height
28mm (11/8“)
Former
Kapton
Layers
4
Wire
Copper
Inductance
0.91mH
Xmax
9mm (03/8“)
Magnet d x h
145x32mm (511/16
x 11/4)”
Magnet Weight
1600g (3.53Ib)
Flux Density
–
Gap height
10mm
Net Weight
5700g (12.57Ib)
Fs
29.4Hz
Vas
56.76 I
Qts
0.427
Qes
0.46
Qms
6
Re
1.7 Ohm
Sd
510.7 cm2
Cas
4.04E-7m5/N
Mas
72.51 kg/m4
Ras
2232.52 Ohms.ac
Cms
1.55E-4m/N
Mms
189.13g
Rms
5.823kg/s
Ces
1383.43mF
Les
21.18mH
Res
23.48 Ohms
BI
11.69 N/A
SPL
86.8 dB/W/m
Load
Volume
Port Diameter
Port Length
Vented
35
8 (31/8“)
20 (77/8“)
Vented
45
8 (31/8“)
17 (611/16“)
Vented
60
10 (315/16“)
25 (913/16)”
Load
Volume
F-3(Hz)
Ql
Sealed
25
49
0.77
Sealed
35
48.7
0.69
Sealed
45
49.1
0.64
