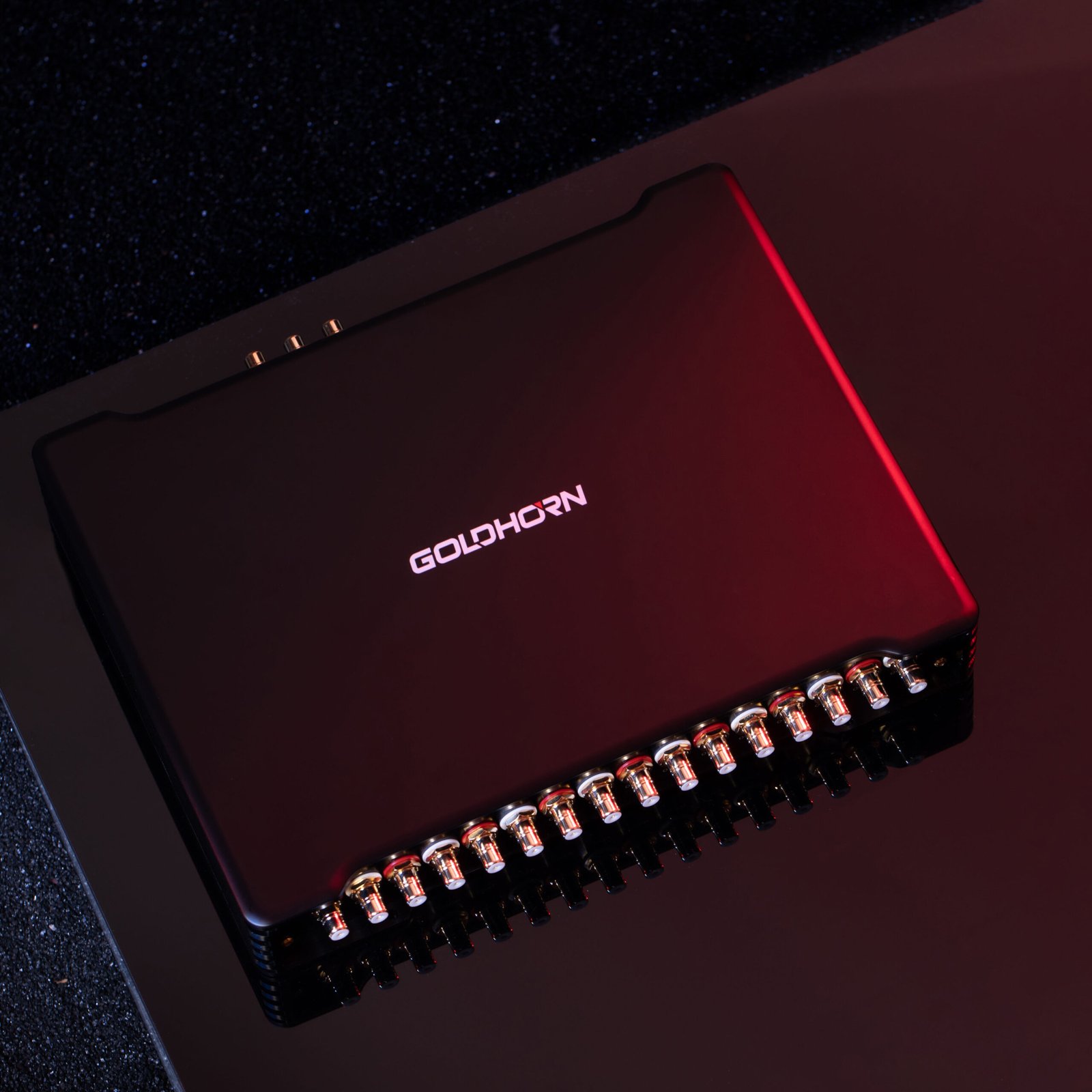

Goldhorn Stand-Alone DSP DSP 16 Ultra

Flagship Audiophile DSP for Uncompromised Music Fidelity

The Goldhorn DSP16 Ultra is the crown jewel of high-end car audio processors—engineered to redefine how music is experienced in your vehicle. This flagship standalone DSP is powered by two ES9038Pro DACs, known for delivering studio-grade digital-to-analog conversion at 32-bit / 768 kHz PCM.

At its heart lies a 3-core 295 MHz ADI DSP processor, backed by a femtosecond clock system that ensures extraordinary timing accuracy and jitter elimination. The result? A soundstage so precise and immersive, it feels like a live concert inside your cabin.

With 16 high-level inputs and 16 RCA outputs, the DSP16 Ultra easily integrates into advanced multi-channel systems, while the 0.005ms delay step offers pinpoint timing control for perfect phase alignment. It also supports OTG playback, allowing your smartphone to deliver high-res files directly to the processor.

Whether you’re into high-energy rock or refined classical compositions, the DSP16 Ultra transforms every note into a musical masterpiece, taking your in-car listening experience to a new realm of luxury and depth.

Features

• Hi-End Audio Components:
  • 2 x ES9038Pro DACs (32-bit / 768 kHz PCM)
  • AKM Hi-End 768 kHz / 32-bit ADC
  • Professional-grade Op Amps
  • High-temp electrolytic capacitors (105°C rated)
  • Ultra-precise femtosecond clock system
• Triple-Core Professional DSP:
  • 3-Core 295 MHz ADI chip with advanced signal processing
  • 30-band EQ, crossover, phase, and delay for each output channel
  • 5-band EQ and delay for each input channel
  • Output frequency response: 10 Hz ~ 80 kHz (±1dB)
  • Ultra-precise 0.005ms delay resolution
• Flexible Connectivity:
  • 16 x High-Level Inputs
  • 2 x AUX Inputs
  • 16 x RCA Outputs
  • 1 x Optical Input
  • 1 x Coaxial Input (up to 192 kHz / 24-bit)
  • 1 x USB DAC Input (up to 192 kHz / 32-bit)
• Wireless & Streaming Support:
  • Bluetooth® 5.0 with aptX HD, aptX, AAC, and SBC codecs
  • Phone OTG playback support for direct high-res audio
• Advanced Audio Features:
  • Dynamic Loudness Control for consistent tonal balance
  • Goldhorn SKYATOM Surround System for immersive sound
