Original price was: ₹79,999.00.₹59,999.25Current price is: ₹59,999.25.

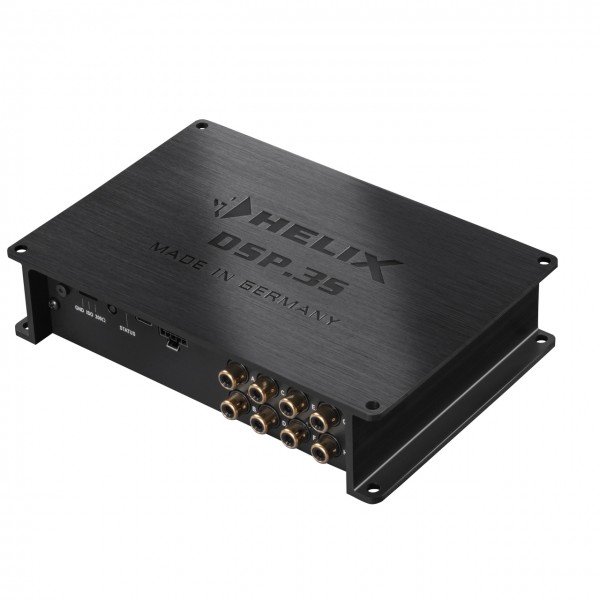

Helix DSP .3S
The HELIX DSP.3S is a cutting-edge 8-channel digital signal processor featuring native 96 kHz high-resolution audio processing, advanced Burr-Brown converters, and a powerful 64-bit DSP. Featuring a Smart Control Port, coaxial/optical inputs, and proprietary sound tuning features, it delivers unmatched precision and flexibility for premium in-car audio systems.
The HELIX DSP.3S sets a new benchmark in car audio signal processing. With advanced 64-bit architecture, native 96 kHz resolution, and Burr-Brown A/D and D/A converters, it ensures pristine audio quality. Ideal for high-resolution playback, it blends innovative engineering with seamless integration into OEM or aftermarket systems.
64-Bit Sigma350 DSP
Powered by a cutting-edge Sigma350 DSP chip, the DSP.3S handles over 1.2 billion operations per second, delivering ultra-precise, high-resolution audio with a bandwidth beyond 40 kHz.
ACO – 32 Bit Co-Processor
An integrated 32-bit ACO CoProcessor ensures ultra-fast control, lightning-quick switching between up to 10 sound presets, and reliable system communication. It supports future software upgrades, enhancing system adaptability.
96 kHz Native Signal Processing
Unlike most processors capped at 48 kHz, the DSP.3S doubles the sampling rate to 96 kHz, allowing playback of full-bandwidth high-res audio with unmatched detail and clarity.
RealCenter
Creates a focused and stable soundstage by dynamically generating a unique center signal from the stereo image, enhancing the experience for both driver and passenger.
Augmented Bass Processing
Combines Dynamic Bass Enhancement and SubXpander to boost low-end performance. Delivers deeper, cleaner bass without distortion—even at high volumes.
StageXpander
Dramatically widens the stereo soundstage without compromising localization, making music feel more immersive in constrained in-car environments.
ClarityXpander
Enhances treble brilliance with added harmonics for more transparent highs, with adjustable intensity and optional dynamic control for the center channel.
Smart High-Level Input with ADEP.3
Advanced diagnostics protection enables seamless connection to factory head units without triggering errors or losing functions like fader control.
Dual Digital Inputs
Now includes both optical (up to 96 kHz) and coaxial (up to 192 kHz) SPDIF inputs, offering flexibility for connecting high-resolution digital sources.
Smart Control Port (SCP)
Future-proof SCP allows multifunctional accessory connections and provides power directly, supporting clean and compact installations.
HEC Slot Expansion
Add-on support for modules like Bluetooth® HD audio, high-res USB audio streaming, or other system expansions through a dedicated HEC slot.
DSP PC-Tool V4
Powerful yet intuitive tuning software enables precise, detailed configuration of the audio system, including EQ, time alignment, crossovers, and custom routing.
Input Signal Analyzer (ISA)
Visualizes and corrects pre-EQ’d signals from OEM radios, ensuring optimal integration and signal neutrality before processing.
Flexible Routing & Memory
Independent routing matrices for analog, digital, and auxiliary inputs with 10 storable sound setups make it versatile for multiple configurations.
Power Save Mode
Automatically powers down connected amplifiers after 60 seconds of signal inactivity, reducing battery drain in modern vehicles with extended standby radio states.
Start-Stop Ready
Maintains stable operation even if vehicle voltage drops as low as 6 volts during engine cranking.
Auto Digital Signal Detection
Seamlessly switches between analog and digital inputs based on signal presence. Manual override available via optional remote control or PC software.
Inputs
Input sensitivity
Outputs
Output voltage
6 Volts
Frequency response
10 Hz – 44,000 Hz
DSP resolution
64 Bit
DSP power
295 MHz (1.2 billion MAC operations/second)
Sampling rate
96 kHz
DSP type
Audio signal processor
Signal converters
Signal-to-noise ratio digital input
112 dB (A-weighted)
Signal-to-noise ratio analog input
107 dB (A-weighted)
Total harmonic distortion (THD+N) digital input
< 0.0008 %
Total harmonic distortion (THD+N) analog input
< 0.002 %
IM distortion (IMD) digital input
< 0.003 %
IM distortion (IMD) analog input
< 0.005 %
Crosstalk
> 90 dB
Operating voltage
9.6 – 17 Volts (max. 5 sec. down to 6 Volts)
Power rating
DC 12 V ⎓ 3 A max.
Current draw
< 450 mA
Max. remote output current
500 mA
Additional features
HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D)
40 x 177 x 120 mm /
1.58 x 6.97 x 4.72”
1 x Signal processor DSP.3S
1 x Control Input-to-SCP adaptor
1 x USB cable
1 x Mounting material
1 x Instruction manual
