HELIX COMPOSE Ci3 W165FM-S2
Original price was: ₹19,999.00.₹14,999.25Current price is: ₹14,999.25.

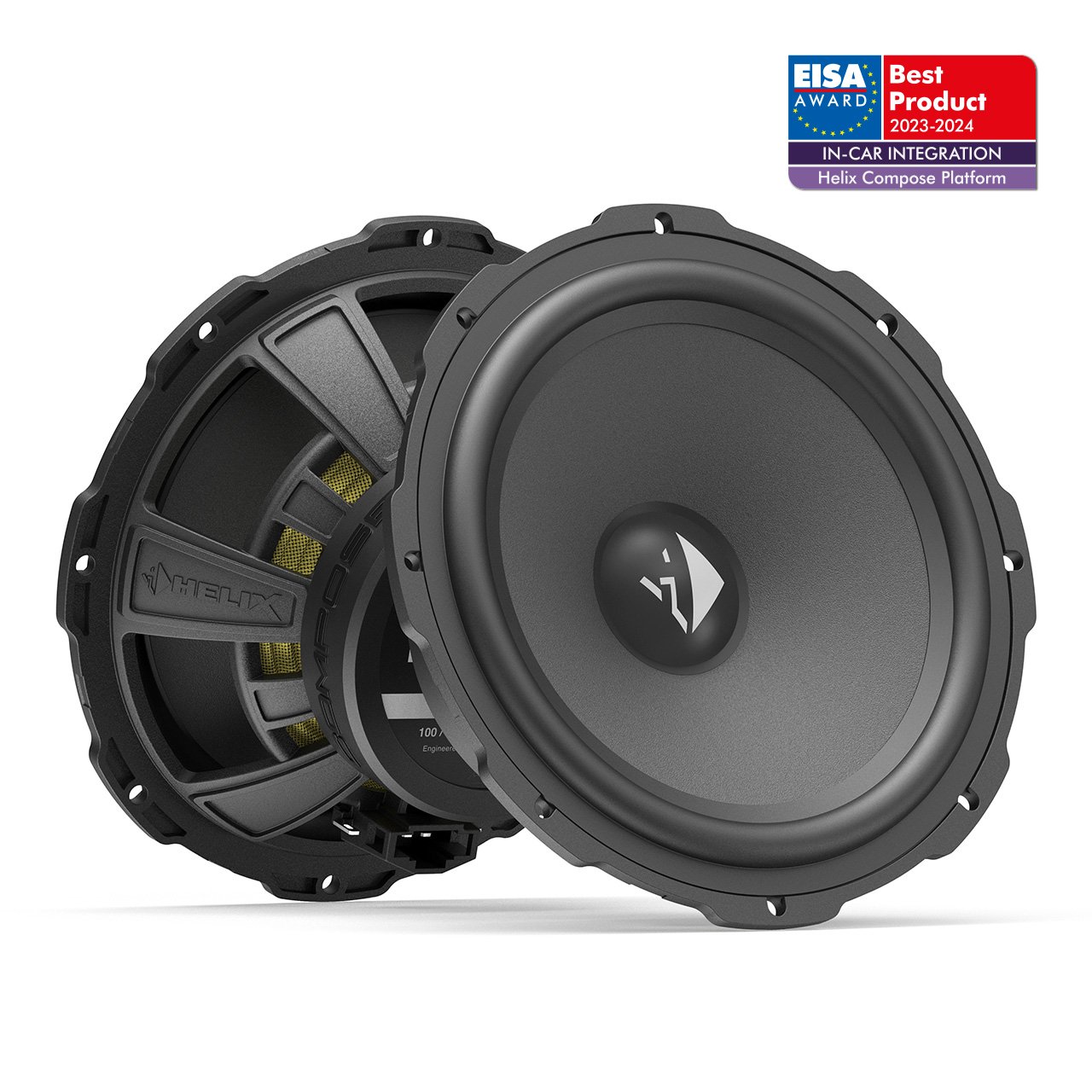

HELIX Ci3 W165FM-S2 – 6.5” / 165 mm performance midbass speaker from the HELIX COMPOSE series, featuring Cenosphere-coated paper cone, high-efficiency 2 Ohm technology, and ProConnect terminals for professional, secure installation. Delivers powerful, detailed midbass for any car audio system.
Description
The HELIX Ci3 W165FM-S2 Midbass Speaker is part of the HELIX COMPOSE i3 series, designed to meet the increasing demands of modern automotive audio. Following the motto “developed inside the vehicle, for the vehicle,” this series combines innovative materials, advanced engineering, and practical automotive technologies to deliver high efficiency, outstanding sound quality, and dynamic performance in any vehicle.
Price-Performance Highlight
- Part of the i3 series, providing excellent sound quality at a competitive price.
- Implements mechanical technologies from the i7 series for enhanced reliability and practical benefits.
- Impedance matched for optimal compatibility with HELIX and MATCH amplifiers, ensuring maximum power output.
High Efficiency & Sound Quality
- 2 Ohm technology ensures maximum amplifier output and enhanced sound pressure.
- Cenosphere-coated paper cone improves stiffness and internal damping, offering precise and detailed midbass reproduction.
- High-tech polymer basket reinforced with glass beads ensures rigidity, minimal self-resonance, and thermal resistance, allowing for compact installation in tight spaces.
Professional Integration
- ProConnect terminal: Automotive-grade connector for safe use with conventional speaker cables or fast, secure connection via WireKits, with reverse polarity protection.
- FlexMount165: Allows acoustically optimized installation in the vehicle’s original mounting locations.
- WireKits: Plug-and-play connection to the original wiring harness for non-destructive installation.
Key Features
- 6.5” / 165 mm performance midbass speaker with Cenosphere-coated paper cone.
- High-efficiency 2 Ohm technology for maximum amplifier output.
- Rubber surround for high linear cone excursion.
- Polyurethane dustcap for optimized upper midrange response.
- 1” / 25 mm voice coil for high power handling.
- ProConnect automotive-grade terminal for secure, fail-safe installation.
- Powerful magnet system for high efficiency and optimum impulse response.
- Compatible with FlexMount165 adaptors and optionally available WireKits for professional integration.
Compatibility
- FlexMount165
- WireKits
Scope of Delivery
- 2 x Ci3 W165FM-S2 Midbass Speakers
- 2 x Mounting Material
Specification
| Parameter | Specification |
|---|---|
| Power Handling RMS / Max | 100 / 150 Watts |
| Impedance (Z) | 2 Ω |
| DC Resistance (Re) | 1.8 Ω |
| Frequency Response | 60 Hz – 3,500 Hz |
| Resonance Frequency (Fs) | 74 Hz |
| Mechanical Q Factor (Qms) | 3.92 |
| Electrical Q Factor (Qes) | 0.92 |
| Total Q Factor (Qts) | 0.74 |
| Compliance (Cms) | 370 µm/N |
| Equivalent Air Volume (Vas) | 8.8 L |
| Force Factor (B*l) | 3.5 Tm |
| Sensitivity (SPL) | 94 dB @ 2.83 V / 1m 88 dB @ 1W / 1m |
| Cone Area (Sd) | 133 cm² |
| Moving Mass (Mms) | 12.5 g |
| Cone Material | Paper with Cenosphere coating |
| Mechanical Resistance (Rms) | 1.48 kg/s |
| Voice Coil Diameter | 25 mm |
| Voice Coil Winding Height | 11.3 mm |
| Max Linear Excursion (Xmax) | +/- 3.7 mm |
| Outer Diameter | 165 mm / 6.5” |
| Installation Diameter | 142 mm / 5.59” |
| Installation Depth | 60.7 mm / 2.39” |
