HELIX COMPOSE Ci7 M100FM-S3

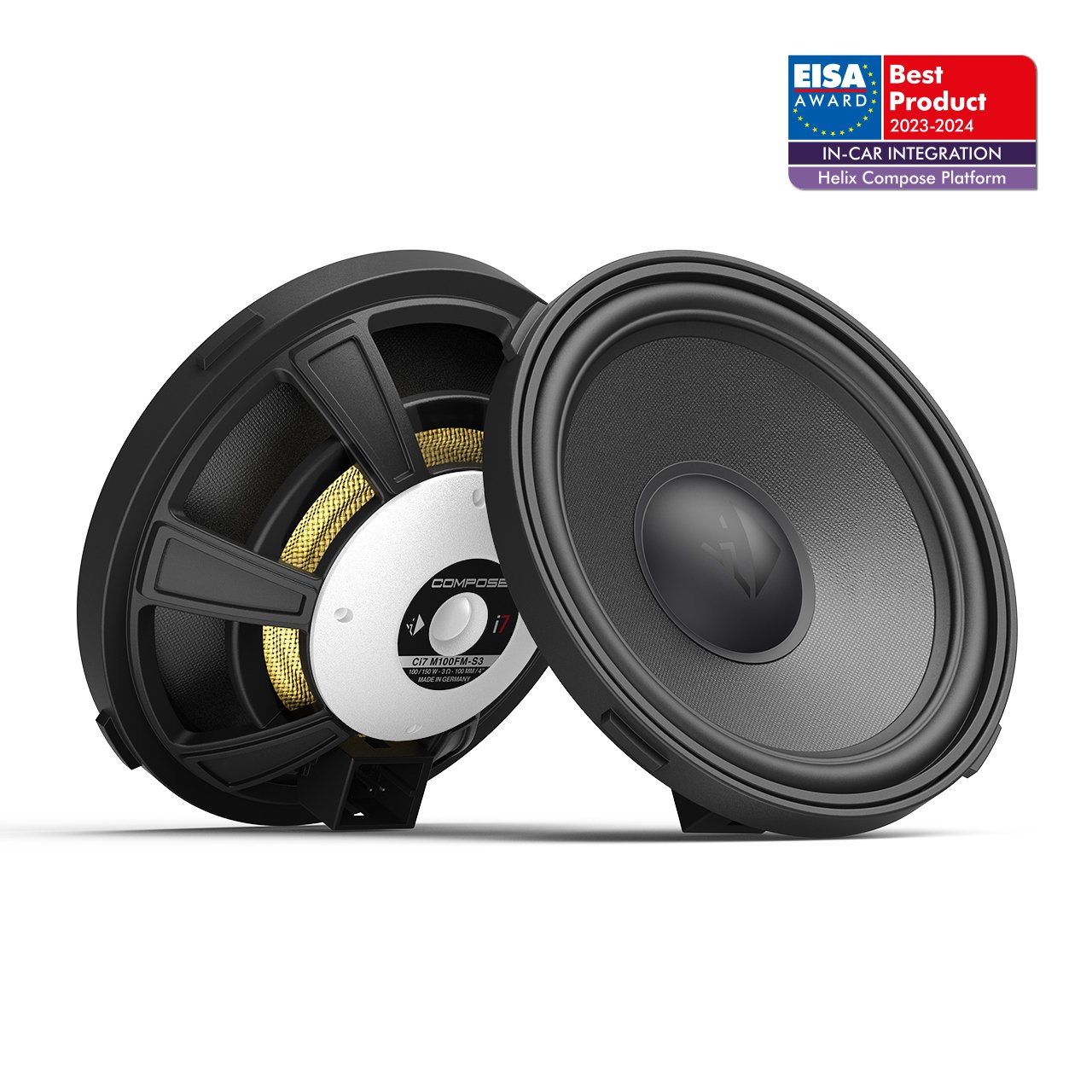

HELIX Ci7 M100FM-S3 – High-End Midrange Speaker Made in Germany

The HELIX Ci7 M100FM-S3 is part of the HELIX COMPOSE i7 series, built for uncompromising high-end audio performance in vehicles. Designed and manufactured entirely in Germany, the i7 series combines audiophile-grade materials, advanced engineering, and compatibility with HELIX and MATCH amplifiers for maximum performance and precision.

Engineered with highly efficient 3 Ohm technology, it maximizes amplifier output while ensuring superior sound pressure and clarity. Its handcrafted UHD (Ultra High Damping) paper cone, inspired by the sister brand BRAX, guarantees outstanding impulse response and unmatched frequency accuracy.

The high-tech polymer basket, reinforced with glass beads, ensures maximum rigidity, minimal resonance, and excellent thermal resistance, while remaining compact for simplified installations. With the FlexMount100 system, the speaker can be universally installed or easily adapted to OEM-specific mounting positions. Additionally, the FlexConnect terminal ensures a plug-and-play, automotive-standard connection with reverse polarity protection.

Key Features

• 4″ / 100 mm high-end midrange speaker combining top-class performance with versatile integration.
• 3 Ohm high-efficiency technology for maximum output and higher sound pressure levels.
• UHD (Ultra High Damping) crafted paper cone, handmade for optimal impulse response and frequency range.
• Polymer composite basket reinforced with glass beads for superior rigidity and minimal self-resonance.
• Specially shaped rubber surround enabling high linear cone excursion.
• Polyurethane dustcap for optimized upper midrange frequency response.
• 1″ / 25 mm voice coil for minimal thermal compression and high power handling.
• Powerful push-pull neodymium magnet system for high efficiency and low distortion.

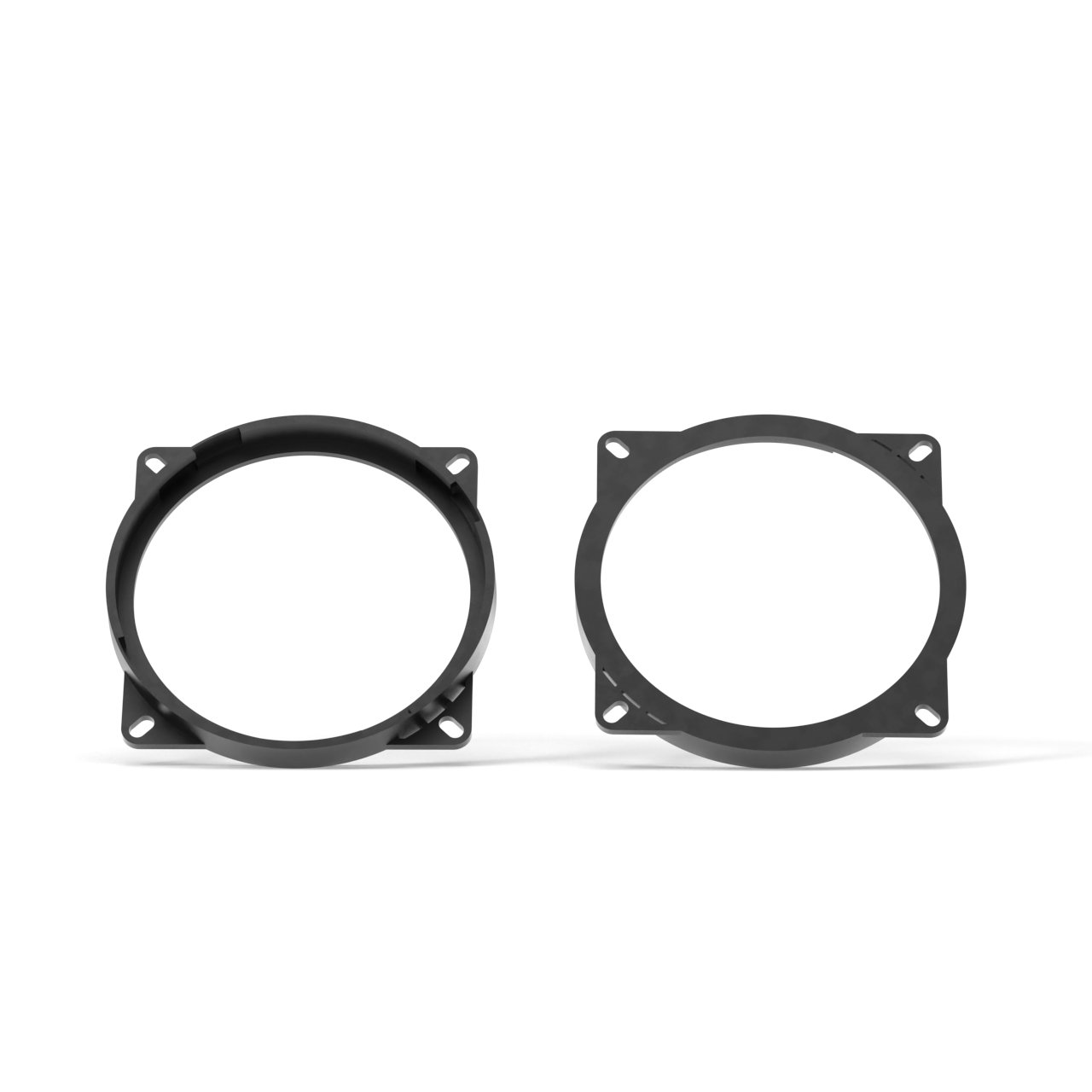

• FlexMount100 universal mounting ring (included) with standard 4-point mounting.
• FlexConnect automotive-grade terminal for secure, polarity-protected connections.
• Made in Germany – uncompromising quality and craftsmanship.

Scope of Delivery

• 2 × Ci7 M100FM-S3
• 2 × Universal FlexMount100 (with standard 4-point mounting)
• 2 × FlexConnect inlay A
• 2 × Universal connection cable
• 2 × Crossover connection cable
• 2 × Mounting material
