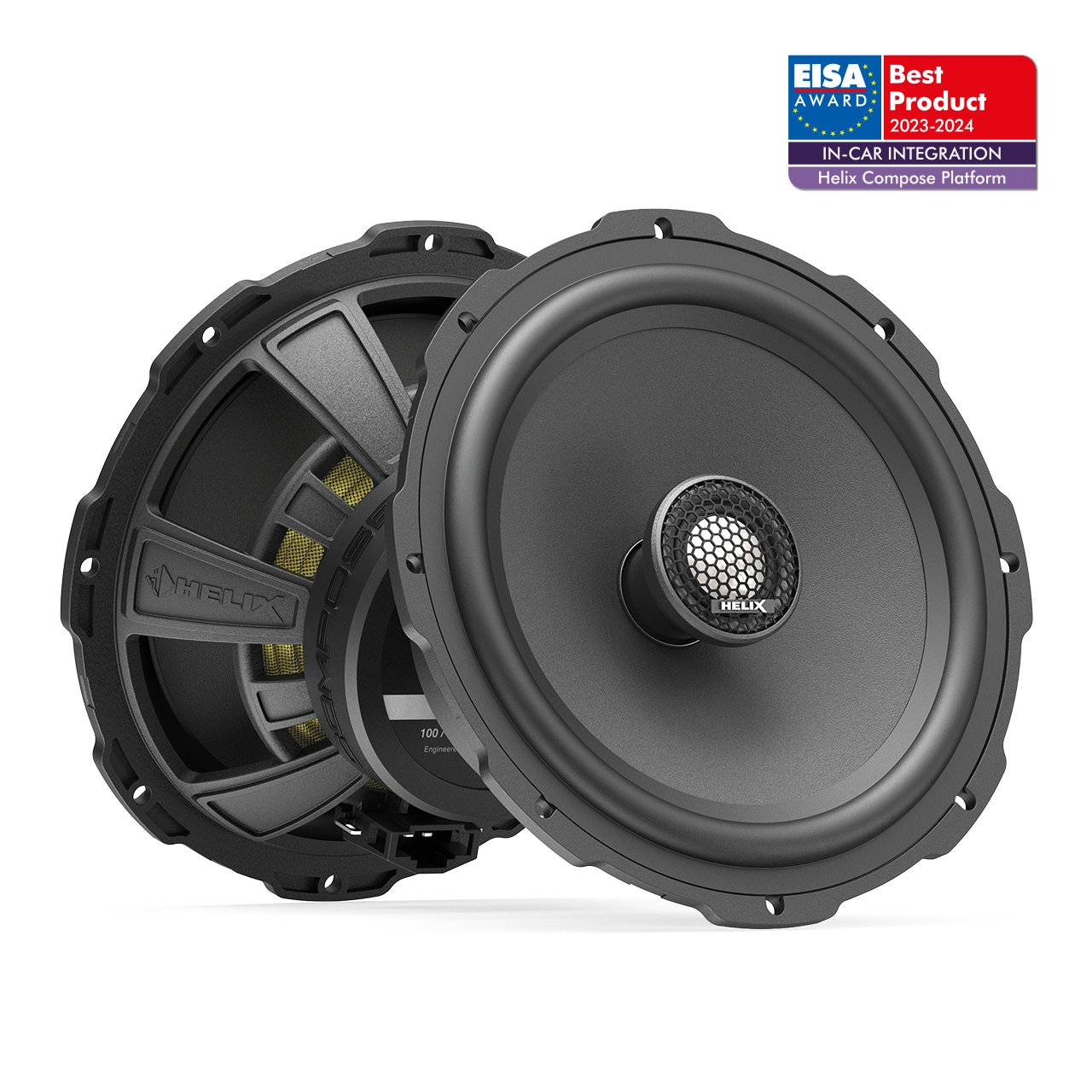

HELIX COMPOSE Ci3 C165.2FM-S3 SPEAKER
Original price was: ₹30,999.00.₹23,249.25Current price is: ₹23,249.25.
The HELIX Ci3 C165.2FM-S3 is a high-performance 2-way coaxial speaker system designed with the innovative HELIX COMPOSE platform. Featuring Cenosphere paper cones, a 0.75” titanium dome tweeter, FlexMount165 adaptability, and ProConnect terminals, it ensures high efficiency, superior sound quality, and vehicle-specific installation flexibility. Perfect for pairing with HELIX and MATCH amplifiers, it delivers dynamic, detailed sound with maximum compatibility.
Description
HELIX Ci3 C165.2FM-S3 – High-Performance 2-Way Coaxial Speaker System
The HELIX Ci3 C165.2FM-S3 represents the next evolution of universal speakers with the HELIX COMPOSE platform. Built “inside the vehicle, for the vehicle,” it combines the advantages of universal and vehicle-specific speaker systems with smart engineering, innovative materials, and compact design. The result is brilliant highs, powerful bass, and outstanding dynamics, making it an ideal upgrade for any car audio setup.
With FlexMount165 integration, these speakers can be installed seamlessly in various vehicles using dedicated adaptor rings, ensuring an acoustically optimized fit in OEM mounting positions. Featuring 3 Ohm technology for maximum efficiency, Cenosphere coated cones for precision, and a titanium dome tweeter for crystal-clear highs, the Ci3 C165.2FM-S3 sets new standards in performance and compatibility.
Key Features
- 2-way coaxial speaker system delivering outstanding sound clarity and dynamic performance
- High efficiency 3 Ohm technology for maximum amplifier power output
- 0.75” (20 mm) titanium dome tweeter with neodymium magnet for brilliant and precise treble response
- 6.5” (165 mm) midbass driver with Cenosphere coated paper cone for accurate and detailed reproduction
- High-tech polymer composite basket reinforced with glass beads for rigidity and reduced resonance
- FlexMount165 adaptor compatibility for easy, vehicle-specific OEM integration
- ProConnect terminal for secure, flexible connections (standard cables or WireKits)
- Integrated crossover with 6 dB slope for balanced performance
- Perfect match for HELIX and MATCH amplifiers
Compatibility
- FlexMount165 adaptors for OEM mounting positions
- WireKits for quick, safe, and non-destructive integration
Scope of Delivery
- 2 x HELIX Ci3 C165.2FM-S3 speakers
- 1 x Mounting material
Specification
GENERAL
| Specification | Details |
|---|---|
| Power Handling (RMS/Max.) | 100 / 150 Watts |
| Frequency Response | 60 Hz – 25,000 Hz |
| Impedance (Z) | 3 Ω |
| Sensitivity (SPL) | 92 dB @ 2.83V / 1m 88 dB @ 1W / 1m |
| Outer Diameter | 165.0 mm / 6.50” |
| Installation Diameter | 142.0 mm / 5.59” |
| Installation Depth | 60.7 mm / 2.39” |
| Parameter | Details |
|---|---|
| Impedance (Z) | 3 Ω |
| DC Resistance (Re) | 3.1 Ω |
| Resonance Frequency (Fs) | 72 Hz |
| Mechanical Q Factor (Qms) | 4.02 |
| Electrical Q Factor (Qes) | 1.04 |
| Total Q Factor (Qts) | 0.82 |
| Compliance (Cms) | 466 μm/N |
| Equivalent Air Volume (Vas) | 11.5 L |
| Force Factor (B*l) | 3.8 Tm |
| Cone Area (Sd) | 133 cm² |
| Moving Mass (Mms) | 10.4 g |
| Mechanical Resistance (Rms) | 1.17 kg/s |
| Voice Coil Diameter | 25 mm |
| Voice Coil Winding Height | 10.5 mm |
| Max. Linear Excursion (Xmax) | +/- 3.2 mm |
Tweeter
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 20 mm |
| Dome Material | Titanium |
| Magnet Type | Neodymium |
Component materials
| Component | Details |
|---|---|
| Tweeter | Titanium dome with neodymium magnet |
| Midbass | Cenosphere coated paper cone, ProConnect terminal, FlexMount165 compatible |
| Crossover | Integrated, 6 dB high-pass filter |
