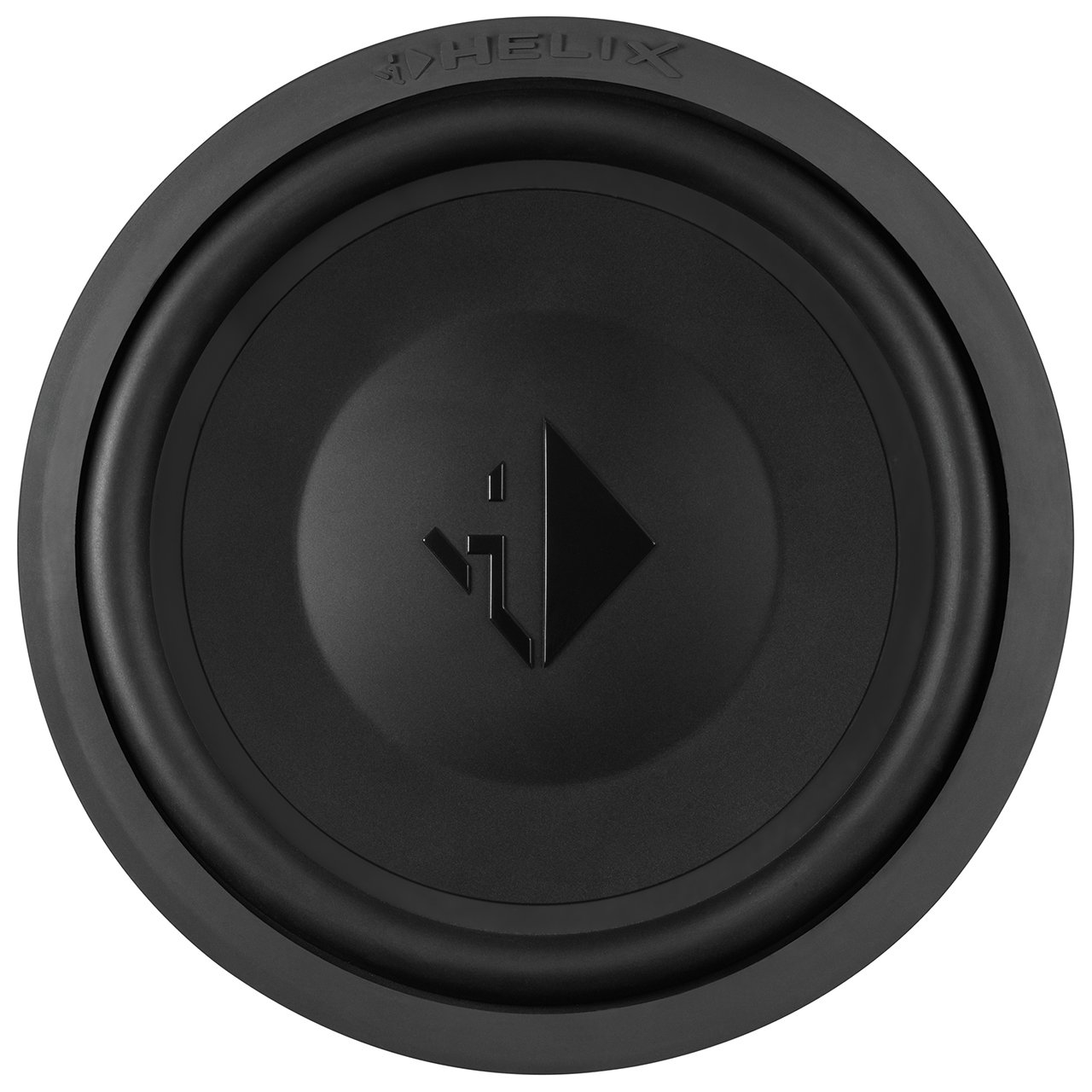

Helix IK S10 DVC2 (IK Series)

Brand:Helix
In Stock

₹29,999.00 Original price was: ₹29,999.00.₹22,499.25Current price is: ₹22,499.25.

HELIX IK S10 DVC2 – Shallow-Mount 10″ Subwoofer with Deep Bass
The HELIX IK S10 DVC2 is a 10-inch shallow-mount subwoofer designed for compact enclosures without compromising bass quality. Featuring a 2 x 2 Ohms dual voice coil, stiff sandwich paper cone, and low installation depth, it delivers deep, punchy bass and flexible amplifier configurations. Includes grille, gasket, and enclosure terminal for DIY installations.

Wishlist
Add to Compare
Category:SubwoofersTag:Helix IK Series Brand: Helix
Share:

Description

HELIX IK S10 DVC2 – Compact Design, Big Bass Performance

The HELIX IK S10 DVC2 combines a slim profile with powerful low-frequency response, making it the ideal solution for compact and shallow subwoofer enclosures. With an installation depth of just 84.5 mm, it fits into tight spaces without sacrificing acoustic performance.

Equipped with a 2 x 2 Ohms dual voice coil, the IK S10 DVC2 provides maximum flexibility for amplifier matching, supporting multiple wiring configurations. The extremely stiff sandwich paper cone and robust drive system ensure effortless power conversion, delivering deep bass with subtle accuracy.

A unique feature of this subwoofer is the threaded magnet system, which allows direct mounting to the enclosure’s back panel. This helps reduce vibrations, even with thin-walled constructions, while ensuring stability in shallow setups.

Built for DIY enthusiasts, it comes complete with a protective grille, gasket, and enclosure terminal, along with detailed sealed and vented box recommendations for optimal tuning.


Key Features

  • Ultra-low installation depth (84.5 mm) – optimized for compact and shallow enclosures
  • 2 x 2 Ohms dual voice coil (DVC2) – supports flexible system configurations
  • Magnet system with threaded hole – allows direct back-panel mounting to reduce enclosure vibrations
  • Rigid sandwich paper cone for precise bass reproduction
  • Long-excursion rubber surround for maximum mechanical stability
  • HELIX protective magnet cover for durability
  • Includes grille, gasket, and enclosure connection terminal for easy DIY installation

Scope of Delivery

  • 1 x HELIX IK S10 DVC2 Subwoofer
  • 1 x Protective Grille
  • 1 x Gasket
  • 1 x Enclosure Connecting Terminal
  • 1 x Data Sheet

Specification

SpecificationDetails
ModelHELIX IK S10 DVC2 – 2 x 2 Ohms
Power Handling (RMS / Max.)300 / 600 Watts
Impedance2 x 2 Ω
DC Resistance (Re)2 x 1.6 Ω
Resonance Frequency (Fs)34 Hz
Mechanical Q Factor (Qms)6.37
Electrical Q Factor (Qes)0.49
Total Q Factor (Qts)0.45
Compliance (Cms)198 μm/N
Equivalent Air Volume (Vas)34 L
Force Factor (B*I)12.7 Tm
Sensitivity

90.0 dB @ 2.83V / 1m

87.0 dB @ 1W / 1m

Cone Area (Sd)353 cm²
Moving Mass (Mms)112 g
Cone MaterialSandwich paper cone
Mechanical Resistance (Rms)3.73 kg/s
Voice Coil Diameter50.8 mm
Voice Coil Winding Height18 mm
Max. Linear Excursion (Xmax)± 6.0 mm
Outer Diameter262 mm / 10.31″
Installation Diameter229 mm / 9.01″
Installation Depth84.5 mm / 3.33″
ParameterDetails
Net Volume14 L
Lower Limiting Frequency (-3dB)46 Hz
DSP Settings

Highpass: 45 Hz / Q = 1.3

EQ Filter: 100 Hz / Q = 1.0 / -3 dB

ParameterDetails
Net Volume16 L
Port Diameter70 mm / 2.76″
Port Area38 cm²
Port Length38 cm / 14.96″
Port Tuning Frequency (Fb)37 Hz
Lower Limiting Frequency (-3dB)39 Hz
DSP Settings

Highpass: 37 Hz / Q = 1.2

EQ Filter: 95 Hz / Q = 0.7 / -3 dB
