Helix IK W10 SVC2 (IK Series)
Original price was: ₹24,999.00.₹18,749.25Current price is: ₹18,749.25.
The HELIX IK W10 SVC2 delivers stunning bass performance from compact dimensions. Featuring a 1 x 2 Ohms single voice coil, hand-scooped paper cone, and powerful magnet system, this subwoofer ensures deep, precise bass even in small enclosures. Perfect for flexible installations, it includes a protective grille, gasket, and optimized DSP recommendations for both sealed and vented box setups.
Description

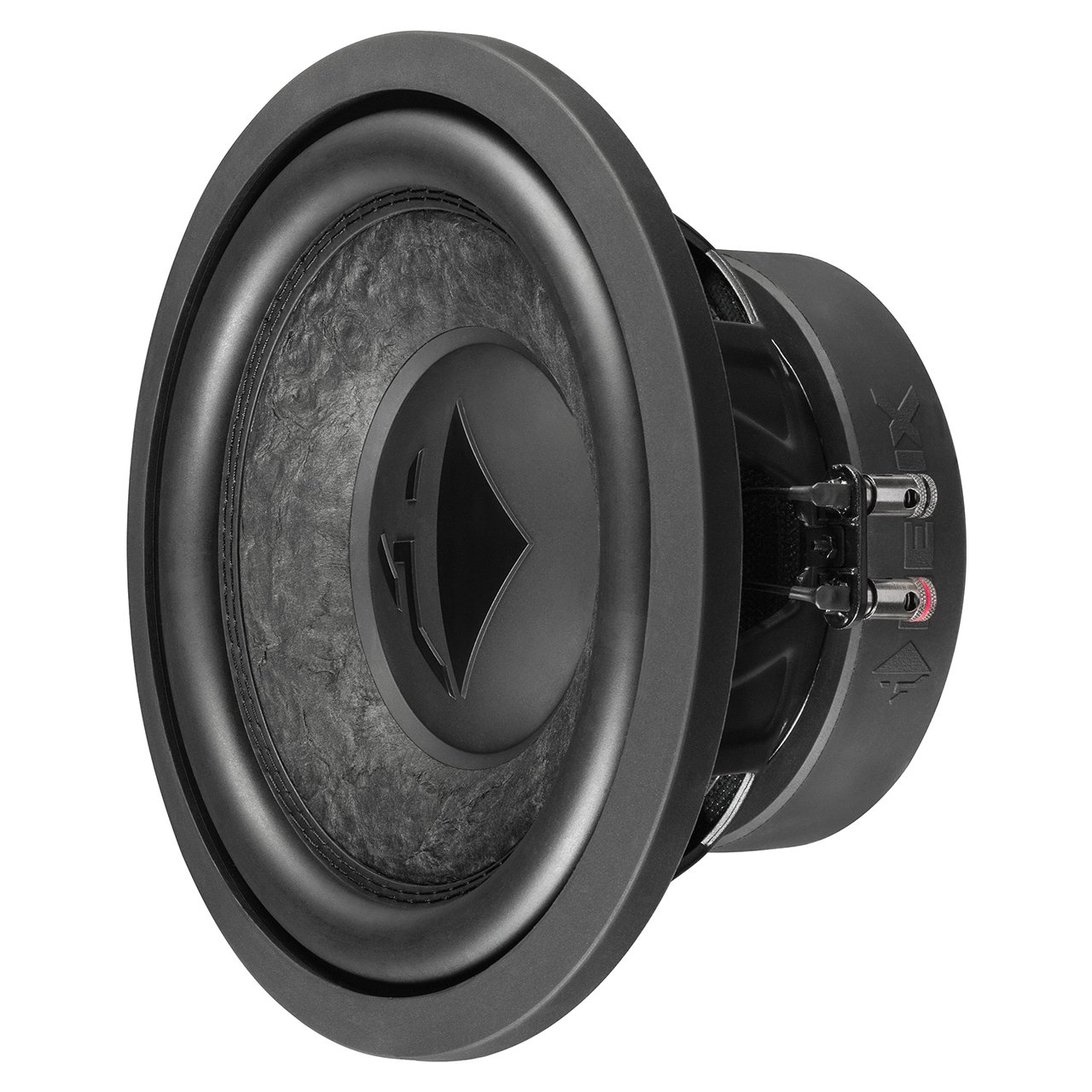

HELIX IK W10 SVC2 – Compact Subwoofer for Precision Bass
The HELIX IK W10 SVC2 is part of the IMPACT subwoofer lineup, designed with the innovative KW chassis to achieve powerful bass performance in compact enclosures. Its extremely stiff hand-scooped paper cone and heavy-duty driver system effortlessly convert amplifier power into clean, distortion-free sound pressure, ensuring both sonic precision and impactful bass.
Equipped with a 1 x 2 Ohms single voice coil, the IK W10 SVC2 provides flexible system integration, making it suitable for mono or multi-channel amplifier setups. Built with durability and performance in mind, it comes with a solid protective grille and gasket, along with detailed sealed and vented enclosure recommendations for DIY enthusiasts seeking maximum bass output.
Key Features
- 1 x 2 Ohms single voice coil for versatile amplifier compatibility
- Hand-scooped, extremely stiff paper cone for outstanding impulse response
- Double ventilated voice coil for reduced compression and higher power handling
- Long-excursion rubber surround for maximum mechanical durability
- Solid push terminals for reliable connections
- Compact magnet system optimized for small enclosures

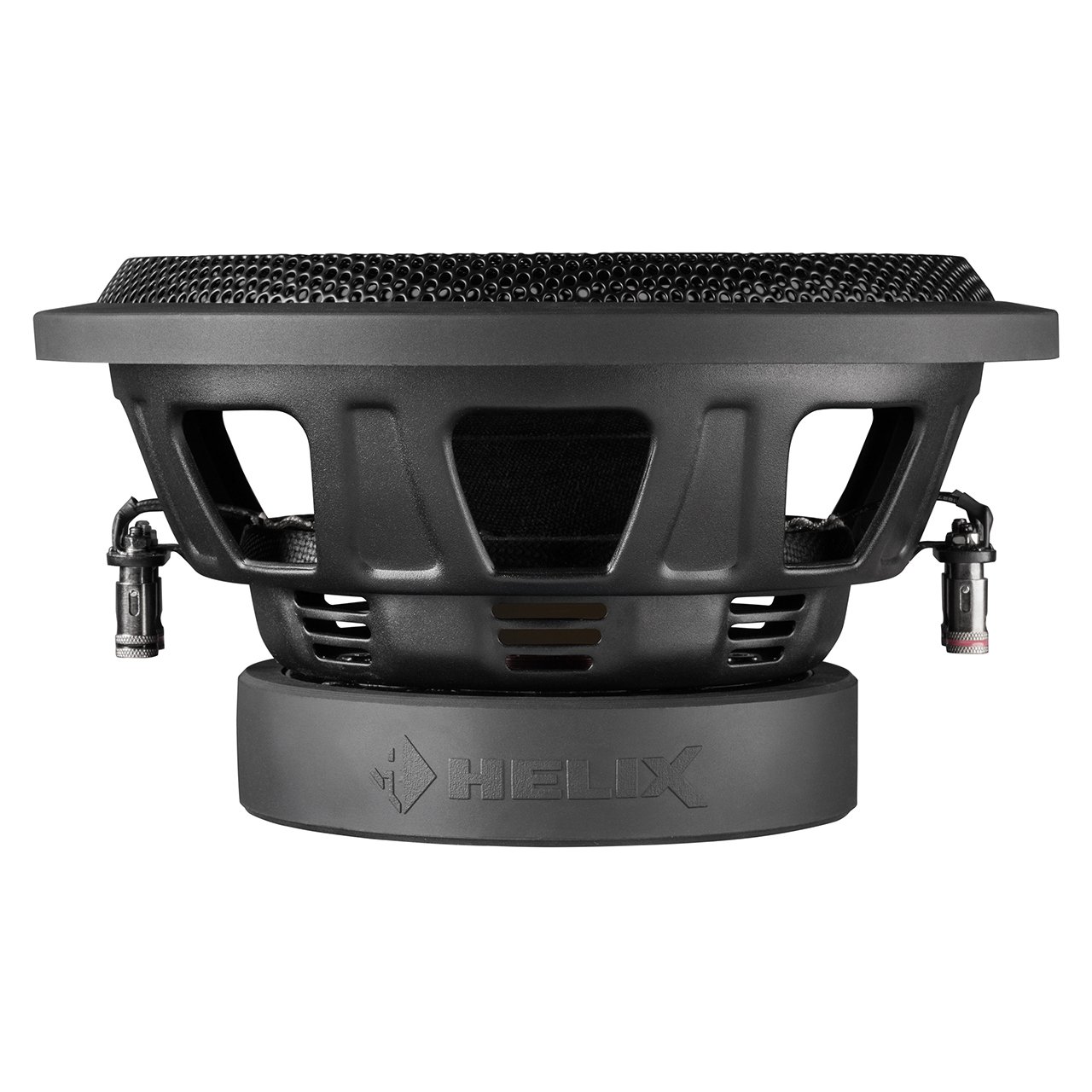

- Rugged magnet cover with HELIX lettering for protection and style
- Protective grille and gasket included in the package
Scope of Delivery
- 1 x HELIX IK W10-SVC2 Subwoofer
- 1 x Protective Grille
- 1 x Gasket
- 1 x Data Sheet
Specification
| Model | HELIX IK W10-SVC2 – 1 x 2 Ohms |
|---|---|
| Power Handling (RMS / Max.) | 300 / 600 Watts |
| Impedance | 1 x 2 Ω |
| DC Resistance (Re) | 1 x 2.0 Ω |
| Resonance Frequency (Fs) | 32 Hz |
| Mechanical Q Factor (Qms) | 5.09 |
| Electrical Q Factor (Qes) | 0.45 |
| Total Q Factor (Qts) | 0.41 |
| Compliance (Cms) | 159 μm/N |
| Equivalent Air Volume (Vas) | 25 L |
| Force Factor (B*I) | 12.1 Tm |
| Sensitivity (SPL) | 93.0 dB @ 2.83V / 1m 87.0 dB @ 1W / 1m |
| Cone Area (Sd) | 333 cm² |
| Moving Mass (Mms) | 126 g |
| Cone Material | Hand-scooped paper cone |
| Mechanical Resistance (Rms) | 6.25 kg/s |
| Voice Coil Diameter | 50.8 mm |
| Voice Coil Winding Height | 24 mm |
| Max. Linear Excursion (Xmax) | +/- 8.0 mm |
| Outer Diameter | 262 mm / 10.31″ |
| Installation Diameter | 232 mm / 9.13″ |
| Installation Depth | 126 mm / 4.96″ |
| Parameter | Value |
|---|---|
| Net Volume | 15 L |
| Lower Limiting Frequency (-3dB) | 50 Hz |
| Recommended DSP Settings | Highpass: 38 Hz / Q = 1.4 EQ Filter: 95 Hz / Q = 1.0 / -3 dB |
| Parameter | Value |
|---|---|
| Net Volume | 21 L |
| Port Diameter | 70 mm / 2.76″ |
| Port Area | 38 cm² |
| Port Length | 32 cm / 12.6″ |
| Port Tuning Frequency (Fb) | 36 Hz |
| Lower Limiting Frequency (-3dB) | 36 Hz |
| Recommended DSP Settings | Highpass: 35 Hz / Q = 1.0 EQ Filter: 100 Hz / Q = 0.7 / -2 dB |
