Helix IK W12 DVC2 (IK Series)
Original price was: ₹27,999.00.₹20,999.25Current price is: ₹20,999.25.

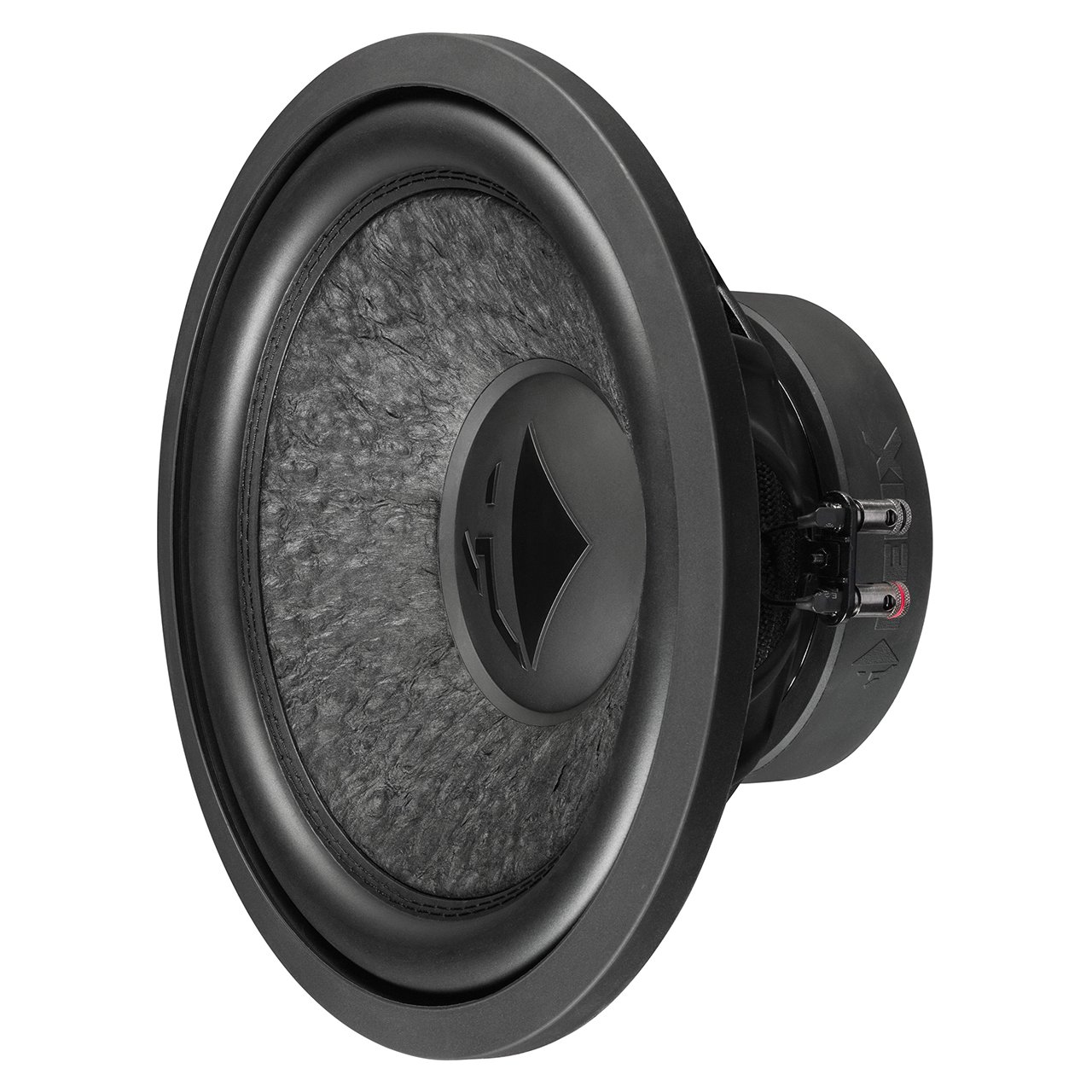

HELIX IK W12 DVC2 – 12″ Dual Voice Coil Subwoofer for Compact Enclosures
The HELIX IK W12 DVC2 is a 12-inch dual 2 Ohms subwoofer designed for maximum bass output in compact enclosures. With its hand-scooped paper cone, long-excursion surround, and high power handling (600W Max), this subwoofer delivers deep, accurate, and powerful bass for any car audio system.
Description
HELIX IK W12 DVC2 – Compact Design, Massive Bass
The HELIX IK W12 DVC2 expands the HELIX IMPACT series with a 12-inch subwoofer engineered for compact enclosure designs. Its dual 2 Ohms voice coils provide flexible wiring options, making it compatible with mono, 2-channel, or multi-channel amplifiers for maximum system performance.
The hand-scooped paper cone is exceptionally rigid, ensuring tight and dynamic bass response without distortion, while the double-ventilated voice coil enhances cooling and reduces compression effects during high power operation. With its long-excursion rubber surround and powerful magnet system, the IK W12 DVC2 is built to deliver stunning bass while maintaining precision and durability.
For installation, this subwoofer requires just 144 mm depth, making it a smart choice for custom enclosures where space is limited. DIY enthusiasts benefit from detailed sealed and vented box recommendations with optimized DSP settings for perfect integration.
Key Features
- 12-inch dual 2 Ohms subwoofer – versatile wiring options for any amplifier setup

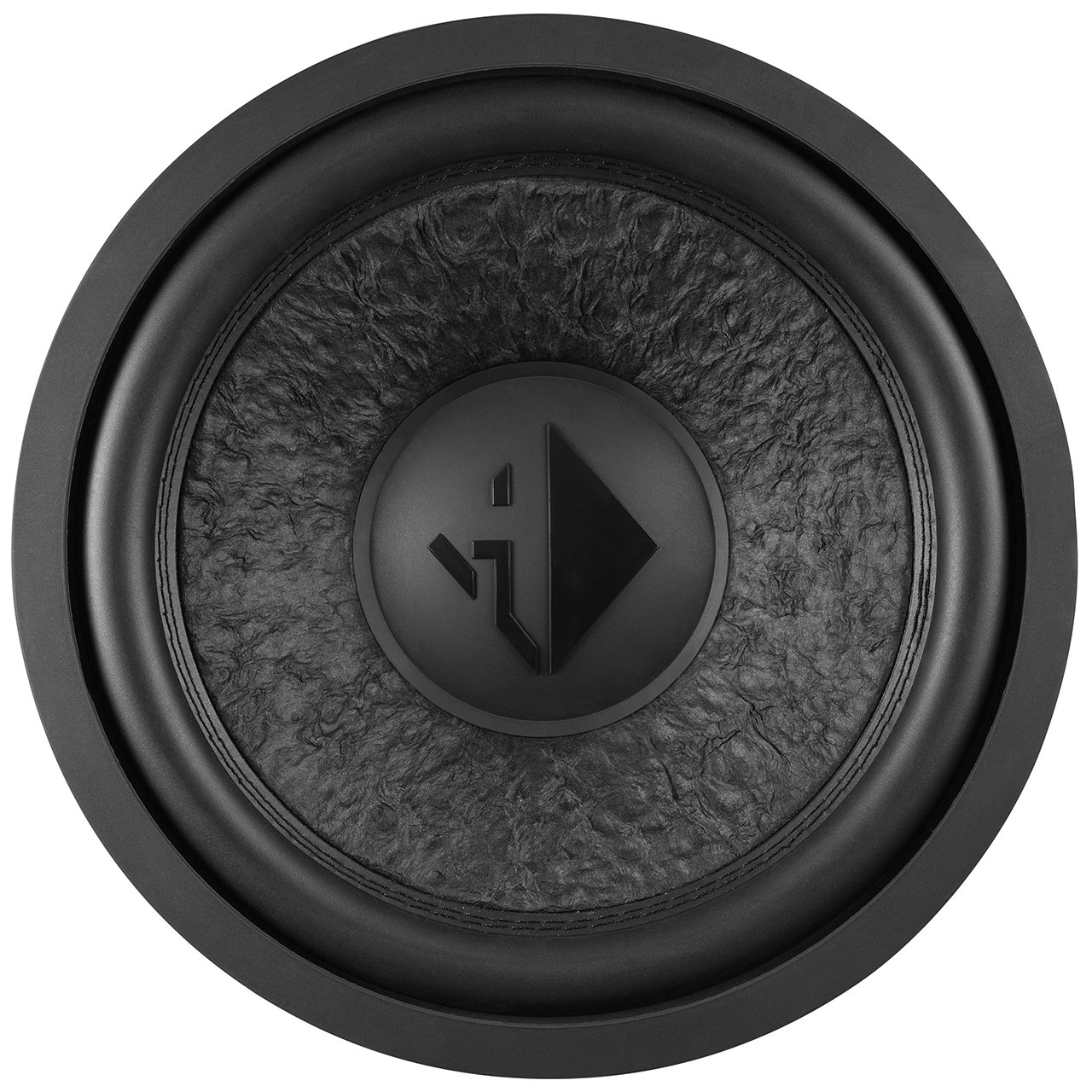

- Hand-scooped paper cone – stiff and lightweight for accurate bass reproduction
- Double-ventilated voice coil – minimizes compression effects and improves cooling
- Long-excursion rubber surround – ensures high excursion and mechanical durability
- Solid push terminals for secure and easy wiring
- Compact installation depth (144 mm) – optimized for space-saving enclosure designs

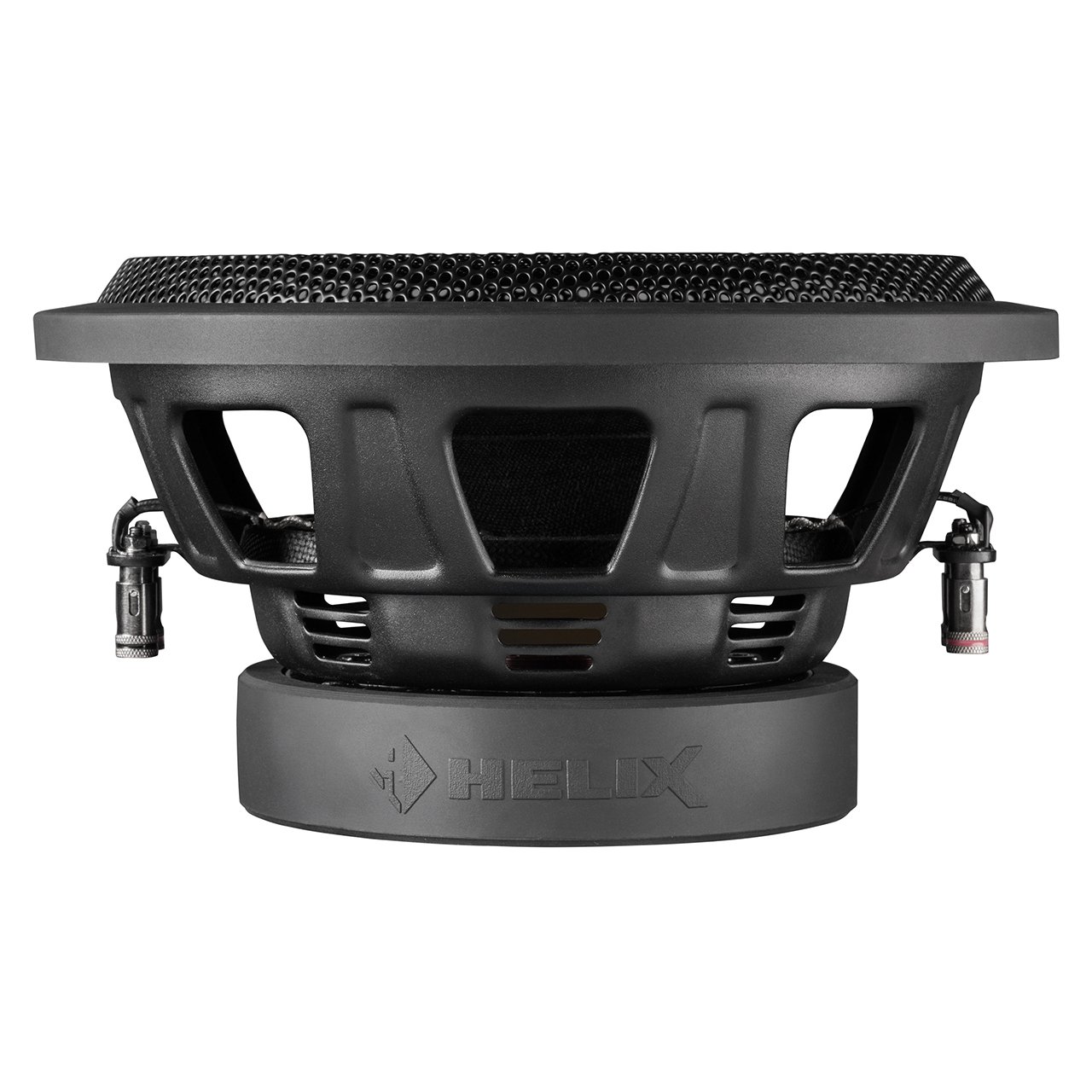

- Protective magnet cover with HELIX branding
- Includes grille and gasket for professional installation
Scope of Delivery
- 1 x HELIX IK W12 DVC2 Subwoofer

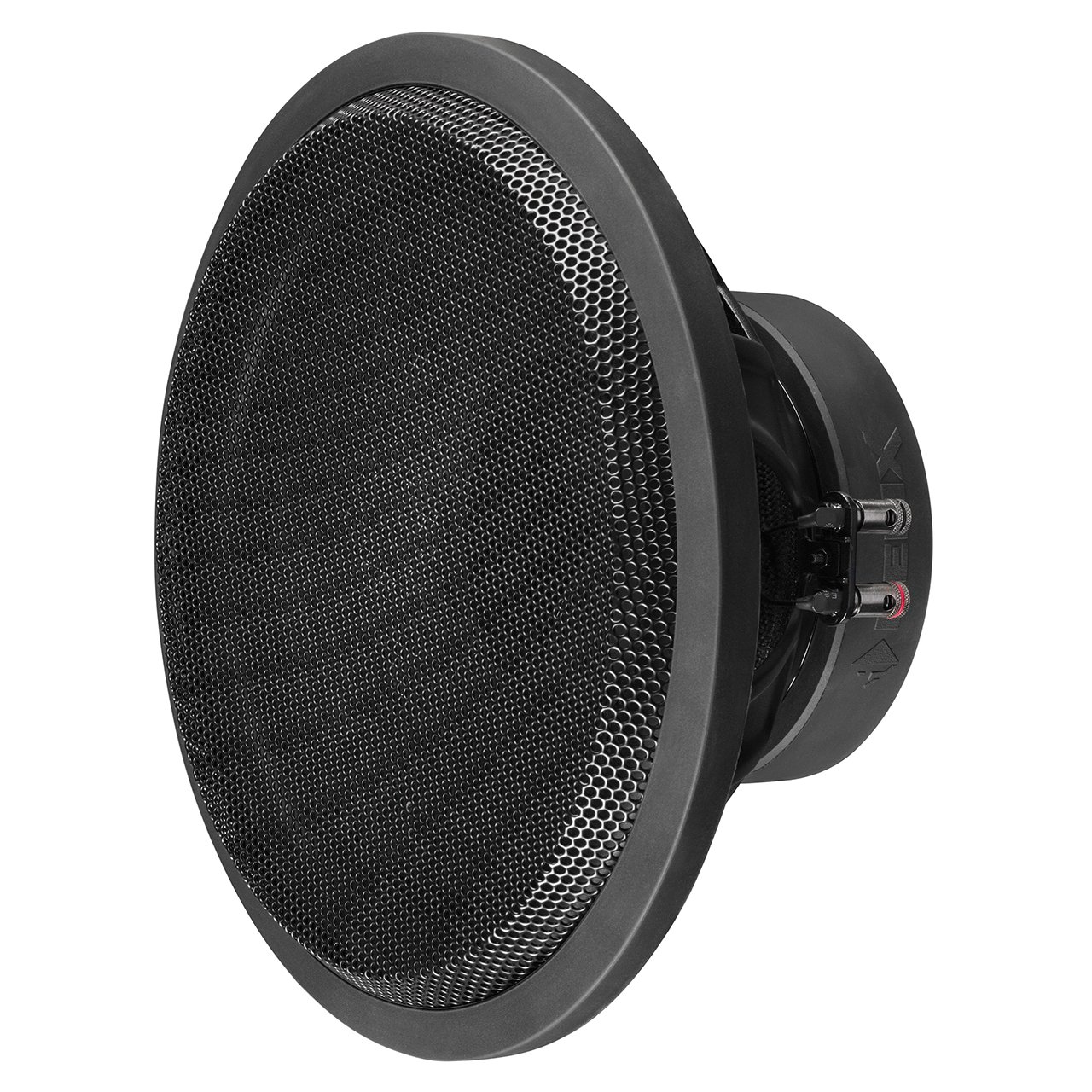

- 1 x Protective Grille
- 1 x Gasket
- 1 x Data Sheet
Specification
| Specification | Details |
|---|---|
| Model | HELIX IK W12 DVC2 – 2 x 2 Ohms |
| Power Handling (RMS / Max.) | 300 / 600 Watts |
| Impedance | 2 x 2 Ω |
| DC Resistance (Re) | 2 x 1.6 Ω |
| Resonance Frequency (Fs) | 32 Hz |
| Mechanical Q Factor (Qms) | 3.70 |
| Electrical Q Factor (Qes) | 0.46 |
| Total Q Factor (Qts) | 0.41 |
| Compliance (Cms) | 179 μm/N |
| Equivalent Air Volume (Vas) | 66 L |
| Force Factor (B*I) | 13.7 Tm |
| Sensitivity | 93.0 dB @ 2.83V / 1m 90.0 dB @ 1W / 1m |
| Cone Area (Sd) | 515 cm² |
| Moving Mass (Mms) | 134 g |
| Cone Material | Hand-scooped paper cone |
| Mechanical Resistance (Rms) | 7.33 kg/s |
| Voice Coil Diameter | 50.8 mm |
| Voice Coil Winding Height | 24 mm |
| Max. Linear Excursion (Xmax) | ± 8.0 mm |
| Outer Diameter | 316 mm / 12.44″ |
| Installation Diameter | 286 mm / 11.26″ |
| Installation Depth | 144 mm / 5.67″ |
| Parameter | Details |
|---|---|
| Net Volume | 22 L |
| Lower Limiting Frequency (-3dB) | 40 Hz |
| DSP Settings | Highpass: 37 Hz / Q = 1.6 EQ Filter: 90 Hz / Q = 1.5 / -3 dB |
| Parameter | Details |
|---|---|
| Net Volume | 30 L |
| Port Diameter | 100 mm / 3.94″ |
| Port Area | 78 cm² |
| Port Length | 28 cm / 9.84″ |
| Port Tuning Frequency (Fb) | 39 Hz |
| Lower Limiting Frequency (-3dB) | 39 Hz |
| DSP Settings | Highpass: 36 Hz / Q = 1.3 EQ Filter: 100 Hz / Q = 0.85 / -2 dB |
