Helix PF K100.2 (Pure PF Series)
Original price was: ₹25,999.00.₹19,499.25Current price is: ₹19,499.25.
Step into the HELIX sound world with the PF K100.2 PURE F-Series speakers. Featuring 3 Ohm technology, a 4″ woofer with carbon-fiber reinforced cone, and a 0.75″ silk dome tweeter, this compact system ensures powerful bass, detailed mids, and crystal-clear highs. With its low installation depth, Flex-Crossover design, and premium HELIX styling, it offers seamless integration and exceptional sound quality.
Description
The HELIX PF K100.2 PURE F-Series is designed as the perfect entry point into high-quality HELIX audio. Built with 3 Ohm technology, it delivers maximum amplifier efficiency, producing rich bass, balanced mids, and precise highs for a dynamic in-car audio experience.
Installation is made easy thanks to the low installation depth of the drivers and the innovative Flex-Crossover system, which allows versatile mounting options—ideal for modern vehicles with limited space. The two-part crossover includes a 2-stage tweeter level adjustment for personalized sound tuning, while the integrated tweeter protection ensures long-lasting performance.
The system features a 0.75” silk dome tweeter with neodymium magnet for detailed treble and flexible mounting pods with removable grilles. The 4″ woofer, crafted from injected polypropylene reinforced with carbon fibers, ensures accurate midrange reproduction and strong bass response. A rigid HELIX basket with ventilation holes provides optimal coil cooling for improved power handling.
With its elegant HELIX matt black cone finish and Space-Line styling, the PF K100.2 blends seamlessly into any car interior while delivering outstanding sound quality.
Key Features
- High-quality 2-way component system with balanced sound
- 3 Ohm technology for maximum amplifier output and efficiency
- Compact design with low installation depth for easy vehicle integration
- 0.75″ silk dome tweeter with neodymium magnet for detailed, brilliant treble
- Multiple tweeter mounting pods with removable grilles for flexible installation
- 4″ woofer with carbon-fiber reinforced polypropylene cone for accurate mids and powerful bass
- Rigid HELIX basket with ventilation holes for improved cooling and durability
- Flex-Crossover technology with versatile mounting options
- 2-stage tweeter level adjustment for customized sound tuning
- Integrated tweeter protection for safe long-term performance
- Elegant HELIX design with matt black finish and Space-Line styling

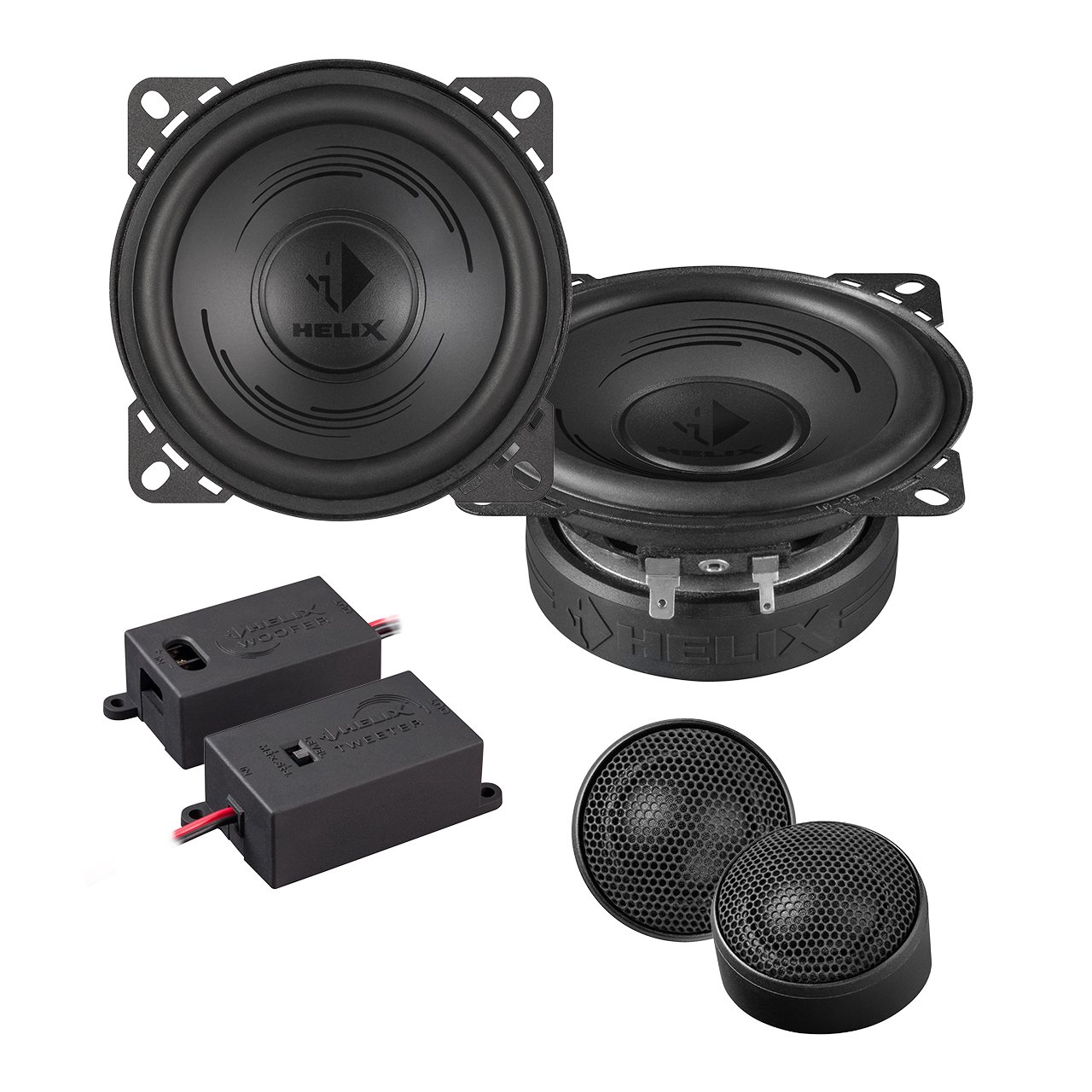

Scope of Delivery
- 2 x Tweeter HELIX PF T20-S
- 2 x Woofer HELIX PF W100
- 2 x Two-part Flex-Crossover

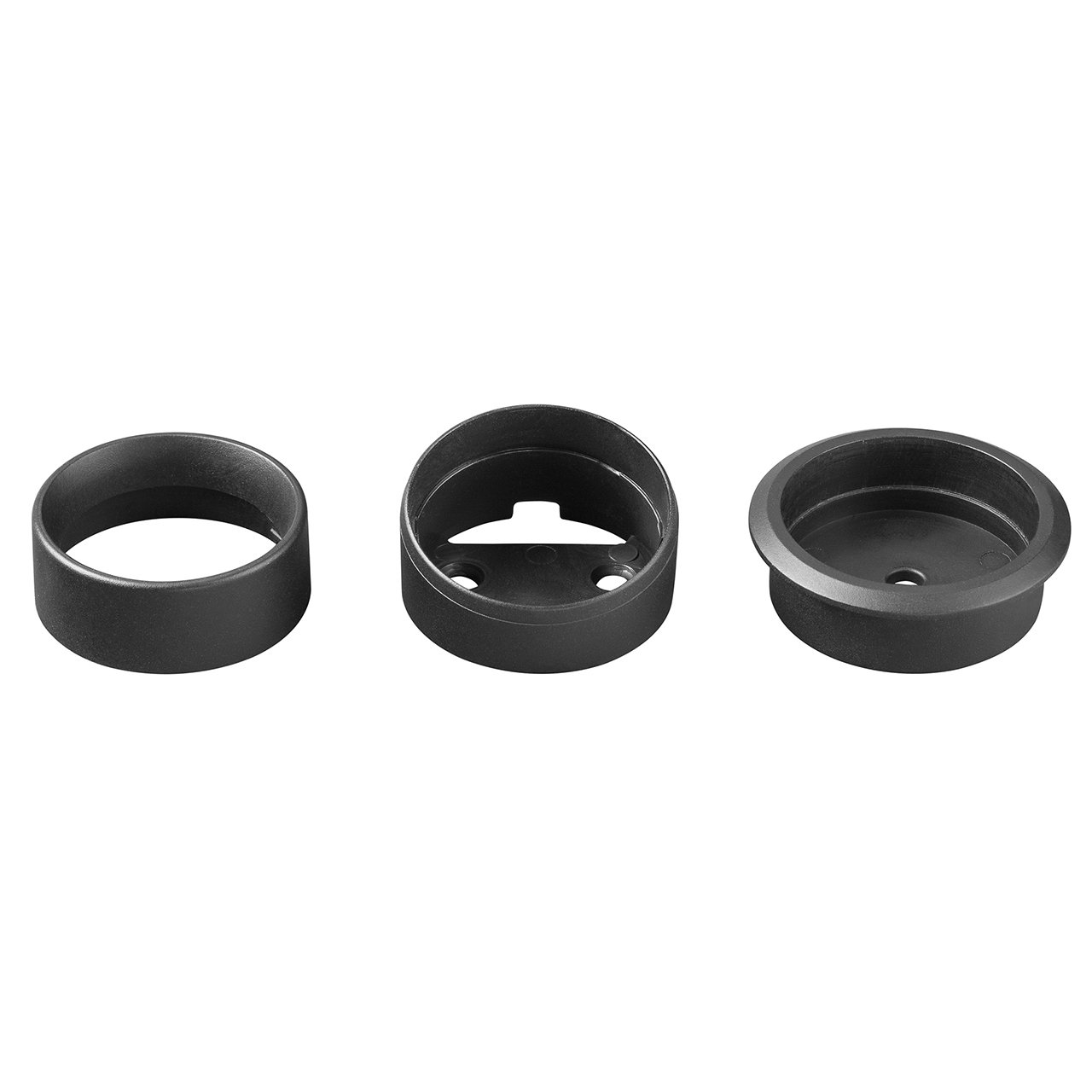

- 6 x Tweeter mounting accessories
- 1 x Mounting material
- 1 x Instruction manual
- 1 x Mounting pattern
Specification
| Specification | Details |
|---|---|
| Model | HELIX PF K100.2 |
| System Type | 2-Way Component Speaker System |
| Power Handling (RMS / Max.) | 40 / 80 Watts |
| Frequency Response | 100 Hz – 22,000 Hz |
| Impedance (Z) | 3 Ω |
| Sensitivity (SPL) | 90.0 dB @ 2.83V/1m 86.0 dB @ 1W/1m |
| Cone Material | Tweeter: Silk Dome Woofer: Injected Polypropylene with Carbon Fibers |
| Crossover Type | Separate, 6/12 dB slope with tweeter protection |
| Crossover Dimensions | 75.5 x 35.1 x 24 mm / 2.97 x 1.38 x 0.95” |

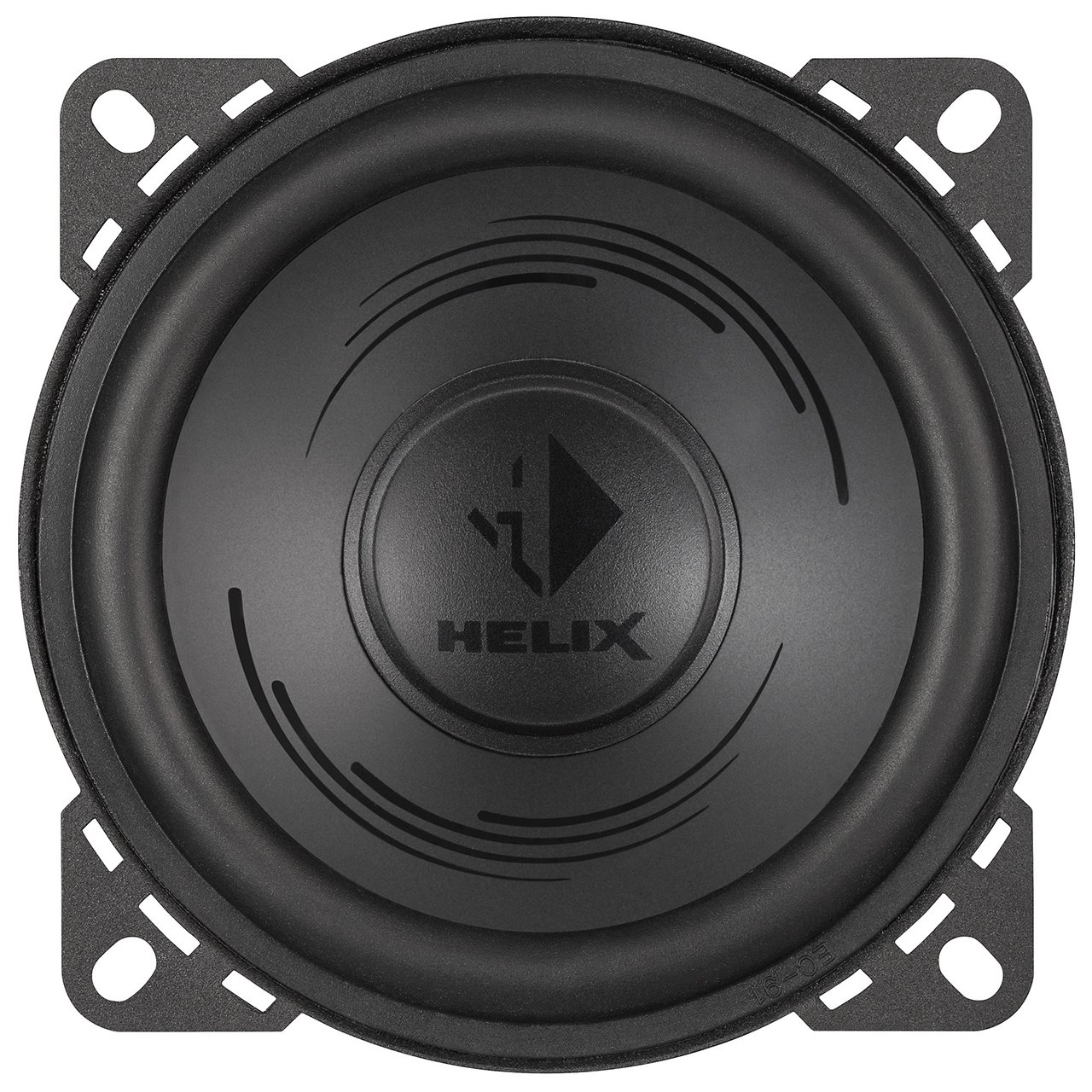

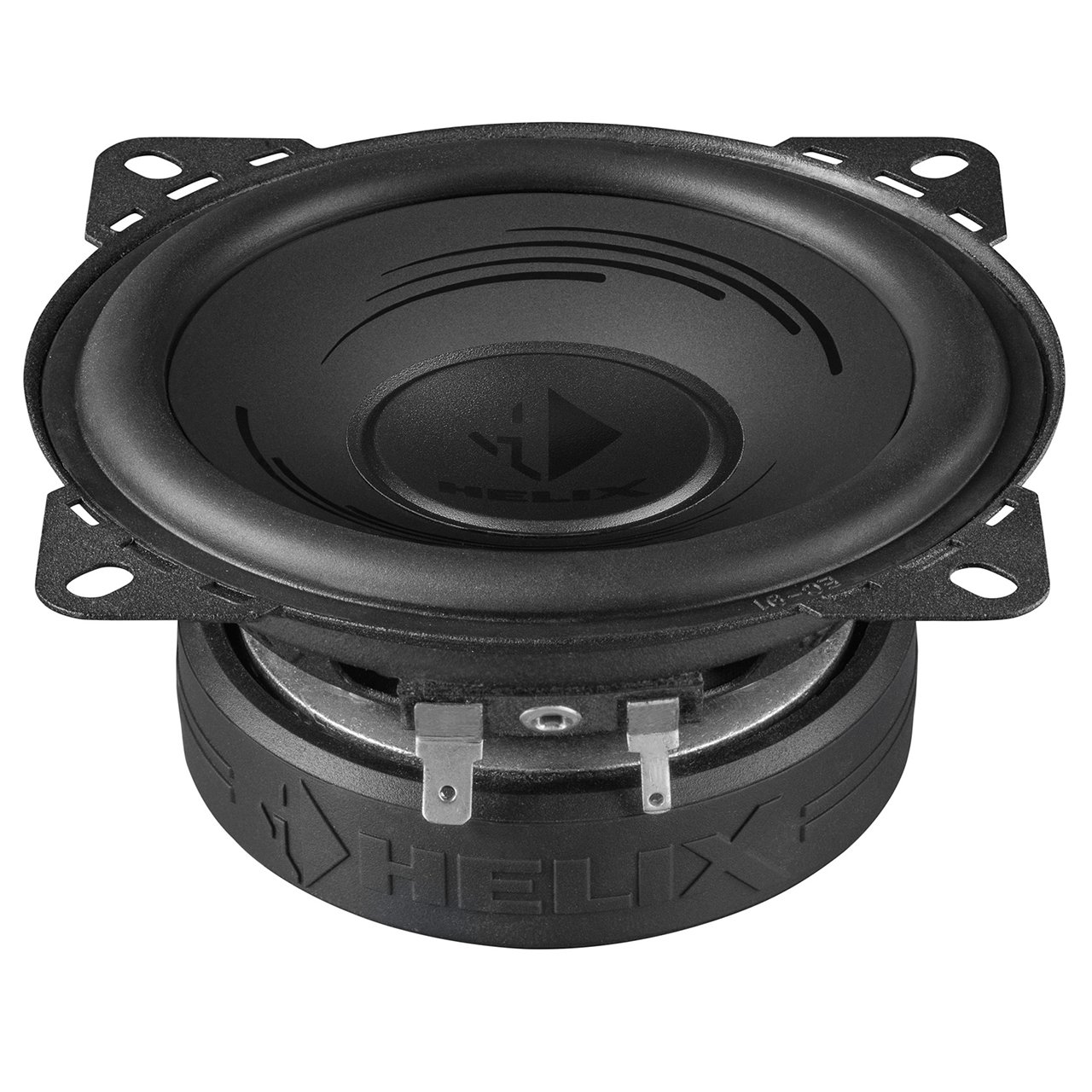

| Specification | Details |
|---|---|
| Size | 4” / 100 mm |
| Cone Material | Injected Polypropylene with Embedded Carbon Fibers |
| Basket | HELIX rigid basket with ventilation holes |
| Magnet System | High-power for optimized control |
| Outer Diameter | 102.4 mm / 4.03” |
| Installation Diameter | 93 mm / 3.66” |
| Installation Depth | 45 mm / 1.77” |

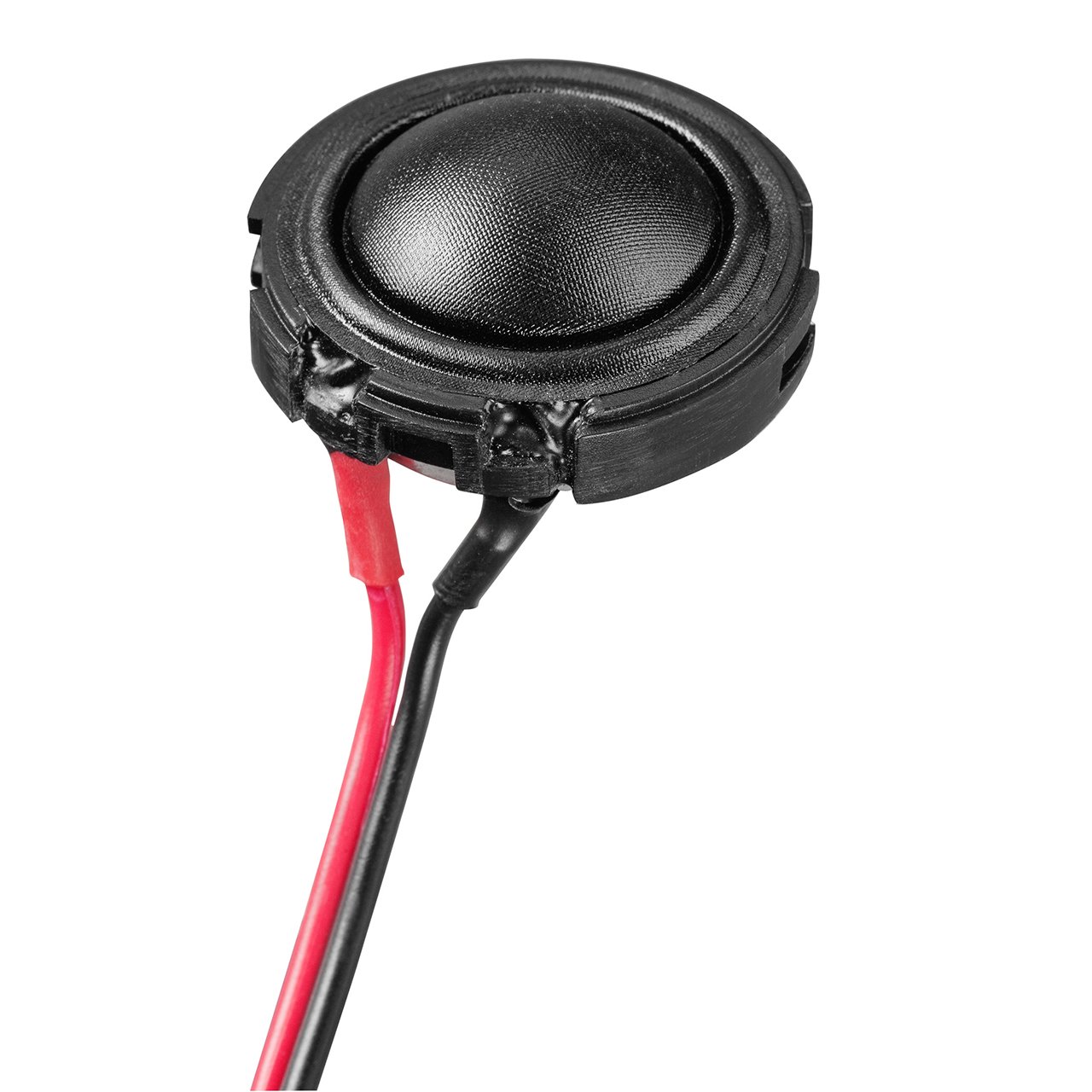

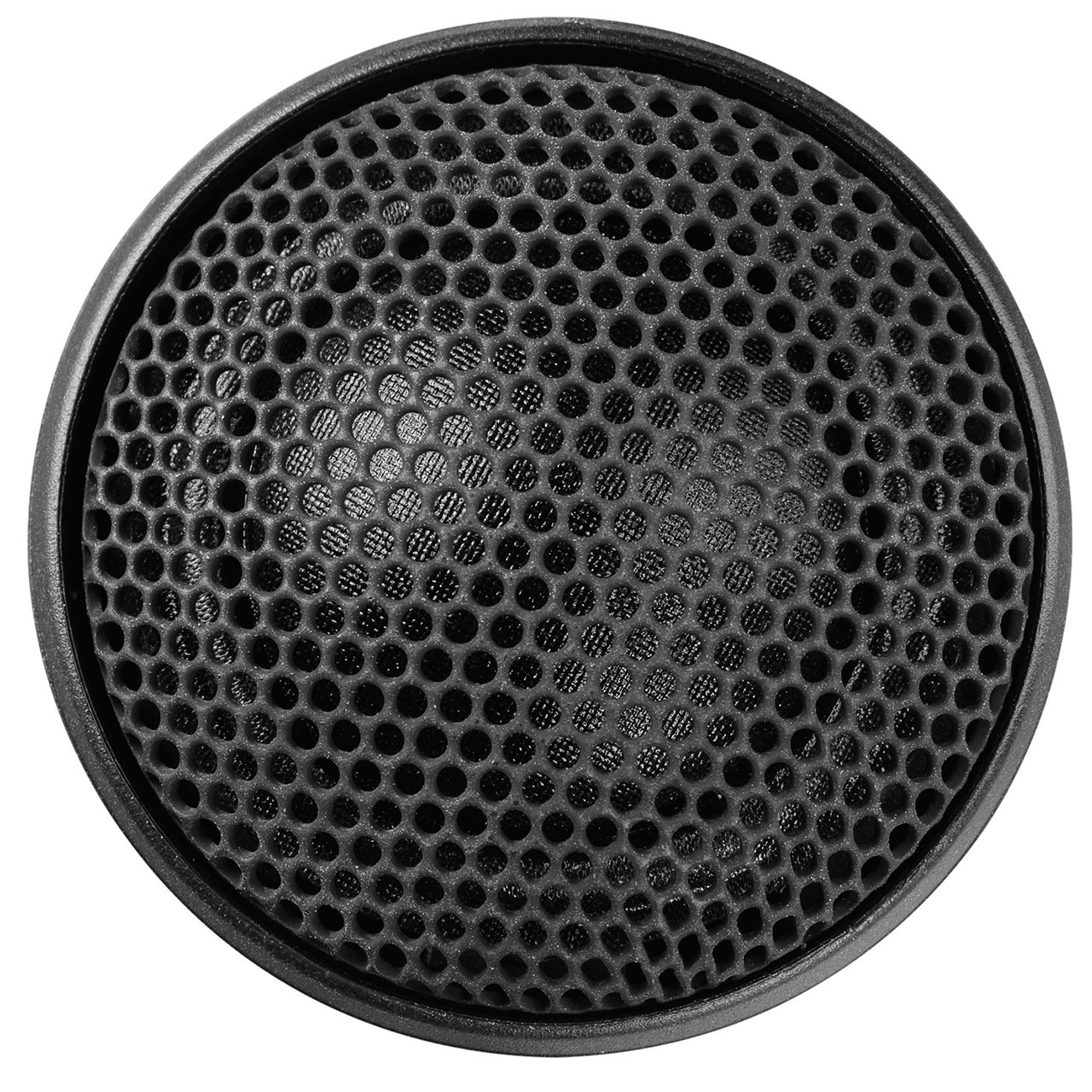

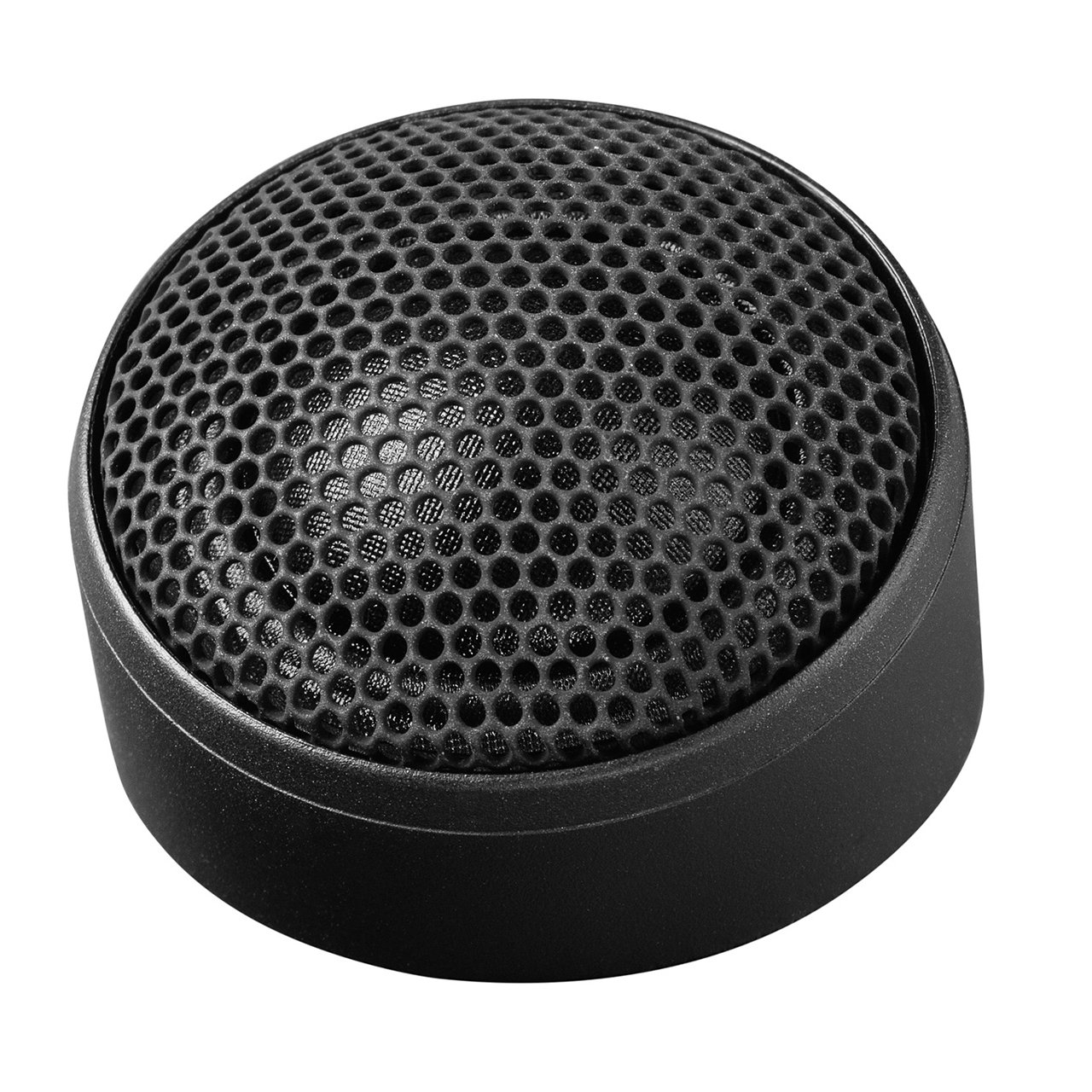

| Specification | Details |
|---|---|
| Size | 0.75” / 20 mm |
| Dome Material | Silk Dome |
| Magnet Type | Neodymium |
| Design | Ultra-compact with multiple mounting pods |
| Grille | Removable for factory-fit installations |
| Outer Diameter (Standard) | 33.1 mm / 1.30” |
| Outer Diameter (OE Mount) | 36 mm / 1.42” |
| Outer Diameter (Flush Mount) | 42 mm / 1.65” |
| Outer Diameter (Angle Mount) | 36 mm / 1.42” |
| Installation Diameter (Standard) | 33.1 mm / 1.30” |
| Installation Diameter (OE Mount) | 36 mm / 1.42” |
| Installation Diameter (Flush Mount) | 36 mm / 1.42” |
| Installation Depth (Standard) | 9.8 mm / 0.38” |
| Installation Depth (OE Mount) | 16.8 mm / 0.66” |
| Installation Depth (Flush Mount) | 11 mm / 0.43” |

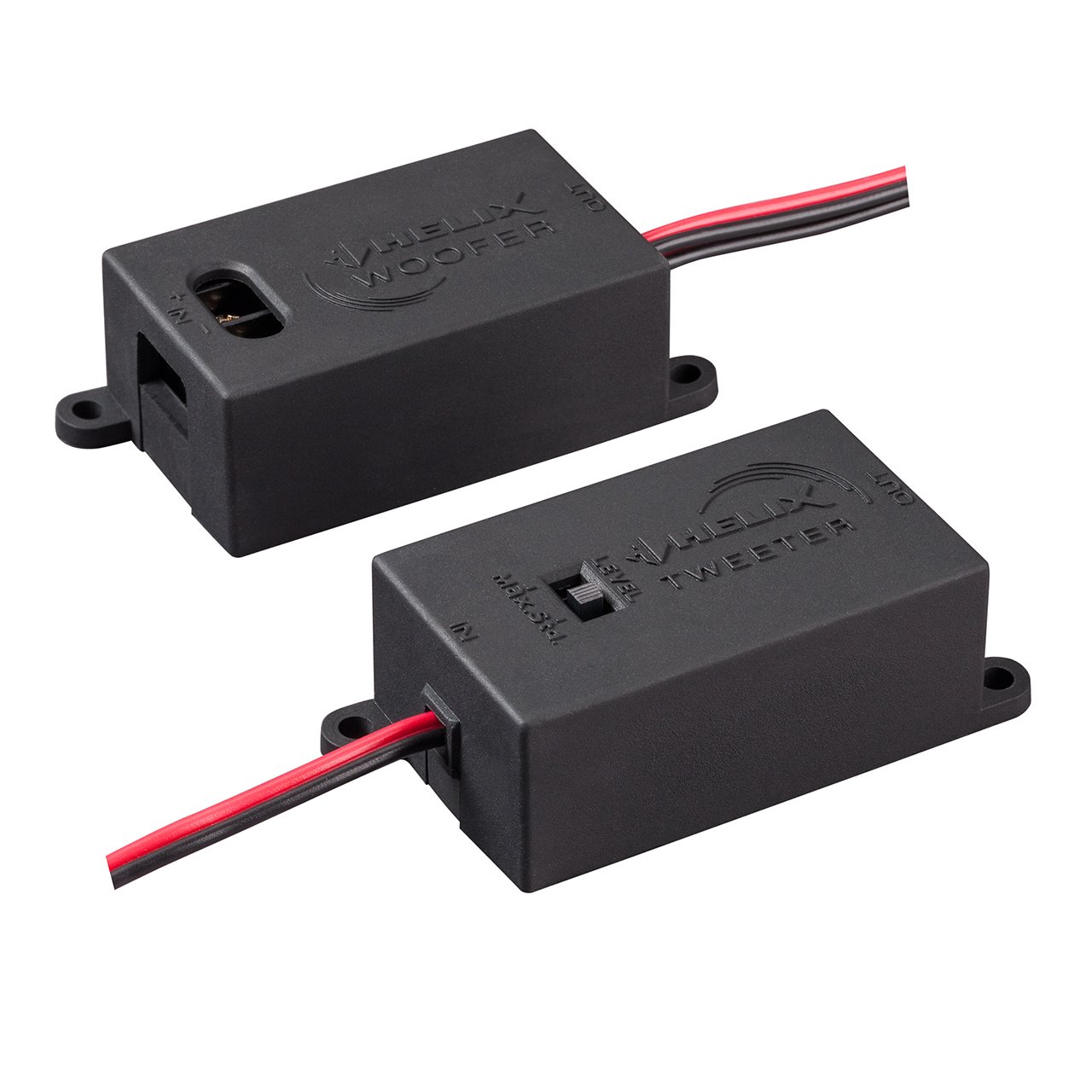

| Specification | Details |
|---|---|
| Design | Separate, 2-part compact crossover |
| Slope | Tweeter: 12 dB / Woofer: 6 dB |
| Tweeter Adjustment | 2-stage level control |
| Protection | Integrated tweeter protection |
| Advantage | Ideal for space-critical installations |
