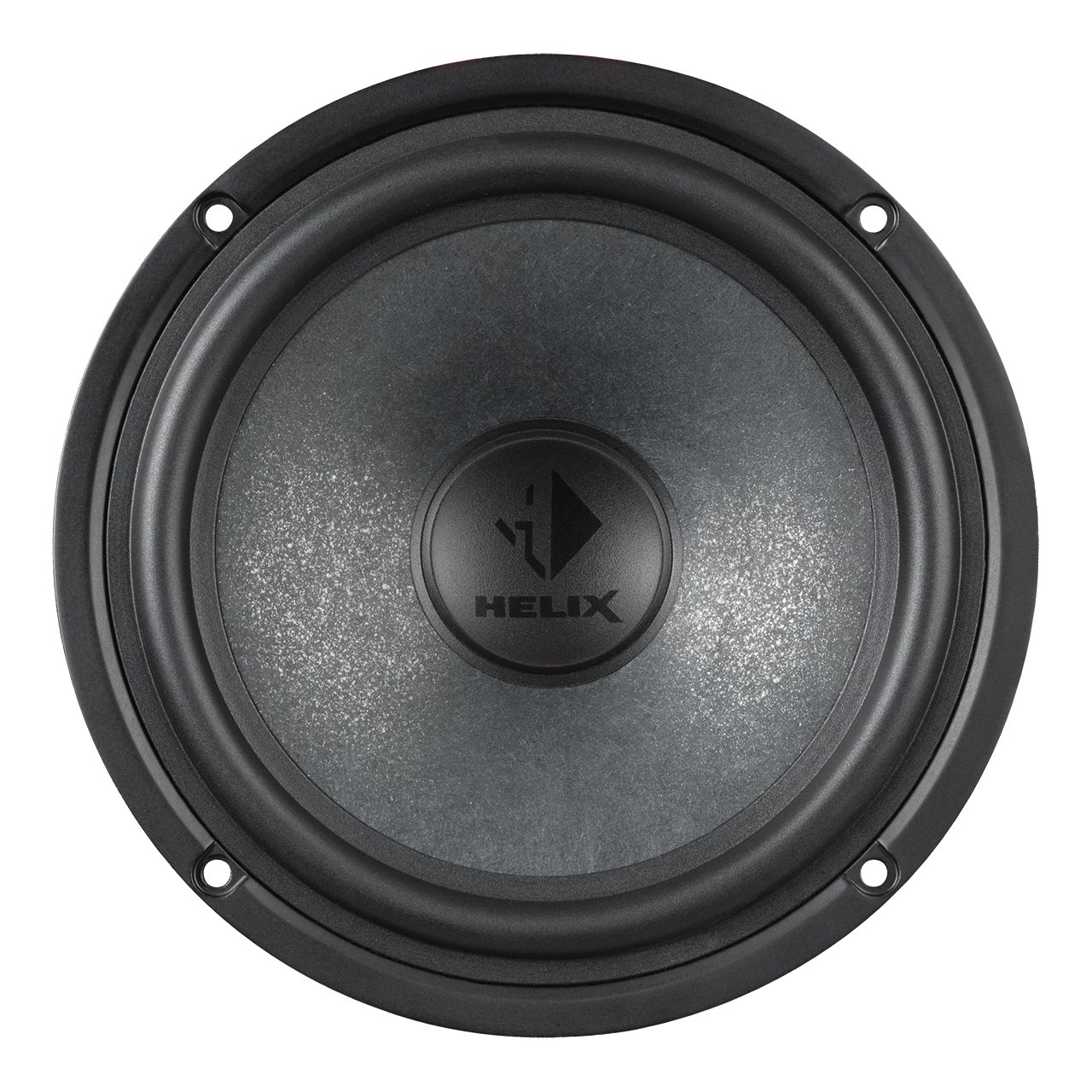

Helix PR W165 Speaker
Original price was: ₹49,999.00.₹37,499.25Current price is: ₹37,499.25.
The HELIX PR W165 premium woofer from the PURE R-Series delivers powerful kick bass, balanced midrange, and high efficiency for an immersive sound experience you can both hear and feel. Built with a stiff Mica-Paper composite cone, rigid die-cast aluminum basket, and powerful magnet system, it ensures optimized impulse response, excellent cooling, and reliable performance.
Description
The HELIX PR W165 represents excellence in the PURE R-Series, engineered for audiophiles who demand uncompromising sound quality and premium design. This 6.5” / 165 mm woofer delivers deep, punchy bass and balanced midrange reproduction, ensuring your music feels alive with detail and dynamics.
Its stiff Mica-Paper composite cone guarantees both strength and precision, while the rigid die-cast aluminum basket with aerodynamic design ensures low-turbulence airflow for optimized impulse fidelity. The additional basket ventilation holes enhance voice coil cooling, supporting impressive power handling. With its powerful magnet system, the PR W165 achieves high efficiency and linear magnetic flux for consistent performance.
To ensure durability and style, the woofer comes with dedicated HELIX grilles for cone protection.
Key Features
- 6.5” / 165 mm premium woofer with stiff Mica-Paper composite cone for powerful bass and balanced midrange
- Rigid die-cast aluminum basket with aerodynamic, low-turbulence design for precise impulse response
- Ventilated basket structure for improved coil cooling and enhanced power handling
- High-efficiency magnet system for optimized linear magnetic flux
- Includes HELIX protective grilles for added cone protection
Scope of Delivery
- 2 x HELIX PR W165 Woofers
- 2 x Protective HELIX Grilles
- 1 x Mounting Material Set
Specification
| Specification | Details |
|---|---|
| Model | HELIX PR W165 |
| Power Handling (RMS/Max.) | 100 / 200 Watts |
| Impedance (Z) | 4 Ω |
| DC Resistance (Re) | 3.1 Ω |
| Frequency Response | 40 Hz – 4,000 Hz |
| Resonance Frequency (Fs) | 57 Hz |
| Mechanical Q Factor (Qms) | 5.35 |
| Electrical Q Factor (Qes) | 0.63 |
| Total Q Factor (Qts) | 0.57 |
| Compliance (Cms) | 440 µm/N |
| Equivalent Air Volume (Vas) | 10.8 L |
| Force Factor (B*I) | 6.1 Tm |
| Sensitivity (SPL) | 91 dB @ 2.83V/1m 88 dB @ 1W/1m |
| Cone Area (Sd) | 133 cm² |
| Moving Mass (Mms) | 17.9 g |
| Cone Material | Mica-Paper Composite |
| Mechanical Resistance (Rms) | 1.19 kg/s |
| Voice Coil Diameter | 25 mm |
| Voice Coil Winding Height | 12 mm |
| Max. Linear Excursion (Xmax) | ± 3 mm |
| Outer Diameter | 166 mm / 6.54″ |
| Installation Diameter | 141 mm / 5.55″ |
| Installation Depth | 66.5 mm / 2.62″ |
