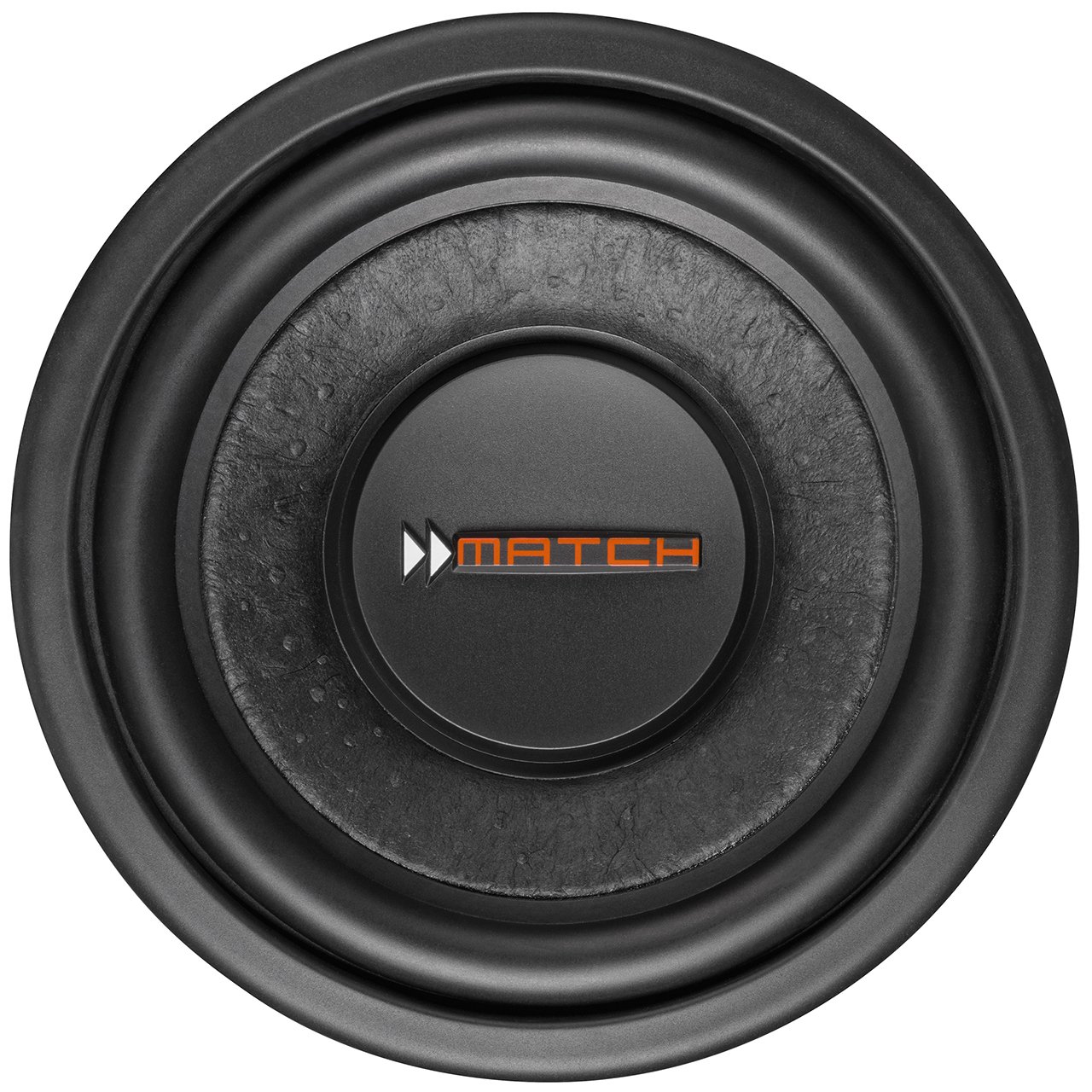

Match PP 10W-Q Subwoofer
₹24,999.00
The MATCH PP 10W-Q is a high-performance 10” Plug & Play subwoofer designed for custom vented enclosures. Featuring a quad voice coil, hand-scooped paper cone, and optimized DSP compatibility, it delivers deep, precise, and powerful bass for car audio enthusiasts who demand personalized setups with uncompromising acoustical performance.
Description
MATCH PP 10W-Q – Plug & Play 10” Subwoofer for Custom Enclosures
If none of the standard MATCH Plug & Play enclosure subs fit your vehicle’s shape or size, the MATCH PP 10W-Q offers the perfect solution. This standalone 10-inch subwoofer allows you to build a personalized enclosure while enjoying the same acoustical performance as the pre-loaded MATCH subs. Optimized for seamless integration with MATCH Plug & Play amplifiers, the PP 10W-Q ensures tight, controlled, and powerful bass response.
With its quad voice coil design, hand-scooped paper cone, double-ventilated coils, and powerful magnet system, it achieves exceptional sound pressure in compact vented enclosures. Whether you want more flexibility in your installation or a tailored sound experience, the PP 10W-Q delivers ultimate performance without compromise.
Key Features
- 10” / 250 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
- Hand-scooped paper cone for high stiffness and maximum sound pressure
- Double ventilated voice coil ensures minimal compression effects
- Powerful magnet system optimized for compact vented box designs
- Seamless integration with MATCH Plug & Play amplifiers
- Includes connection terminal for MATCH subwoofer cable (PP-SC)
Scope of Delivery
- 1 × MATCH PP 10W-Q Subwoofer
- 1 × Connection Terminal
Specification
| Category | Details |
|---|---|
| Power RMS / Max. | 300 / 600 Watts |
| Impedance (Z) | 4 x 3 Ω |
| DC Resistance (Re) | 4 x 3.0 Ω |
| Frequency Response | – |
| Resonance Frequency (Fs) | 29 Hz |
| Mechanical Q Factor (Qms) | 3.12 |
| Electrical Q Factor (Qes) | 0.40 |
| Total Q Factor (Qts) | 0.35 |
| Compliance (Cms) | 299 µm/N |
| Equivalent Air Volume (Vas) | 46 L |
| Force Factor (B*I) | 23.5 Tm |
| Efficiency (SPL 1W/1m) | 87 dB |
| Cone Area (Sd) | 333 cm² |
| Moving Mass (Mms) | 98 g |
| Cone Material | Hand-scooped paper cone |
| Mechanical Resistance (Rms) | 5.8 kg/s |
| Voice Coil Diameter | 50.8 mm |
| Voice Coil Winding Height | 21 mm |
| Max. Linear Excursion (Xmax) | ± 6.5 mm |
| Outer Diameter (Ø) | 265 mm / 10.43″ |
| Installation Diameter (Ø) | 232 mm / 9.13″ |
| Installation Depth | 128.5 mm / 5.06″ |
| Parameter | Details |
|---|---|
| Net Volume | 18 L |
| Port Diameter | 70 mm / 2.75″ |
| Port Area | 28 cm² |
| Port Length | 33 cm / 13″ |
| Port Tuning Frequency (Fb) | 39 Hz |
| Lower Limiting Frequency (-3dB) | 36 Hz |
| DSP Settings | Highpass: Self-Define; crossover 33 Hz; Q=1.3 Lowpass: Butterworth; 24 dB/oct; 80–100 Hz |
