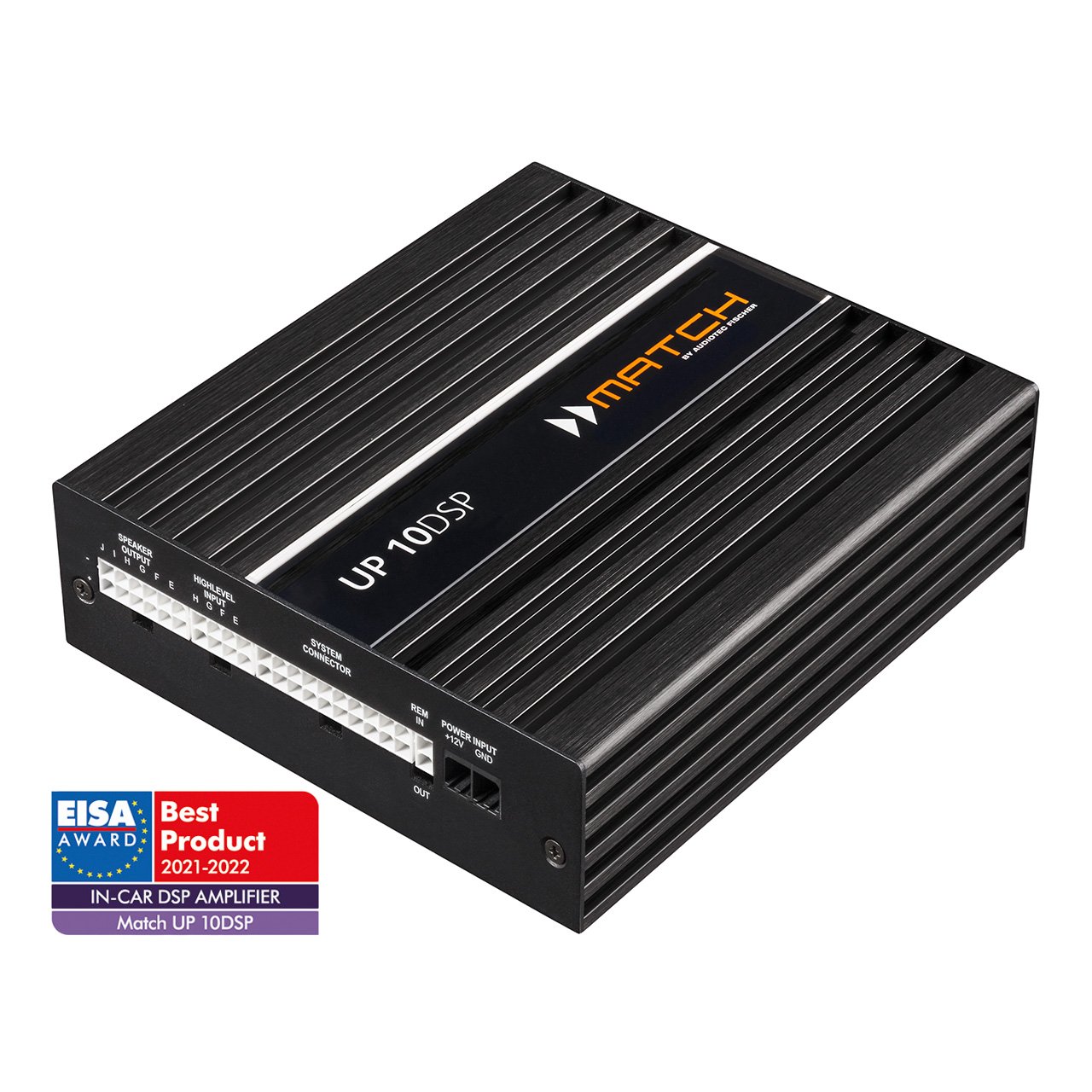

Match UP 10DSP (Upgrade DSP & Amplifier)

Brand:Match
In Stock

Original price was: ₹169,999.00.Current price is: ₹127,499.25.

The MATCH UP 10DSP is a powerful 10-channel amplifier with an integrated 11-channel DSP, designed as the ultimate upgrade for complex factory-installed sound systems. With Virtual Channel Processing, ADEP.3 technology, and Class GD amplifier design, it delivers maximum flexibility, crystal-clear sound, and seamless integration in modern vehicles.

Category:Tag: Brand:

Description

The MATCH UP 10DSP is the perfect solution for upgrading today’s premium factory-installed sound systems. Many vehicles now feature multi-channel setups that cannot be simply replaced, making this advanced DSP amplifier the ideal choice.

With 8 high-level inputs (two supporting up to 32 V), an optical input, a MATCH Extension Card (MEC) slot, and 10 powerful amplifier outputs, the UP 10DSP ensures maximum connectivity and integration. Its 11 processed DSP channels, combined with Audiotec Fischer’s Virtual Channel Processing (VCP), allow even the most complex systems to be configured with ease.

Powered by the 32 Bit ACO platform, the UP 10DSP guarantees lightning-fast communication, ultra-precise sound optimization, and innovative features such as Input Signal Analyzer (ISA), TuneEQ, RealCenter, and Augmented Bass Processing. With 8 x 65 W RMS at 4 Ohms plus 2 x 160 W at 2 Ohms for subwoofers, it delivers outstanding dynamics in a compact design.

Ideal for premium OEM upgrades, the UP 10DSP combines power, precision, and flexibility for audiophiles who demand the best sound quality from their in-car systems.

Key Features

  • Ultra-efficient 10-channel amplifier with 11-channel DSP processing
  • ACO platform (32 Bit CoProcessor) for ultra-fast setup switching & advanced DSP functions
  • 8 high-level inputs with ADEP.3 technology (2 channels up to 32 V RMS)
  • Virtual Channel Processing (VCP) for flexible signal routing
  • 64 Bit Audio DSP with 295 MHz processing power
  • DSP sound features: RealCenter, Augmented Bass Processing, StageXpander, TuneEQ
  • Class GD amplifier technology for maximum efficiency & minimal heat dissipation
  • Optical SPDIF input (12 – 96 kHz) for high-resolution sources
  • MATCH Extension Card slot (MEC) for Bluetooth, USB streaming & more
  • SCP (Smart Control Port) for optional accessories like DIRECTOR & CONDUCTOR
  • Start-Stop capability down to 6 V supply voltage
  • Power Save Mode for reduced consumption when idle
  • Compact format for easy installation in tight spaces

Scope of Delivery

  • 1 × MATCH UP 10DSP amplifier
  • 4 × Connection cables
  • 1 × Control Input-to-SCP adaptor
  • 1 × Mounting plates & material
  • 1 × Power input connector
  • 1 × USB cable
  • 1 × Instruction manual

Specification

SpecificationDetails
Output Power (RMS)

8 x 65 W @ 4Ω (Channels A–H)

2 x 90 W @ 4Ω (Subwoofer I–J)

2 x 160 W @ 2Ω (Subwoofer I–J)

Amplifier TechnologyClass GD
Inputs

8 x Highlevel Speaker

1 x Optical SPDIF (12 – 96 kHz)

1 x Remote In

Outputs

10 x Speaker

1 x RCA/Cinch (3 V)

1 x Remote Out

DSP Processor64 Bit Fixed Point, 295 MHz (1.2B MAC/s)
DSP Resolution48 kHz Sampling, BurrBrown A/D & D/A converters
Signal-to-Noise Ratio105 dB (Digital In), 103 dB (Analog In)
THD (Distortion)< 0.03 %
Frequency Response10 Hz – 22 kHz
Input Sensitivity

Channels A–F: 4–16 V

Channels G–H: 4–16 V or 8–32 V

Input Impedance9–33 Ω (with ADEP.3)
Damping Factor> 100
Operating Voltage10.5 – 18 V (down to 6 V for 5 sec)
Fuse Rating2 x 25 A LP-Mini (APS)
Idle Current500 mA
Max. Remote Output Current500 mA
Operating Temperature-40 °C to +70 °C
Dimensions (H x W x D)46 x 145 x 163 mm / 1.81 x 5.71 x 6.42”
