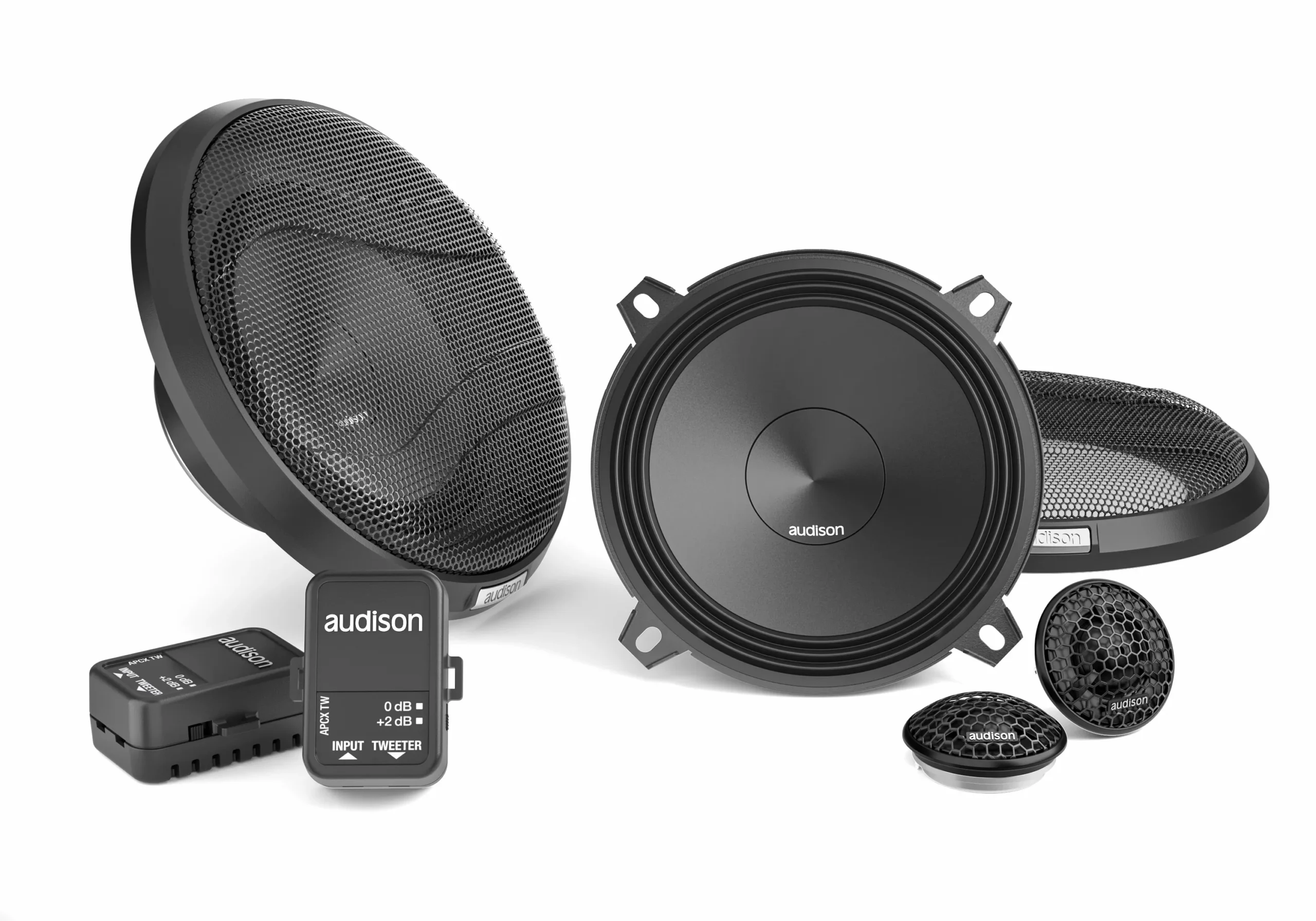

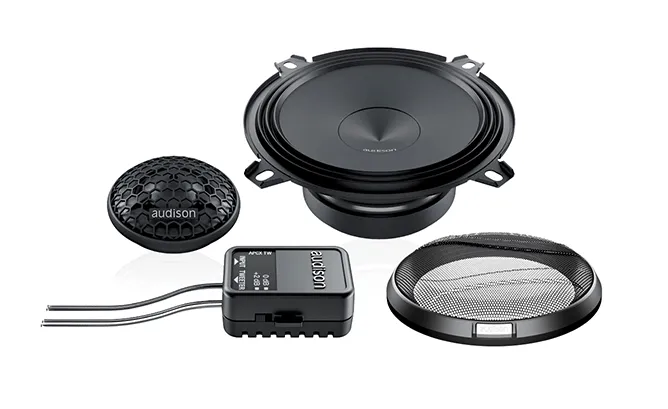

Audison Prima APK 130 Speaker Kit

The Audison Prima APK 130 2-way speaker system is designed for premium sound performance in compact OEM spaces. Combining the AP 1 tweeter and AP 5 woofer, the system delivers detailed highs and tight, controlled low-frequency response—making it an ideal upgrade for factory speaker replacements.

The included APCX TW passive crossover features a two-stage attenuation switch (+2 dB / 0 dB), allowing the tweeter’s output to be fine-tuned based on installation location—whether placed behind restrictive OEM grilles or mounted on A-pillars. Both drivers are engineered using FEM simulation and Klippel R&D technologies, ensuring optimized cone motion and acoustic accuracy.

The AP 5 woofer is built with a 32 mm pure copper voice coil, Triple Wave TPU surround, and a water-repellent treated paper cone, offering reliable performance even at high power levels. With reduced mounting depth and high-current fast-on terminals, the APK 130 supports flexible, quick, and secure OEM-style installations.

Key Features

AP 1 Tweeter

• 26 mm diaphragm with wide-roll surround for enhanced sensitivity and reduced resonance frequency.
• Integrated acoustic lens corrects frequency anomalies in the 10–13 kHz range caused by OEM grilles.
• Compact APCX TW crossover with +2 dB / 0 dB switch for tuning high-frequency output to installation needs.
• Fast-on connectors support OEM compliance and error-free installation.

AP 5 Woofer

• 32 mm pure copper voice coil provides high power handling and low-frequency control.
• Water-repellent paper cone designed using FEM simulation and Klippel Scan Vibrometer.
• Triple Wave TPU surround ensures maximum excursion linearity and clarity.
• Shallow mounting depth and compact coated basket allow seamless OEM fitment.
• High-current fast-on terminals with dual contacts and temperature-resistant covers for safety and quick connection.

OEM Integration & Engineering

• Dedicated crossover and fast-on terminals designed for factory-grade fitment.
• Developed using the KLIPPEL suite for precision tuning, low distortion, and consistent acoustic output.
