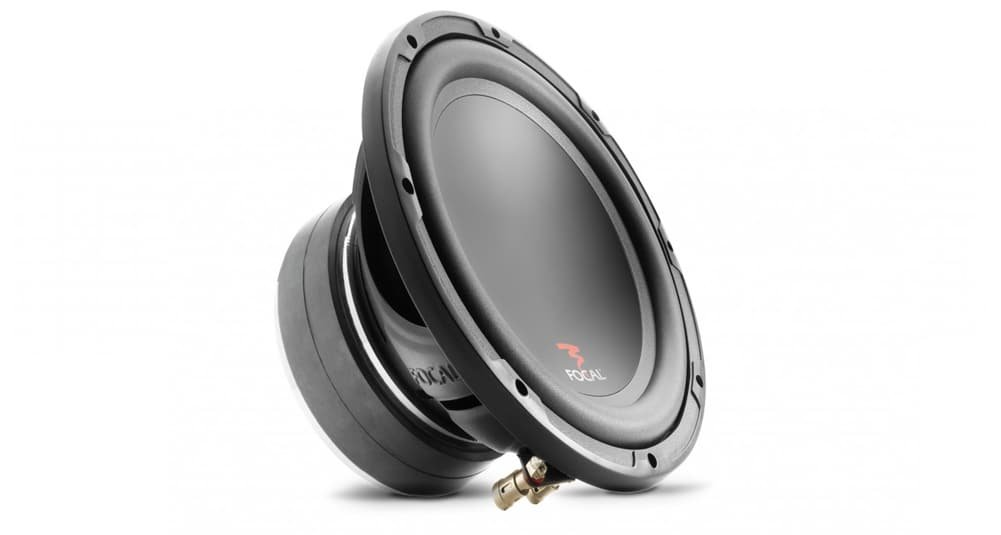

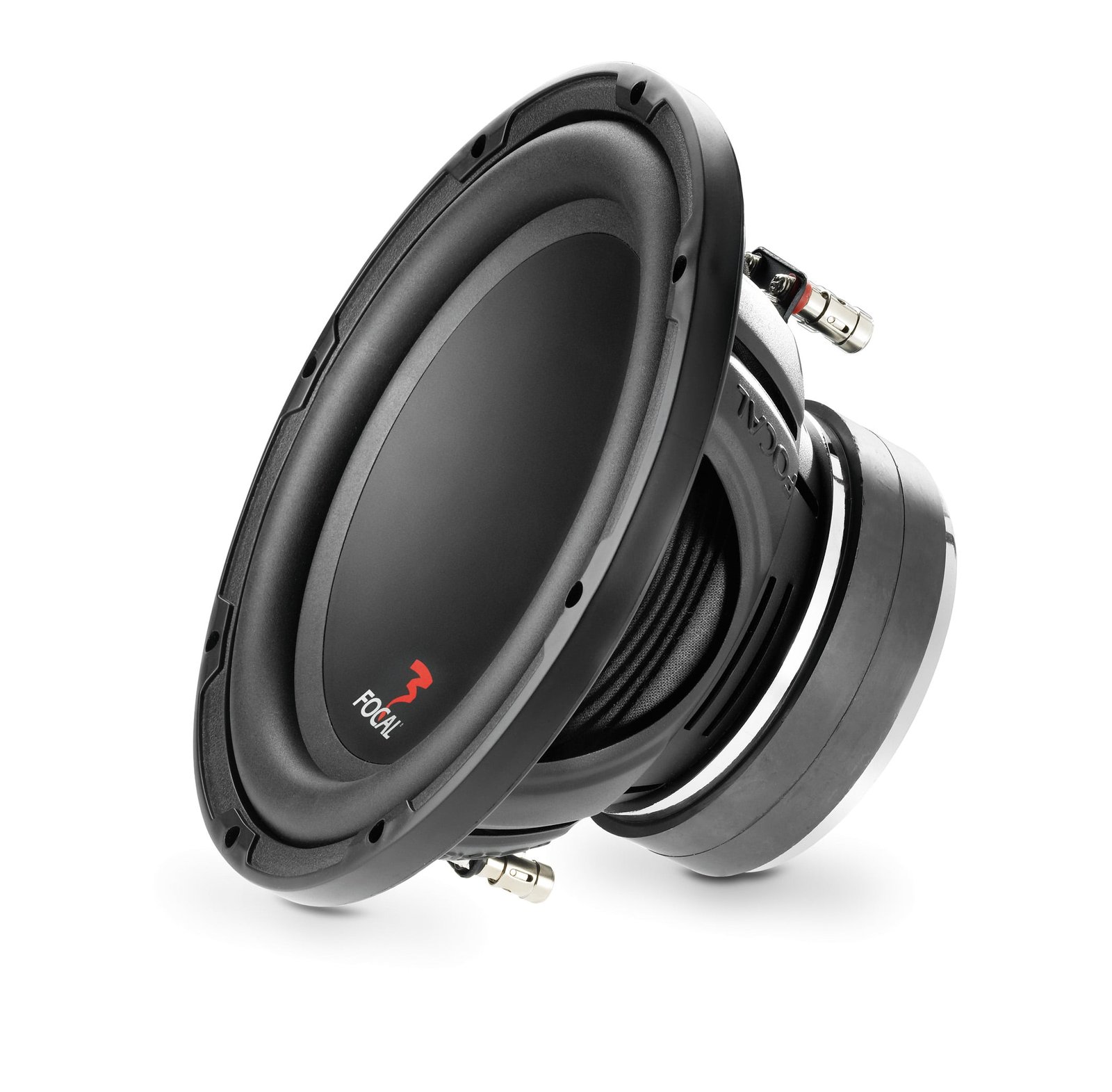

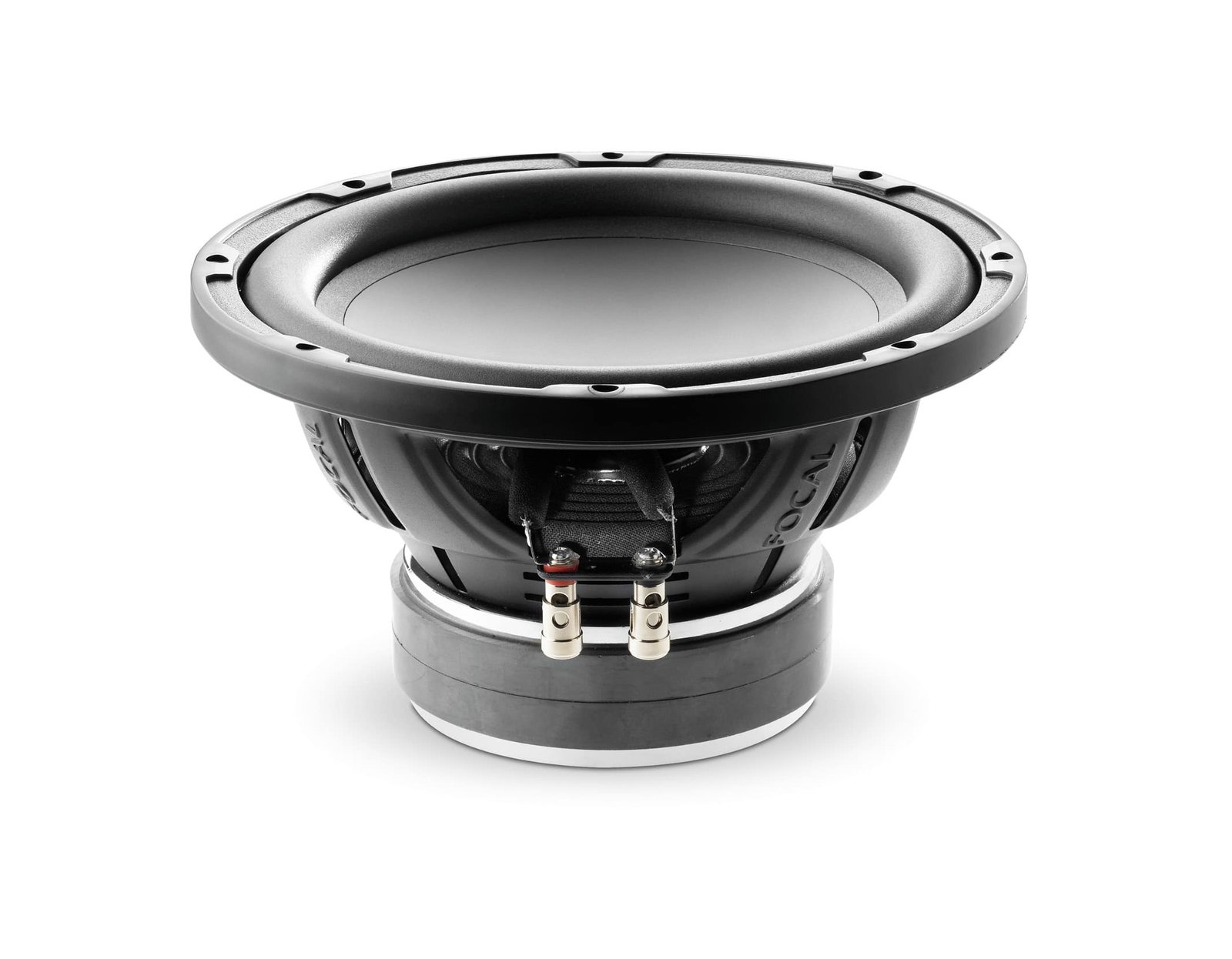

P 10 DB Dual Voice Coil Subwoofer
Experience thunderous, precision bass with the P 10 DB subwoofer. This versatile 10″ powerhouse delivers room-filling low frequencies with exceptional clarity and impact. Featuring a dual 4-ohm voice coil design and robust ferrite magnet structure, this subwoofer provides installation flexibility while handling up to 500 watts of power. Compatible with both sealed and vented enclosures, it combines high sensitivity with deep frequency response to transform your audio system. Perfect for music enthusiasts seeking authoritative bass reproduction without compromising sound quality.
Description
What Makes The Difference
Advantages:
- For sealed or vented box
- High sensitivity
- Easy amplifier connection (2 x 4 Ohms dual voice-coil)
- High efficiency (5-11/16″ (145mm) dual ferrite)
- Spider decompression(Voice-coil ventilation)
- Excellent reliability (Butyl Surround)
Technical Characteristics
- Diameter: 10″ (250mm)
- Voice-coil diameter: 2″ (50mm)
- Voice-coil height: 1″ (25mm)
- Magnet: 511⁄16” (145mm)
- Frequency response: 42Hz – 500kHz
- Impedance: 2 x 4 Ohms
- Max. power: 500 Watts
- Nom. power: 250 Watts rms
- Sensitivity (2.83V/1m): 90.9dB
Specification
Nominal Power
250W RMS
Maximum Power
500 W
Sensitivity (2,83V/1m)
90.9dB
Cone
Polypropylene
Surround
Butyl
Nom. impedance
4 Ohms
DC Resistance
2×2.4 Ohms
VC diameter
50mm (2″)
VC height
25mm (1″)
Former
Kapton
Layers
4
Wire
Copper
Inductance
0.27mH
Xmax
8.5mm 0(5/16)“
Magnet d x h
145x32mm (511/16
x 11/4)”
Magnet Weight
1600g (3.53Ib)
Flux Density
–
Gap height
8mm 0(5/16)“
Net Weight
4900g 10.8Ib
Fs
27.46Hz
Vas
40.72 I
Qts
0.431
Qes
0.47
Qms
5.21
Re
1.7 Ohm
Sd
346.36 cm2
Cas
2.90E-7m m5/N
Mas
115.87 kg/m4
Ras
3837.08 Ohms.ac
Cms
2.42E-4m/N
Mms
139g
Rms
4.603kg/s
Ces
1556.61mF
Les
21.58mH
Res
19.4 Ohms
BI
9.45 N/A
SPL
84.38 dB/W/m
Load
Volume
Port Diameter
Port Length
Vented
35
8 (31/8“)
20 (77/8“)
Vented
45
8 (31/8“)
22 (82/3“)
Vented
60
8 (31/8“)
17 (611/16“)
Load
Volume
F-3(Hz)
Ql
Sealed
15
46.2
0.83
Sealed
25
45.1
0.7
Sealed
35
45.6
0.6
