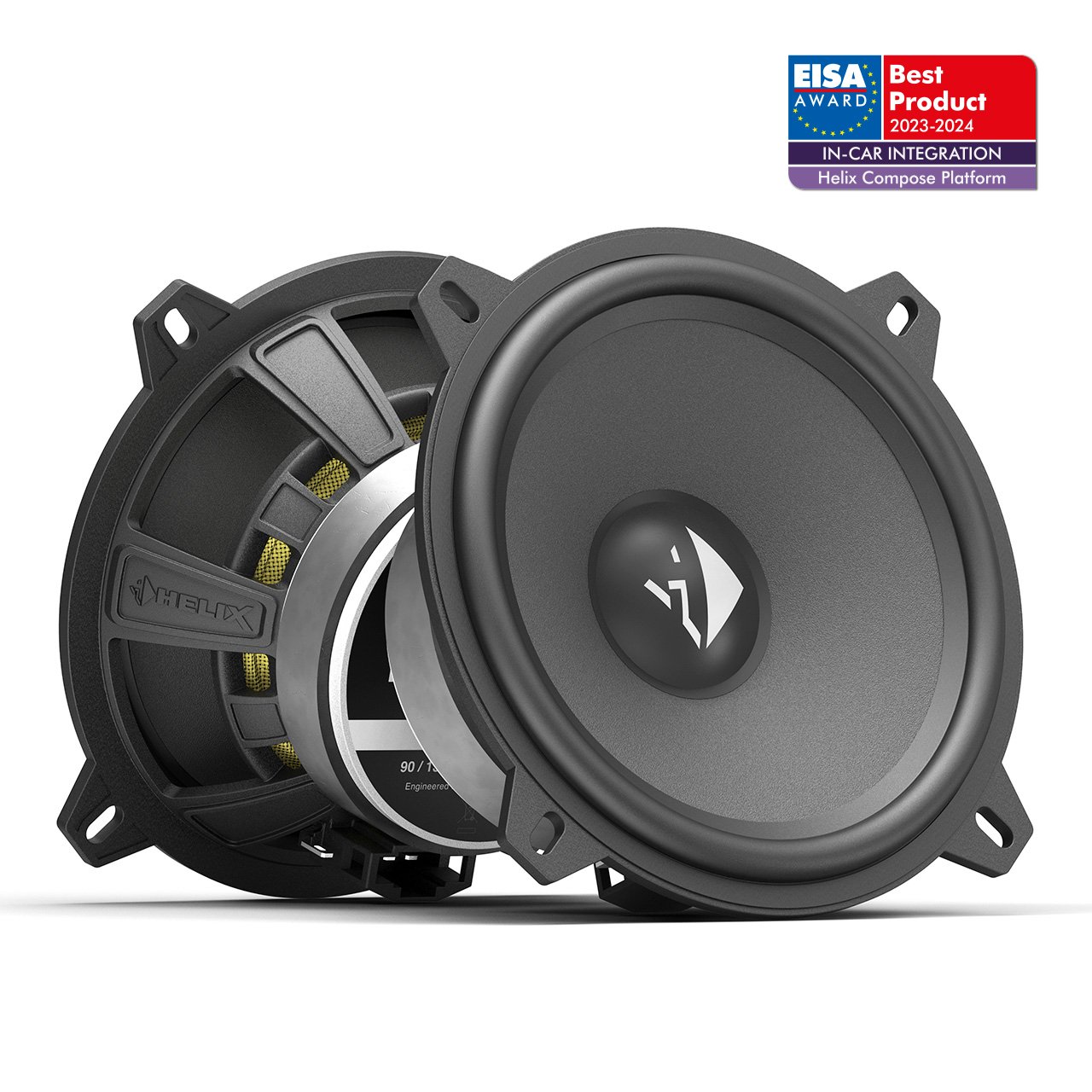

HELIX COMPOSE Ci3 W130-S3

Brand:Helix
In Stock

₹19,999.00 Original price was: ₹19,999.00.₹14,999.25Current price is: ₹14,999.25.

HELIX Ci3 W130-S3 – 5.25” / 130 mm performance midbass speaker from the HELIX COMPOSE series, featuring Cenosphere-coated paper cone, high-efficiency 3 Ohm technology, and ProConnect terminals for secure and professional installation. Perfect for clear, detailed midbass reproduction in any vehicle.

Wishlist
Add to Compare
Category:SpeakersTag:Helix Compose Series Brand: Helix
Share:

Description

The HELIX Ci3 W130-S3 Midbass Speaker is part of the HELIX COMPOSE i3 series, developed with the motto “developed inside the vehicle, for the vehicle.” This series combines high-quality materials, innovative technologies, and intelligent engineering to deliver high efficiency, exceptional sound quality, and powerful dynamics for car audio systems of any size.

Price-Performance Highlight

  • Part of the i3 series, offering superior sound quality at a competitive price.
  • Implements mechanical technologies from the i7 series for added reliability and practical benefits.
  • Impedance matched for optimal compatibility with HELIX and MATCH amplifiers, ensuring maximum performance.

High Efficiency & Sound Quality

  • 3 Ohm technology provides maximum amplifier output and enhanced sound pressure.
  • Cenosphere-coated paper cone with hollow spheres improves stiffness and damping, delivering precise midbass reproduction.
  • High-tech polymer basket reinforced with glass beads ensures rigidity, minimal resonance, and thermal resistance, allowing compact installation in tight spaces.

Professional Integration

  • ProConnect terminal: Automotive-grade connector that supports conventional speaker cables or fast, secure connection via WireKits, with reverse polarity protection.
  • WireKits: Plug-and-play connection to the original wiring harness for non-destructive and safe integration.

Key Features

  • 5.25” / 130 mm performance midbass speaker with Cenosphere-coated paper cone.
  • High-efficiency 3 Ohm technology for optimized amplifier output.
  • Special rubber surround for high linear cone excursion.
  • Polyurethane dustcap for optimized upper midrange response.
  • 1” / 25 mm voice coil for high power handling.
  • ProConnect automotive-grade terminal for secure, fail-safe installation.
  • Powerful magnet system for high efficiency and optimum impulse response.
  • Compatible with optionally available WireKits for non-destructive integration.

Compatibility

  • WireKits

Scope of Delivery

  • 2 x Ci3 W130-S3 Midbass Speakers
  • 2 x Mounting Material

Specification

ParameterSpecification
Power Handling RMS / Max90 / 135 Watts
Impedance (Z)3 Ω
DC Resistance (Re)3.1 Ω
Frequency Response80 Hz – 4,000 Hz
Resonance Frequency (Fs)89 Hz
Mechanical Q Factor (Qms)3.11
Electrical Q Factor (Qes)0.97
Total Q Factor (Qts)0.74
Compliance (Cms)350 µm/N
Equivalent Air Volume (Vas)4.6 L
Force Factor (B*l)4.0 Tm
Sensitivity (SPL)

91 dB @ 2.83 V / 1m

87 dB @ 1W / 1m

Cone Area (Sd)98 cm²
Moving Mass (Mms)9.1 g
Cone MaterialPaper with Cenosphere coating
Mechanical Resistance (Rms)1.65 kg/s
Voice Coil Diameter25 mm
Voice Coil Winding Height10.5 mm
Max Linear Excursion (Xmax)+/- 3.2 mm
Outer Diameter130 mm / 5.12”
Installation Diameter116.5 mm / 4.59”
Installation Depth55.4 mm / 2.18”
