Helix IK S8 SVC2 (IK Series)
Original price was: ₹27,999.00.₹20,999.25Current price is: ₹20,999.25.

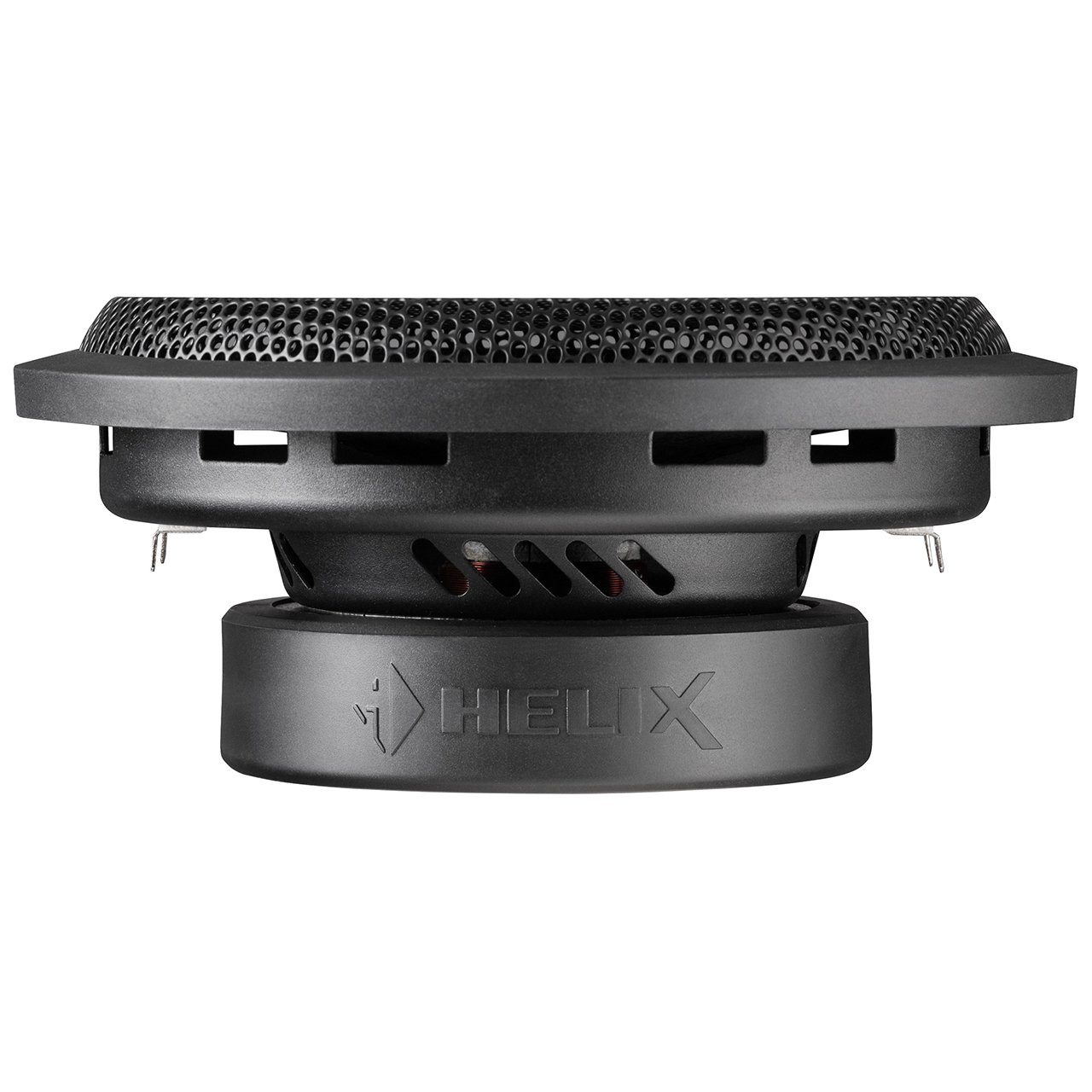

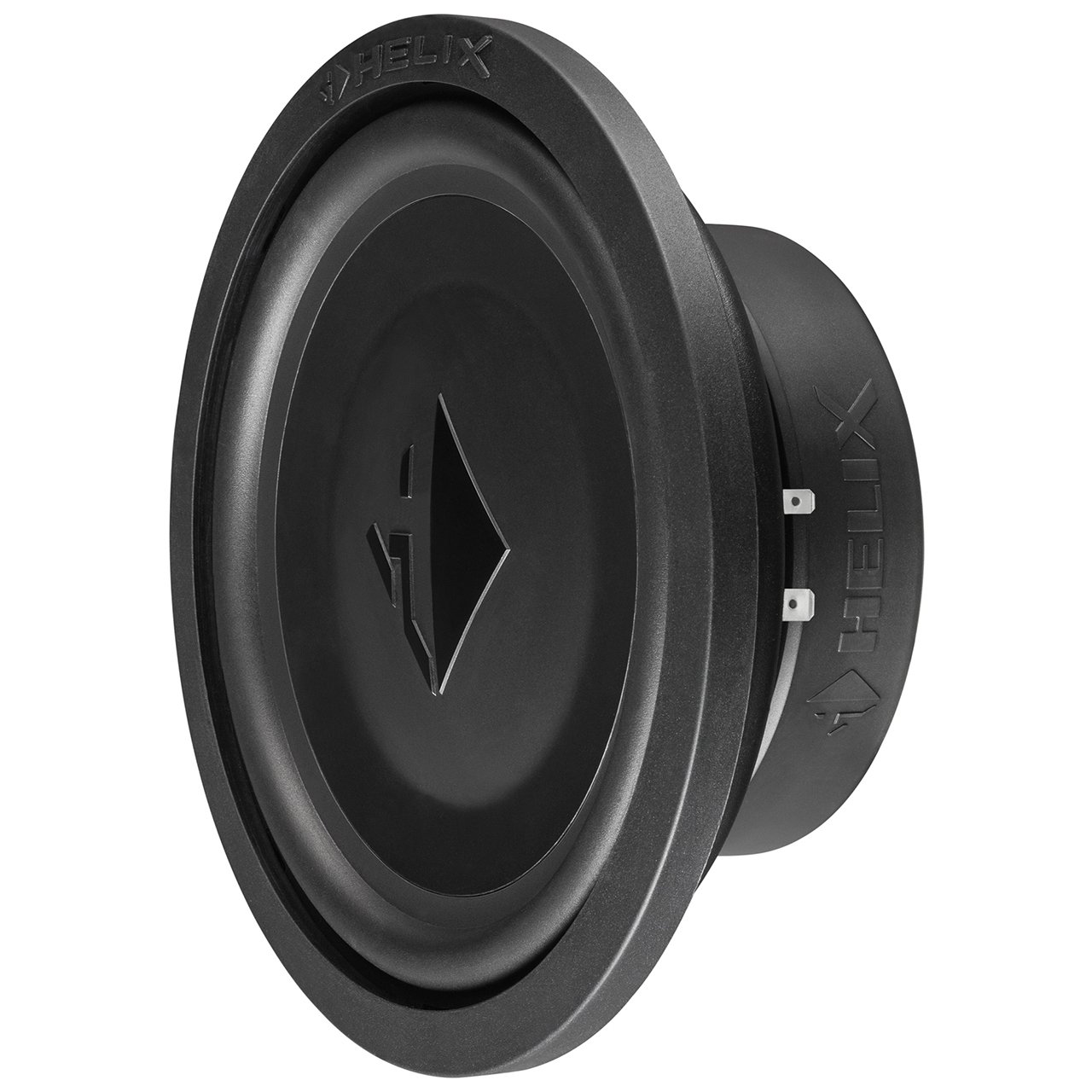

HELIX IK S8 SVC2 – Compact 8″ Shallow-Mount Subwoofer
The HELIX IK S8 SVC2 is an 8-inch shallow subwoofer with a 1 x 2 Ohms single voice coil, designed for compact enclosures and powerful bass performance. With its sandwich paper cone, long-excursion surround, and only 79.5 mm installation depth, it delivers impressive low-frequency output in tight spaces.
Description
HELIX IK S8 SVC2 – Slim Subwoofer, Deep Bass
The HELIX IK S8 SVC2 is a space-saving 8-inch shallow-mount subwoofer that delivers impressive bass without compromise. With its extremely low installation depth of 79.5 mm, this subwoofer is perfect for flat and compact enclosure designs, making it ideal for vehicles with limited installation space.
Equipped with a single 2 Ohms voice coil, the IK S8 SVC2 provides a straightforward yet powerful configuration for amplifiers. Its stiff sandwich paper cone and heavy-duty drive system ensure distortion-free bass reproduction, while the threaded magnet system allows secure mounting to the back panel of the enclosure, reducing unwanted vibrations.
Built for both performance and durability, this subwoofer features a long-excursion rubber surround, a protective HELIX magnet cover, and includes all essential accessories for installation. For DIY enthusiasts, HELIX also provides recommended sealed and vented enclosure setups with detailed DSP settings for optimal performance.
Key Features
- Ultra-low installation depth (79.5 mm) – ideal for compact and shallow enclosures
- 1 x 2 Ohms single voice coil – simple and efficient configuration
- Rigid sandwich paper cone for accurate bass performance
- Threaded magnet system – direct back-panel mounting reduces enclosure vibrations
- Long-excursion rubber surround for superior mechanical reliability
- Protective HELIX magnet cover with embossed branding
- Installation-ready – includes grille, gasket, and enclosure terminal
Scope of Delivery
- 1 x HELIX IK S8 SVC2 Subwoofer

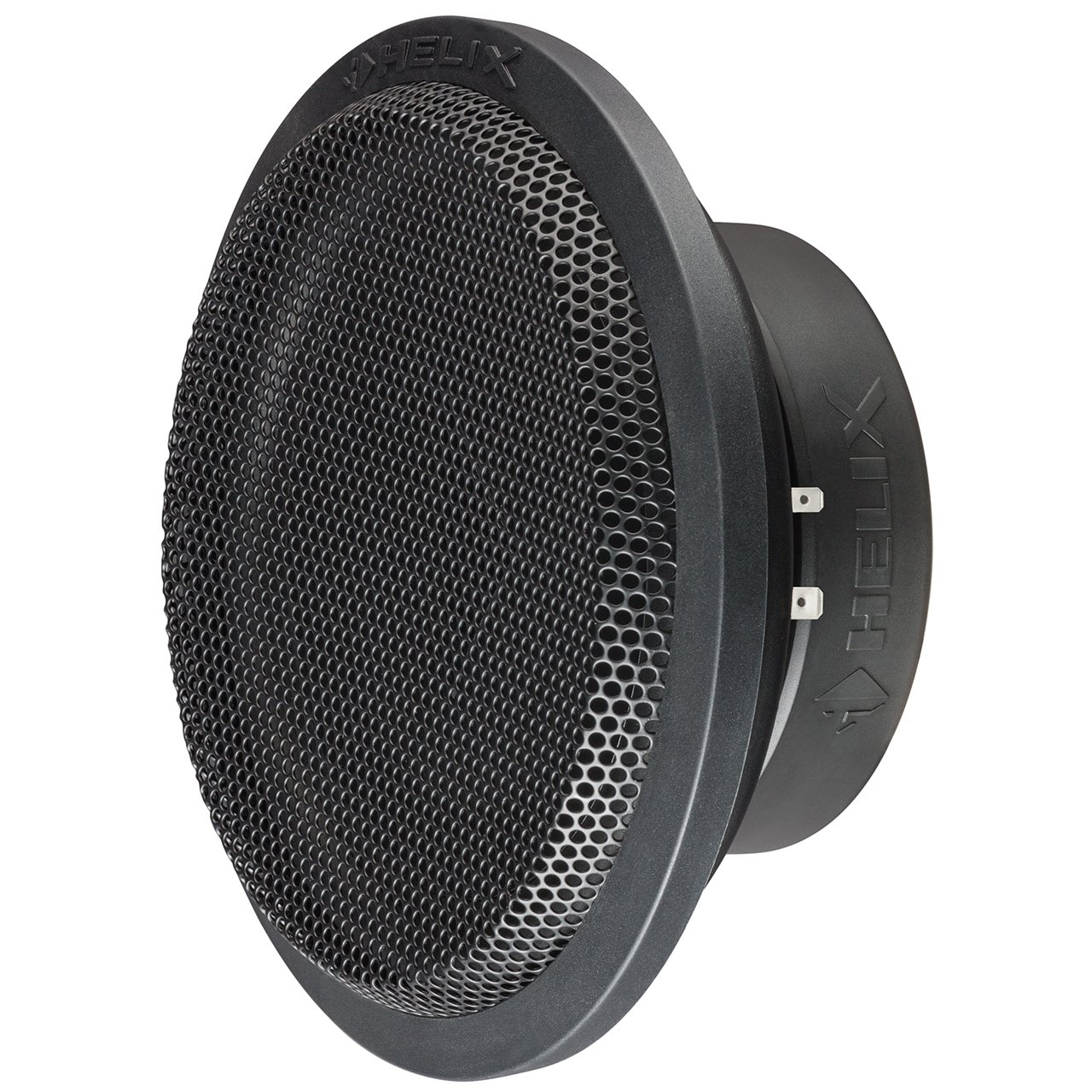

- 1 x Protective Grille
- 1 x Gasket
- 1 x Enclosure Connecting Terminal
- 1 x Data Sheet
Specification
| Specification | Details |
|---|---|
| Model | HELIX IK S8 SVC2 – 1 x 2 Ohms |
| Power Handling (RMS / Max.) | 300 / 600 Watts |
| Impedance | 1 x 2 Ω |
| DC Resistance (Re) | 2.0 Ω |
| Resonance Frequency (Fs) | 43 Hz |
| Mechanical Q Factor (Qms) | 7.79 |
| Electrical Q Factor (Qes) | 0.53 |
| Total Q Factor (Qts) | 0.50 |
| Compliance (Cms) | 170 μm/N |
| Equivalent Air Volume (Vas) | 11 L |
| Force Factor (B*I) | 9.1 Tm |
| Sensitivity | 91.0 dB @ 2.83V / 1m 85.0 dB @ 1W / 1m |
| Cone Area (Sd) | 222 cm² |
| Moving Mass (Mms) | 81 g |
| Cone Material | Sandwich paper cone |
| Mechanical Resistance (Rms) | 2.8 kg/s |
| Voice Coil Diameter | 50.8 mm |
| Voice Coil Winding Height | 19 mm |
| Max. Linear Excursion (Xmax) | ± 6.0 mm |
| Outer Diameter | 213.4 mm / 8.40″ |
| Installation Diameter | 180.4 mm / 7.10″ |
| Installation Depth | 79.5 mm / 3.13″ |
| Parameter | Details |
|---|---|
| Net Volume | 10 L |
| Lower Limiting Frequency (-3dB) | 46 Hz |
| DSP Settings | Highpass: 46 Hz / Q = 1.5 EQ Filter: 100 Hz / Q = 1.0 / -2.5 dB |
| Parameter | Details |
|---|---|
| Net Volume | 10 L |
| Port Diameter | 60 mm / 2.36″ |
| Port Area | 28 cm² |
| Port Length | 42 cm / 16.5″ (angled port) |
| Port Tuning Frequency (Fb) | 39 Hz |
| Lower Limiting Frequency (-3dB) | 45 Hz |
| DSP Settings | Highpass: 40 Hz / Q = 1.2 EQ Filter: 100 Hz / Q = 0.9 / -2 dB |
